MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-A0200001-200104

main87810-14170-B0199807

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030199807

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-A1200104

main87834-20080-B2199807

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-44010199807-200104

main87931-44210200208

main87931-46060200104

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-44010199807-200104

main87961-44210200208

main87961-46060200104

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-44070199807-200104

main87910-44080199807-200104

main87910-44170200104

main87910-44180200104

main87910-44200200208

main87910-44210200208

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-44070199807-200104

main87940-44080199807-200104

main87940-44170200104

main87940-44180200104

main87940-44200200208

main87940-44210200208

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9010906337

main90109-06337

9015450005

main90154-50005

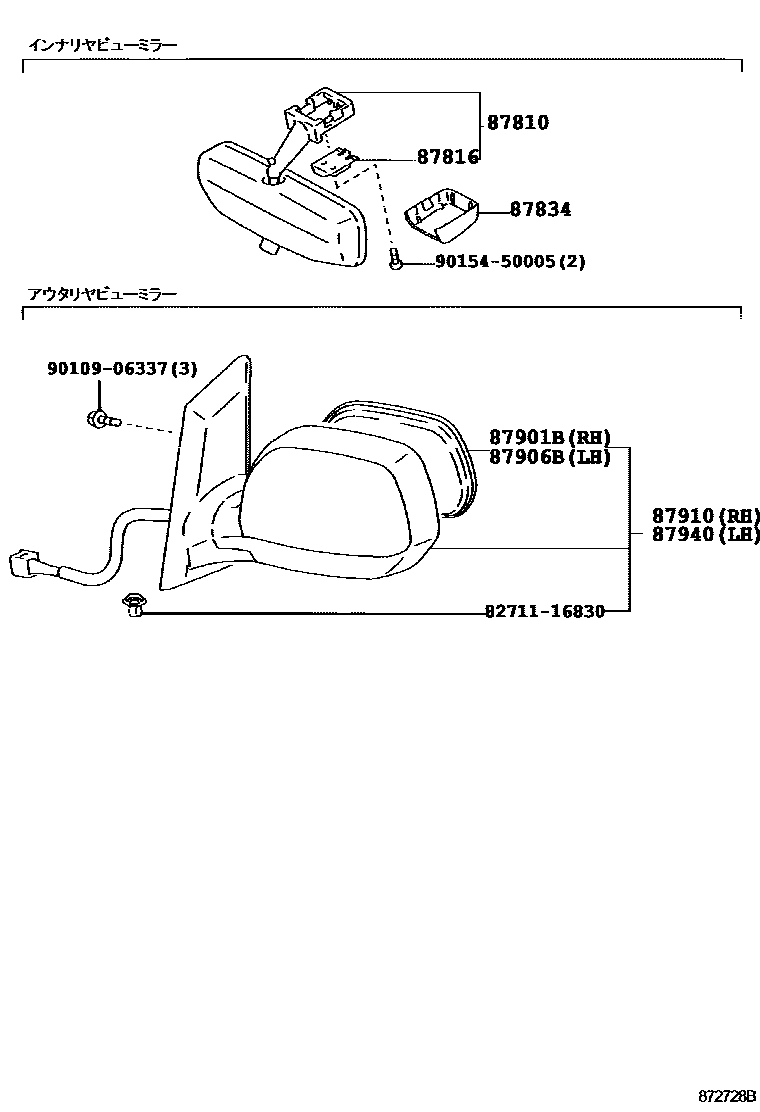

10 parts on this diagram · 1 diagram in section
