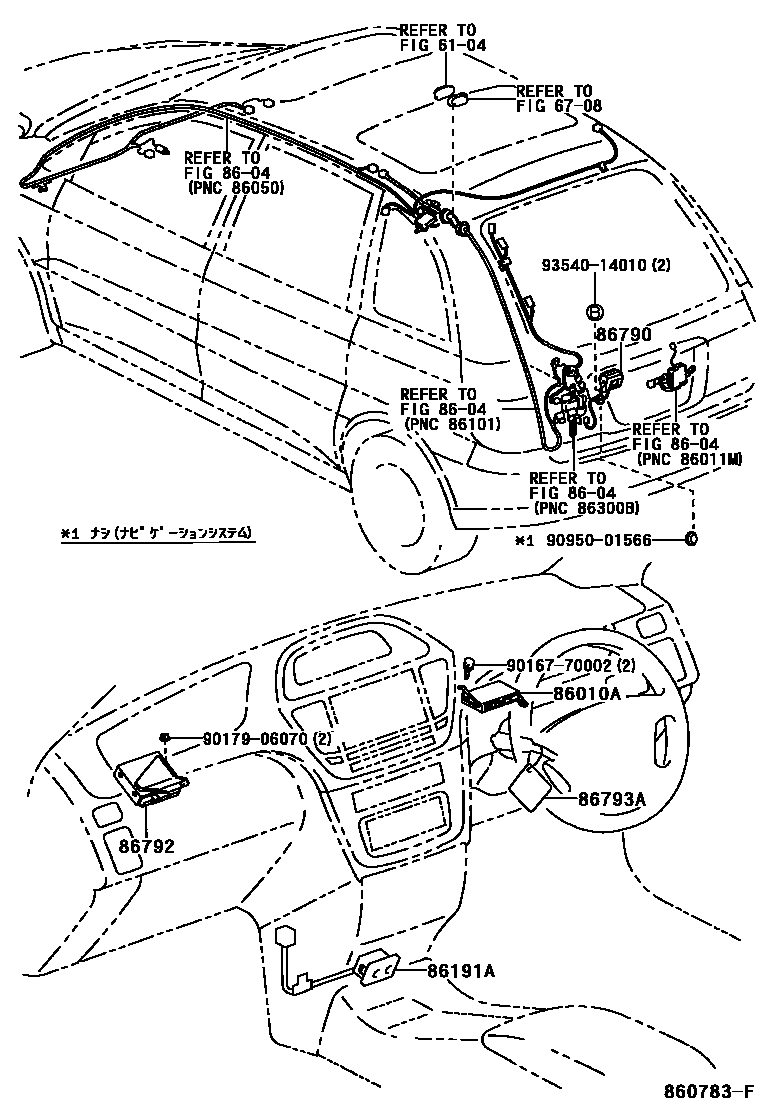

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

86010ATUNER ASSY, TELEVISION

main86010-44010iSXN1#199807-200104

8604ANTENNA

→ Go to FIG 86-04

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-44010iACN1#,SXN1#199807

86790CAMERA ASSY, TELEVISION

main86790-44030iSXN1#..STD199807-200104

main86790-44040iSXN1#..SU199906-200104

main86790-44080iACN1#,SXN15200104

86792CONTROLLER, TELEVISION CAMERA

main86792-44020iSXN1#199807-200104

main86792-44060iACN1#,SXN15..STD200104

main86792-44070iACN1#,SXN15..SU200104

86793ALABEL, TELEVISION CAMERA INFORMATION

main86793-13010iSXN1#199807-200104

9016770002

main90167-70002

9017906070

main90179-06070

9095001566

main90950-01566

9354014010

main93540-14010

12 parts on this diagram · 2 diagrams in section
