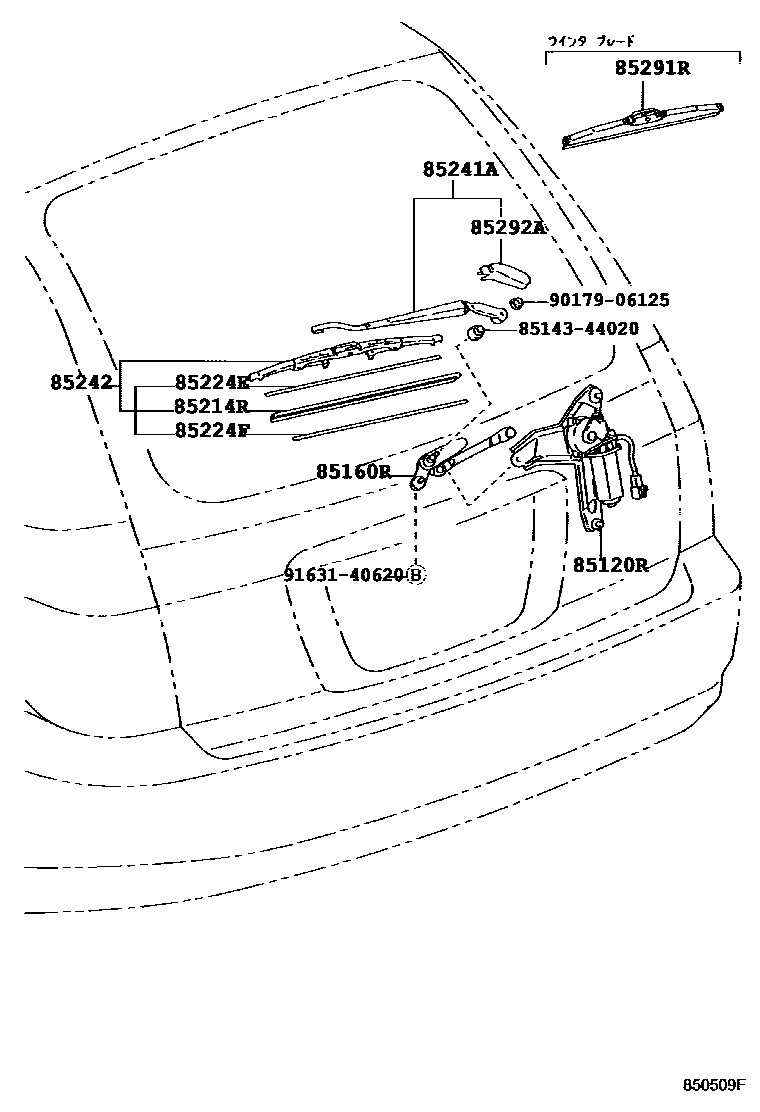

REAR WIPER

0001 1 0002 1

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85080-44010iACN1#,SXN1#199807

85160RLINK ASSY, REAR WIPER

main85170-44010iACN1#,SXN1#199807

85214RRUBBER, REAR WIPER

main85214-26010iACN1#,SXN1#199807

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-20380iSXN1#199807-200104

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-20380iSXN1#199807-200104

85241AARM, REAR WIPER

main85241-44030iACN1#,SXN1#199807

85242BLADE, RR WIPER

main85242-26020iACN1#200208

main85242-44020iACN10,SXN1#199807-200208

85291RBLADE,REAR WIPER, WINTER

main85291-33050iACN1#,SXN15200204

main85291-60020iACN10,SXN1#199807-200204

85292ACAP, REAR WIPER ARM HEAD

main85292-44020iACN1#,SXN1#199807

8514344020WIRING, WINDSHIELD WIPER MOTOR LEAD

main85143-44020

9017906125

main90179-06125

9163140620

main91631-40620

12 parts on this diagram · 2 diagrams in section
