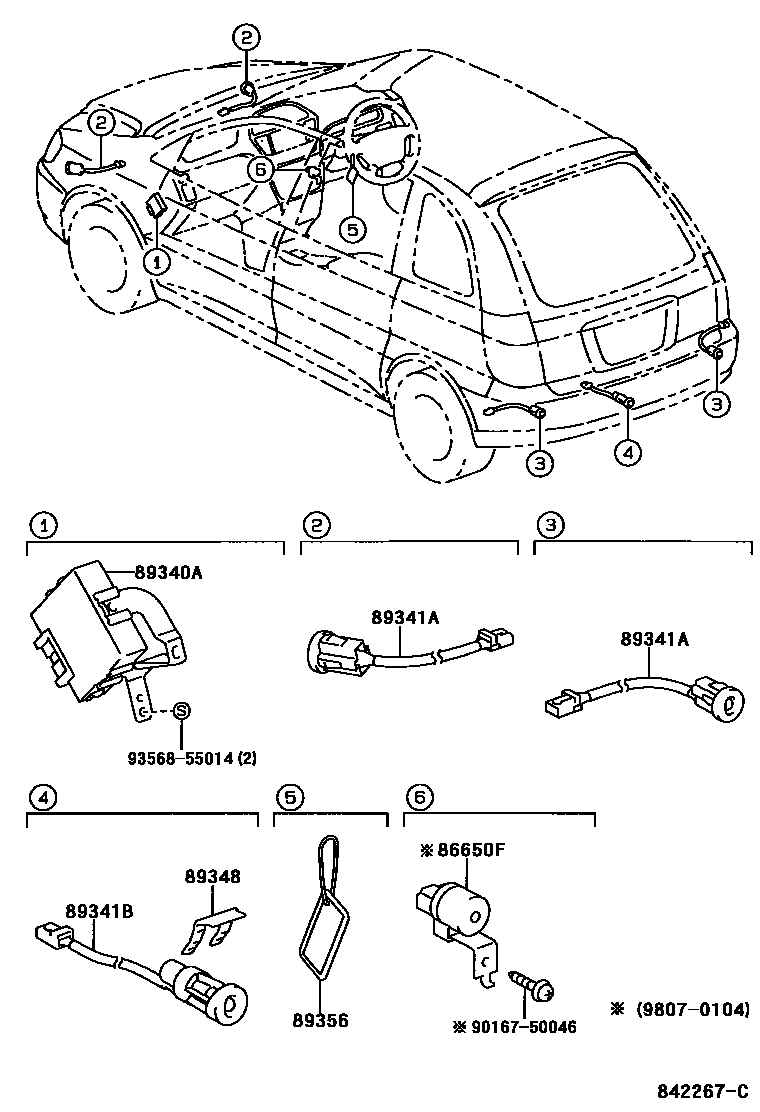

CLEARANCE & BACK SONAR

86650FBUZZER ASSY

main86650-28040iSXN1#199807-200104

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-44030iACN1#,SXN1#199807

89341ASENSOR, ULTRASONIC, NO.1

main89341-44060×4iSXN1#..STD199807-199908

main89341-44090×2iACN1#,SXN15..STD200104

main89341-44100×2iACN1#,SXN1#..SU199906

main89341-44120×2iACN1#,SXN15200104

89341BSENSOR, ULTRASONIC, NO.2

main89341-44070iACN1#,SXN1#..STD199807

main89341-44110iACN1#,SXN1#..SU199906

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-26030iACN1#,SXN1#199807

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-44010iACN1#,SXN1#199807

9016750046

main90167-50046

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
