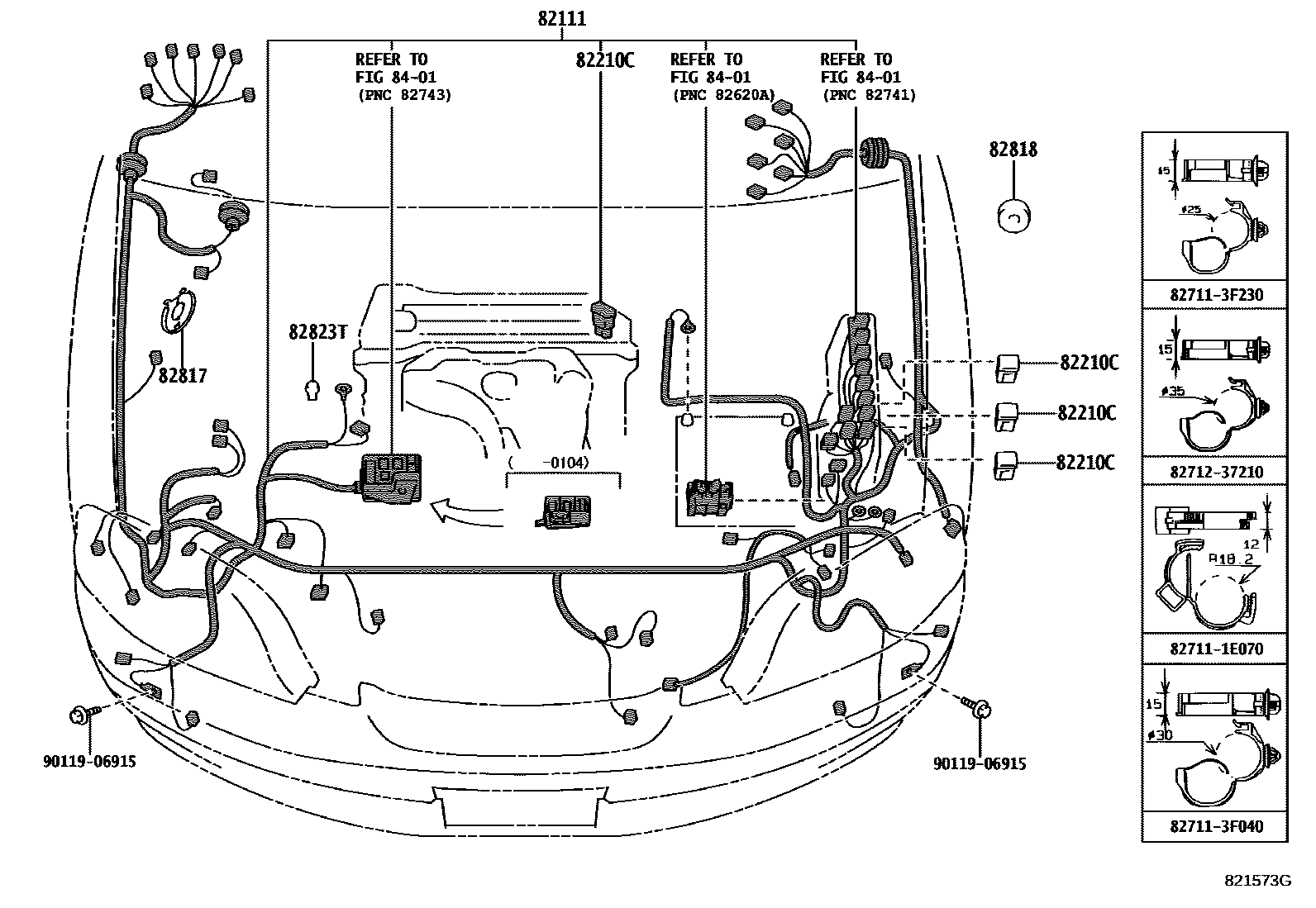

82111WIRE, ENGINE ROOM MAIN

main82111-44500iSXN10..STD..EFI199807-200104

main82111-44510iSXN10..STD..EFI199807-200104

main82111-44520iSXN15..STD199807-200104

main82111-44530iSXN10..D4199807-200104

main82111-44540iSXN10..STD..EFI199807-200104

main82111-44560iSXN10..SU199906-200104

main82111-44570iSXN15..SU199906-200104

main82111-44630iSXN10..SU199906-200104

main82111-44860iACN10..STD..(L,X)200104

main82111-4C010iACN15..STD..(L,X)200208

main82111-4C020iACN15..SU..(L,X)200208

main82111-4C030iACN15..STD200208

main82111-4C040iACN15..SU200208

main82111-4C060iACN10..STD..(L,X)200104

main82111-4C070iSXN15..STD..(L,X)200104-200208

main82111-4C080iACN10..SU..(L,X)200104

main82111-4C090iSXN15..SU..(L,X)200104-200208

main82111-4C100iACN10..STD..(L,X); ACN10..STD..S200104

main82111-4C110iSXN15..STD..(L,X); SXN15..STD..S200104-200208

main82111-4C120iACN10..SU..(L,X); ACN10..SU..S200104

main82111-4C130iSXN15..SU..(L,X); SXN15..SU..S200104-200208

82210CFUSIBLE LINK

main90982-08202iACN10,SXN1#199807

main90982-08246iSXN1#199807-200104

main90982-08254iSXN1#199807-200104

main90982-08257iACN15200208

main90982-08283iACN1#,SXN1#199807

main90982-08284iACN1#,SXN1#199807

main90982-08285iACN1#,SXN1#199807

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-95702iACN1#,SXN1#199807

82818PROTECTOR, WIRING HARNESS, NO.2

main82818-44010×2iACN1#,SXN1#199807

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iACN1#,SXN1#199807

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

827113F040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F040

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

8271237210CLAMP, WIRING HARNESS

main82712-37210

9011906915

main90119-06915
