ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-44010-A0iSXN1#..STD..NOG200001

main74102-44010-B3iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-44010iACN1#,SXN1#199807

74112ADOOR, FRONT ASH RECEPTACLE

main74112-44010-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main74112-44010-B3iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

74130RECEPTACLE ASSY, REAR ASH

main74130-44010-A0iACN1#,SXN15..X200104

IVORY,TRIM0#

main74130-44010-B1iSXN1#199807-200104

BLUE GRAY,TRIM1#

main74130-44020iSXN1#..STD199807-200104

main74130-44030iSXN1#..STD199807-200104

sub74130-44090

main74130-44050iSXN1#..SU199906-200104

main74130-44060iACN1#,SXN15..S200104

sub74130-44090

main74130-44080iACN1#,SXN15..L200104

74135CRETAINER, ASH RECEPTACLE

main74135-44010iACN1#,SXN1#199807

9016430007

main90164-30007

9054102001

main90541-02001

9356855016

main93568-55016

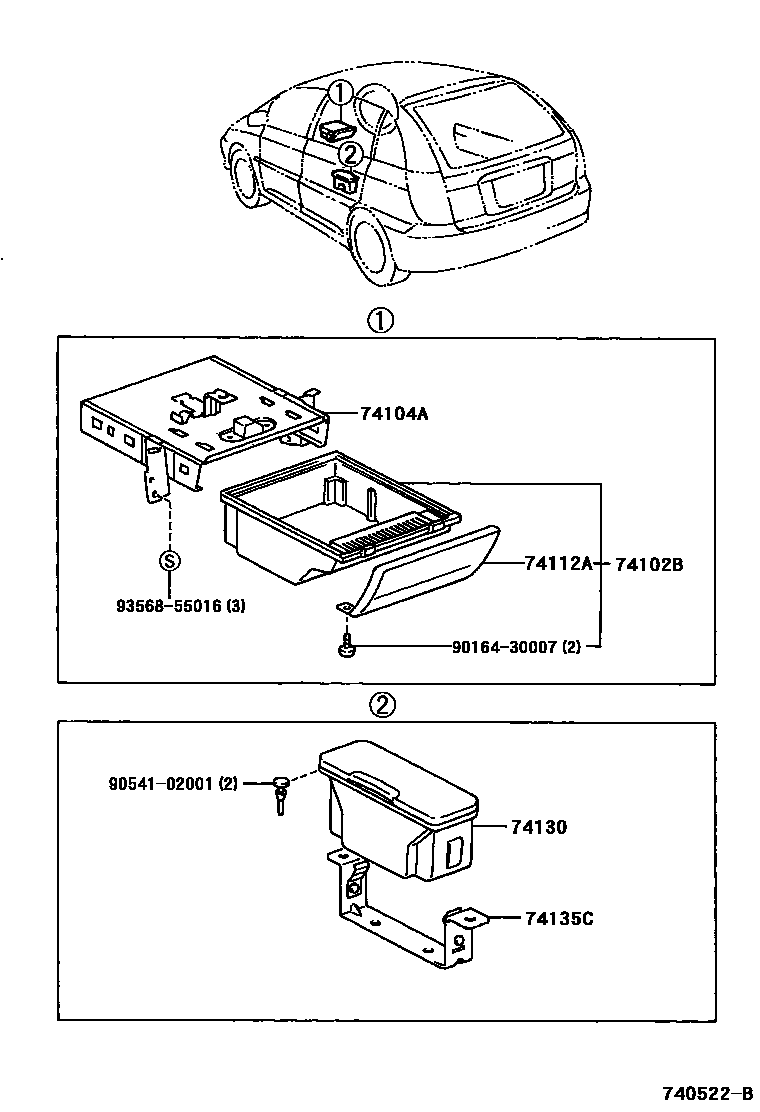

8 parts on this diagram · 1 diagram in section
