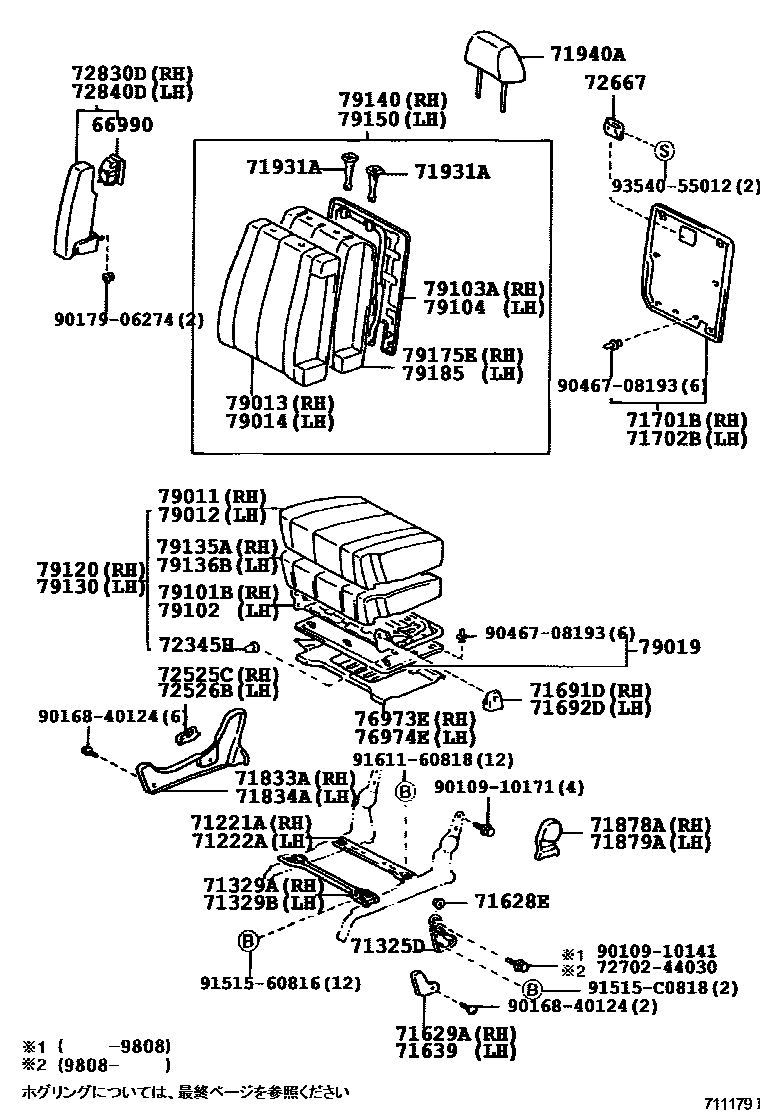

REAR SEAT & SEAT TRACK

0001 1 0003 1 0005 1 0006 1 0007 1�������

66990HOLDER ASSY, CUP

main66990-32010-A1×2iSXN1#..STD..NOG200001

main66990-32010-B0×2iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main66990-32010-B1×2iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

71221AREINFORCEMENT, REAR SEAT CUSHION, REAR

main71221-44010iACN1#,SXN1#..NOG,S199807

71222AREINFORCEMENT, REAR SEAT CUSHION, REAR

main71221-44010iACN1#,SXN1#..NOG,S199807

71325DHINGE, REAR SEAT CUSHION, UPPER

main71325-44010×2iACN1#,SXN1#..NOG,S199807

main71325-44020×2iACN1#,SXN1#..NOG,S199807

71329AREINFORCEMENT, REAR SEAT CUSHION SUPPORT, RH

main71329-44020iACN1#,SXN1#..NOG,S199807

71329BREINFORCEMENT, REAR SEAT CUSHION SUPPORT, LH

main71329-44020iACN1#,SXN1#..NOG,S199807

71628ESPACER, REAR SEAT CUSHION

main71628-44010×2iSXN1#199807-200104

71629COVER, REAR SEAT CUSHION HINGE

main71629-44020-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

71629ACOVER, REAR SEAT CUSHION HINGE, RH

main71629-44010-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main71629-44010-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

71639COVER, REAR SEAT CUSHION HINGE, LH

main71639-44010-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main71639-44010-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

71691DCOVER, REAR SEAT CUSHION HINGE, UPPER RH

main71692-44010×2iACN1#,SXN1#..NOG,S199807

71692DCOVER, REAR SEAT CUSHION HINGE, UPPER LH

main71691-44010×2iACN1#,SXN1#..NOG,S199807

71701BBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-44010-A0iSXN1#..STD..NOG200001

main71701-44010-B0iACN1#,SXN1#..NOG,S199807

LT. GRAY,TRIM1#

main71701-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

71702BBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-44010-A0iSXN1#..STD..NOG200001

main71702-44010-B0iACN1#,SXN1#..NOG,S199807

LT. GRAY,TRIM1#

main71702-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-44020-A0iSXN1#..STD..NOG200001

main71833-44020-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main71833-44020-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

main71833-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-44020-A0iSXN1#..STD..NOG200001

main71834-44020-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main71834-44020-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

main71834-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-44020-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main71878-44020-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

main71878-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

71879ACOVER, REAR SEAT RECLINING, INNER LH

main71879-44020-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main71879-44020-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

main71879-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

71931ASUPPORT, REAR SEAT HEADREST

main71930-28030-A1×2iACN1#,SXN15..L,X200104

main71930-28030-B6×2iACN1#,SXN15..S;SXN1#..STD..NOG199807

main71930-28030-B9×2iSXN1#..SU199906-200104

main71931-28030-A1×2iACN1#,SXN15..L,X200104

main71931-28030-B5×2iACN1#,SXN15..S;SXN1#..STD..NOG199807

main71931-28030-B9×2iSXN1#..SU199906-200104

71940AHEADREST ASSY, REAR SEAT

main71910-44070-B0×2iSXN1#..STD199807-200104

main71910-44080-B0×2iSXN1#..STD199807-200104

main71910-44090-B1×2iSXN1#..STD199807-200104

main71910-44170-A0×2iSXN1#..STD..NOG200001

main71910-44170-B1×2iSXN1#..STD..NOG199812

main71910-44180-B0×2iSXN1#..SU199906-200104

main71910-44190-B0×2iSXN1#..SU199906-200104

main71910-44200×2iSXN1#..STD..NOG199811

main71910-44300-A0×2iACN1#,SXN15..X200104

main71910-44310-B0×2iACN1#,SXN15..S200104

main71910-44350-A0×2iACN1#,SXN15..L200104

72345HCAP, SEAT STAND FRAME

main72345-44110×4iACN1#,SXN1#..NOG,S199811

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-44010-A0iSXN1#..STD..NOG200001

main72525-44010-B1iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main72525-44010-B2iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

72526BHANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

main72526-44010-A0iSXN1#..STD..NOG200001

main72526-44010-B1iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main72526-44010-B2iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-44010-A0×2iACN1#,SXN1#..NOG,S200001

IVORY,TRIM00

main72667-44010-B0×2iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-44200-A1iACN1#,SXN15..X200104

IVORY,TRIM0#

main72830-44210-A2iACN1#,SXN15..L200104

IVORY,TRIM0#

72830DARMREST ASSY, REAR SEAT, RH

main72830-44030-B0iSXN1#199807-199906

main72830-44030-B2iSXN1#..STD199906-200104

main72830-44040-B0iSXN1#199807-199906

main72830-44040-B1iSXN1#..STD199906-200104

main72830-44070-A0iSXN1#..STD..NOG200001

main72830-44070-B0iSXN1#..STD..NOG199812

main72830-44080-B0iSXN1#..SU199906-200104

main72830-44090iSXN1#..STD..NOG199811

main72830-44180-B1iACN1#,SXN15..S200104

72840DARMREST ASSY, REAR SEAT, LH

main72830-44030-B0iSXN1#199807-199906

main72830-44030-B2iSXN1#..STD199906-200104

main72830-44040-B0iSXN1#199807-199906

main72830-44040-B1iSXN1#..STD199906-200104

main72830-44070-A0iSXN1#..STD..NOG200001

main72830-44070-B0iSXN1#..STD..NOG199812

main72830-44080-B0iSXN1#..SU199906-200104

main72830-44090iSXN1#..STD..NOG199811

main72830-44180-B1iACN1#,SXN15..S200104

76973ECOVER, REAR UNDER SIDE, RH

main76973-44010-A0iSXN1#..STD..NOG200001

main76973-44010-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main76973-44010-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

76974ECOVER, REAR UNDER SIDE, LH

main76974-44010-A0iSXN1#..STD..NOG200001

main76974-44010-B0iSXN1#..STD199807-200104

LT.GRAY,TRIM1#

main76974-44010-B1iACN1#..S;SXN15..STD..S;SXN1#..SU..(NOG,S)199906

BLUISH GRAY,TRIM1#

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-44100-B0iSXN1#..STD199807-200104

main79011-44110-B0iSXN1#..STD199807-200104

main79011-44120-B1iSXN1#..STD199807-200104

main79011-44230-B0iSXN1#..STD..NOG199812

main79011-44240-B0iSXN1#..SU199906-200104

main79011-44250-B0iSXN1#..SU199906-200104

main79011-44260iSXN1#..STD..NOG199811

main79011-44410-B0iACN1#,SXN15..S200104

79012COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

main79012-44010-B0iSXN1#..STD199807-200104

main79012-44020-B0iSXN1#..STD199807-200104

main79012-44030-B1iSXN1#..STD199807-200104

main79012-44040-A0iSXN1#..STD..NOG200001

main79012-44040-B0iSXN1#..STD..NOG199812

main79012-44050-B0iSXN1#..SU199906-200104

main79012-44060-B0iSXN1#..SU199906-200104

main79012-44070iSXN1#..STD..NOG199811

main79012-44100-B0iACN1#,SXN15..S200104

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-44110-B0iSXN1#..STD199807-200104

main79013-44120-B0iSXN1#..STD199807-200104

main79013-44130-B1iSXN1#..STD199807-200104

main79013-44230-A0iSXN1#..STD..NOG200001

main79013-44230-B0iSXN1#..STD..NOG199812

main79013-44240-B0iSXN1#..SU199906-200104

main79013-44250-B0iSXN1#..SU199906-200104

main79013-44260iSXN1#..STD..NOG199811

main79013-44430-B1iACN1#,SXN15..S200104

main79013-44450-A1iACN1#,SXN15..X200104

main79013-44460-A1iACN1#,SXN15..L200104

79014COVER SUB-ASSY, NO.1 SEATBACK, LH

main79014-44110-B0iSXN1#..STD199807-200104

main79014-44120-B0iSXN1#..STD199807-200104

main79014-44130-B1iSXN1#..STD199807-200104

main79014-44230-A0iSXN1#..STD..NOG200001

main79014-44230-B0iSXN1#..STD..NOG199812

main79014-44240-B0iSXN1#..SU199906-200104

main79014-44250-B0iSXN1#..SU199906-200104

main79014-44260iSXN1#..STD..NOG199811

main79014-44360-B1iACN1#,SXN15..S200104

main79014-44380-A1iACN1#,SXN15..X200104

main79014-44390-A1iACN1#,SXN15..L200104

79019BOARD SUB-ASSY, NO.1 SEAT CUSHION

main79019-44010-B0iACN1#,SXN1#..NOG,S199807

main79019-44020-B0iACN1#,SXN1#..NOG,S199807

79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79101-44020iACN1#,SXN1#..NOG,S199807

79102FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

main79102-44010iACN1#,SXN1#..NOG,S199807

79103AFRAME SUB-ASSY, NO.1 SEATBACK, RH

main79103-44020iSXN1#199807-200104

main79103-44030iACN1#,SXN15..S200104

79104FRAME SUB-ASSY, NO.1 SEATBACK, LH

main79104-44020iSXN1#199807-200104

main79104-44030iACN1#,SXN15..S200104

79120CUSHION ASSY, NO.1 SEAT, RH

main79120-44100-B0iSXN1#..STD199807-200104

main79120-44110-B0iSXN1#..STD199807-200104

main79120-44120-B0iSXN1#..STD199807-200104

main79120-44220-A0iSXN1#..STD..NOG200001

main79120-44220-B0iSXN1#..STD..NOG199812

main79120-44230-B0iSXN1#..SU199906-200104

main79120-44240-B0iSXN1#..SU199906-200104

main79120-44400-B0iACN1#,SXN15..S200104

79130CUSHION ASSY, NO.1 SEAT, LH

main79130-44040-B0iSXN1#..STD199807-200104

main79130-44050-B0iSXN1#..STD199807-200104

main79130-44060-B0iSXN1#..STD199807-200104

main79130-44090-A0iSXN1#..STD..NOG200001

main79130-44090-B0iSXN1#..STD..NOG199812

main79130-44100-B0iSXN1#..SU199906-200104

main79130-44110-B0iSXN1#..SU199906-200104

main79130-44170-B0iACN1#,SXN15..S200104

79135PAD, NO.1 SEAT CUSHION

main79135-44080iACN1#,SXN15..L,X200104

79135APAD, NO.1 SEAT CUSHION, RH

main79135-44030iACN1#,SXN1#..NOG,S199807

79136BPAD, NO.1 SEAT CUSHION, LH

main79136-44010iACN1#,SXN1#..NOG,S199807

79140BACK ASSY, NO.1 SEAT, RH

main79140-44110-B0iSXN1#..STD199807-200104

main79140-44120-B0iSXN1#..STD199807-200104

main79140-44130-B0iSXN1#..STD199807-200104

main79140-44230-A0iSXN1#..STD..NOG200001

main79140-44230-B0iSXN1#..STD..NOG199812

main79140-44240-B0iSXN1#..SU199906-200104

main79140-44250-B0iSXN1#..SU199906-200104

main79140-44430-B1iACN1#,SXN15..S200104

main79140-44450-A1iACN1#,SXN15..X200104

main79140-44460-A1iACN1#,SXN15..L200104

79150BACK ASSY, NO.1 SEAT, LH

main79150-44110-B0iSXN1#..STD199807-200104

main79150-44120-B0iSXN1#..STD199807-200104

main79150-44130-B0iSXN1#..STD199807-200104

main79150-44230-A0iSXN1#..STD..NOG200001

main79150-44230-B0iSXN1#..STD..NOG199812

main79150-44240-B0iSXN1#..SU199906-200104

main79150-44250-B0iSXN1#..SU199906-200104

main79150-44360-B1iACN1#,SXN15..S200104

main79150-44380-A1iACN1#,SXN15..X200104

main79150-44390-A1iACN1#,SXN15..L200104

79175EPAD, NO.1 SEATBACK, RH

main79175-44040iSXN1#199807-200104

main79175-44100iACN1#,SXN15..S200104

main79175-44110iACN1#,SXN15..L,X200104

79185PAD, NO.1 SEATBACK, LH

main79185-44030iSXN1#199807-200104

main79185-44060iACN1#,SXN15..S200104

main79185-44070iACN1#,SXN15..L,X200104

7270244030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-44030

9010910141

main90109-10141

9010910171

main90109-10171

9016840124

main90168-40124

9017906274

main90179-06274

9046708193

main90467-08193

9151560816

main91515-60816

91515C0818

main91515-C0818

9161160818

main91611-60818

9354055012

main93540-55012

57 parts on this diagram · 5 diagrams in section
