FRONT SEAT & SEAT TRACK

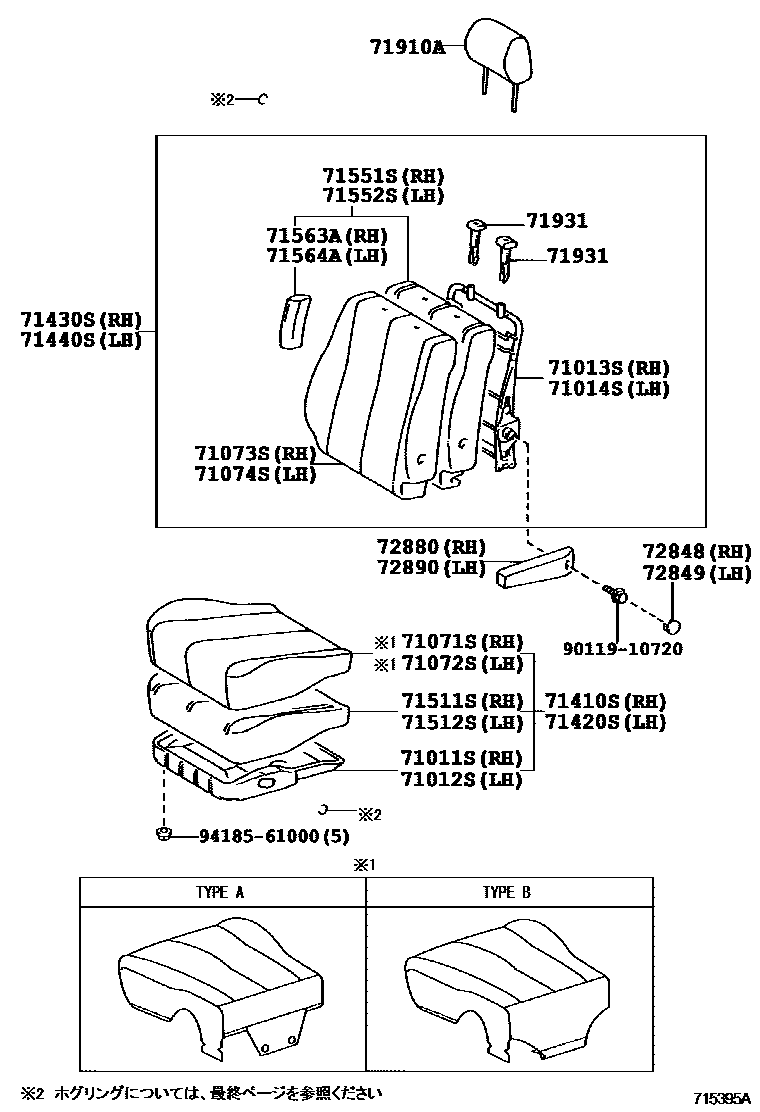

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-44010i199807-200104
main71011-44020i200104-200208
main71610-32160i200104
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-44010i199807
main71012-44010i200104
main71610-32150i200104
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-44020i200104
main71013-44030i199807-200104
main71014-44010i200104
main71630-44040i200104
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-44010i200104
main71014-44010i199807-200104
main71014-44020i199807-200104
main71014-44060i200104
main71014-44070i200104
main71640-44030i200104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-44100-B0i199807-199906
main71071-44101-B0i199906-199910
main71071-44101-B3i199910-200104
main71071-44110-B0i199807-199906
main71071-44111-B0i199906-199910
main71071-44111-B1i199910-200104
main71071-44120-B1i199807-199906
main71071-44121-B1i199906-199910
main71071-44121-B2i199910-200104
main71071-44200-B1i199812
sub71071-44260
main71071-44210-B0i199906-200001
main71071-44210-B1i200001-200104
main71071-44220-B0i199906-200001
main71071-44220-B1i200001-200104
main71071-44230i199811
main71071-44550-A0i200104
main71071-44560-B0i200104
main71071-44600-A0i200104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-44100-B0i199807-199906
main71071-44101-B0i199906-199910
main71071-44101-B3i199910-200104
main71071-44110-B0i199807-199906
main71071-44111-B0i199906-199910
main71071-44111-B1i199910-200104
main71071-44120-B1i199807-199906
main71071-44121-B1i199906-199910
main71071-44121-B2i199910-200104
main71071-44200-A0i200001
sub71071-44260
main71071-44200-B1i199812
sub71071-44260
main71071-44210-B0i199906-200001
main71071-44210-B1i200001-200104
main71071-44220-B0i199906-200001
main71071-44220-B1i200001-200104
main71072-44170i199811
main71072-44220-A0i200104
main71072-44230-B0i200104
main71072-44280-A0i200104
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-44100-B0i199807-200104
main71073-44110-B0i199807-200104
main71073-44120-B1i199807-200104
main71073-44210-A0i200001
sub71073-44270
main71073-44210-B0i199812
sub71073-44270
main71073-44220-B0i199906-200104
main71073-44230-B0i199906-200104
main71073-44240i199811
main71073-44550-A0i200104
main71073-44560-B0i200104
main71073-44690-A0i200104
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-44100-B0i199807-200104
main71074-44110-B0i199807-200104
main71074-44120-B1i199807-200104
main71074-44140-B0i199906-200104
main71074-44160i199811
main71074-44230-A0i200001
sub71074-44290
main71074-44230-B0i199812
sub71074-44290
main71074-44240-B0i199906-200104
main71074-44250-B0i199906-200104
main71074-44260-B0i199906-200104
main71074-44270i199811
main71074-44340-A0i200104
main71074-44350-B0i200104
main71074-44430-A0i200104
main71074-44450-A0i200104
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-44110-B0i199807-199906
main71410-44111-B0i199906-200104
main71410-44120-B0i199807-199906
main71410-44121-B0i199906-200104
main71410-44130-B0i199807-199906
main71410-44131-B0i199906-200104
main71410-44200-A0i200001
sub71410-44260
main71410-44200-B0i199812
sub71410-44260
main71410-44210-B0i199906-200104
main71410-44220-B0i199906-200104
main71410-44440-A0i200104
main71410-44450-B0i200104
main71410-44500-A0i200104
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-44100-B0i199807-199906
main71420-44101-B0i199906-200104
main71420-44110-B0i199807-199906
main71420-44111-B0i199906-200104
main71420-44120-B0i199807-199906
main71420-44121-B0i199906-200104
main71420-44190-A0i200001
sub71420-44240
main71420-44190-B0i199812
sub71420-44240
main71420-44200-B0i199906-200104
main71420-44210-B0i199906-200104
main71420-44420-A0i200104
main71420-44430-B0i200104
main71420-44480-A0i200104
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-44110-B0i199807-200104
main71430-44120-B0i199807-200104
main71430-44130-B0i199807-200104
main71430-44220-A0i200001
sub71430-44190
main71430-44220-B0i199812
sub71430-44190
main71430-44230-B0i199906-200104
main71430-44240-B0i199906-200104
main71430-44460-A0i200104
main71430-44470-B0i200104
main71430-44520-A0i200104
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-44120-B0i199807-200104
main71440-44130-B0i199807-200104
main71440-44140-B0i199807-200104
main71440-44160-B0i199906-200104
main71440-44240-A0i200001
sub71440-44310
main71440-44240-B0i199812
sub71440-44310
main71440-44250-B0i199906-200104
main71440-44260-B0i199906-200104
main71440-44270-B0i199906-200104
main71440-44510-A0i200104
main71440-44520-B0i200104
main71440-44600-A0i200104
main71440-44620-A0i200104
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-44030i199807-200104
main71511-44080i200104-200208
main71511-44090i200104
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-44020i200104
main71052-44030i200104
main71052-44040i200104
main71511-44030i199807-200104
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-44040i200104-200208
main71551-44090i200104
main71552-44030i200104
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-44030i199807
main71552-44040i199807
main71552-44050i200104
main71552-44060i200104
71563APAD, FRONT SEATBACK SIDE, RH
main71563-44010i200104-200208
71564APAD, FRONT SEATBACK SIDE, LH
main71564-44010i199807
71910AHEADREST ASSY, FRONT SEAT
main71910-44070-B0×2i199807-200104
main71910-44080-B0×2i199807-200104
main71910-44090-B1×2i199807-200104
main71910-44170-A0×2i200001
sub71910-44220
main71910-44170-B1×2i199812
sub71910-44220
main71910-44180-B0×2i199906-200104
main71910-44190-B0×2i199906-200104
main71910-44200×2i199811
main71910-44300-A0i200104
main71910-44310-B0×2i200104
main71910-44350-A0i200104-200208
71931SUPPORT, FRONT SEAT HEADREST
main71930-28030-A1i200104
main71930-28030-B6×2i199807
main71930-28030-B9×2i199906-200104
main71931-28030-A1×2i200104
main71931-28030-B5×2i199807
main71931-28030-B9×2i199906-200104
72848CAP, NO.3 SEAT ARMREST
main72848-28030-A1i200104
IVORY,TRIM0#
main72848-44020-A0i200104
IVORY,TRIM0#
main72848-44020-B0i199807-200104
LT.GRAY,TRIM1#
main72848-44020-B1i199906-200104
BLUISH GRAY,TRIM1#
72849CAP, SEAT ARMREST, NO.2
main71877-26020-A1i200104
IVORY,TRIM0#
main72848-44030-A0i200104
IVORY,TRIM0#
main72848-44030-B0i199807-200104
LT.GRAY,TRIM1#
main72848-44030-B1i199906-200104
BLUISH GRAY,TRIM1#
72880ARMREST ASSY, SEAT, C RH
main72880-44030-B1i199807-200104
main72880-44040-B2i199807-200104
main72880-44090-A0i200001
main72880-44090-B0i199812
main72880-44100-B0i199906-200104
main72880-44110i199811
main72880-44220-A4i200104-200208
main72880-44260-A2i200104
72890ARMREST ASSY, SEAT, C LH
main72890-44010-B2i199807-200104
LT. GRAY,TRIM1#
main72890-44020-A0i200001
main72890-44020-B0i199812
main72890-44030-B0i199906-200104
BLUISH GRAY,TRIM1#
main72890-44040i199811
main72890-44110-B1i200104
BLUISH GRAY,TRIM1#
main72890-44160-A2i200104
IVORY,TRIM0#
main72890-44170-A1i200104
IVORY,TRIM0#
9011910720
main90119-10720
9418561000
main94185-61000

26 parts on this diagram · 11 diagrams in section
