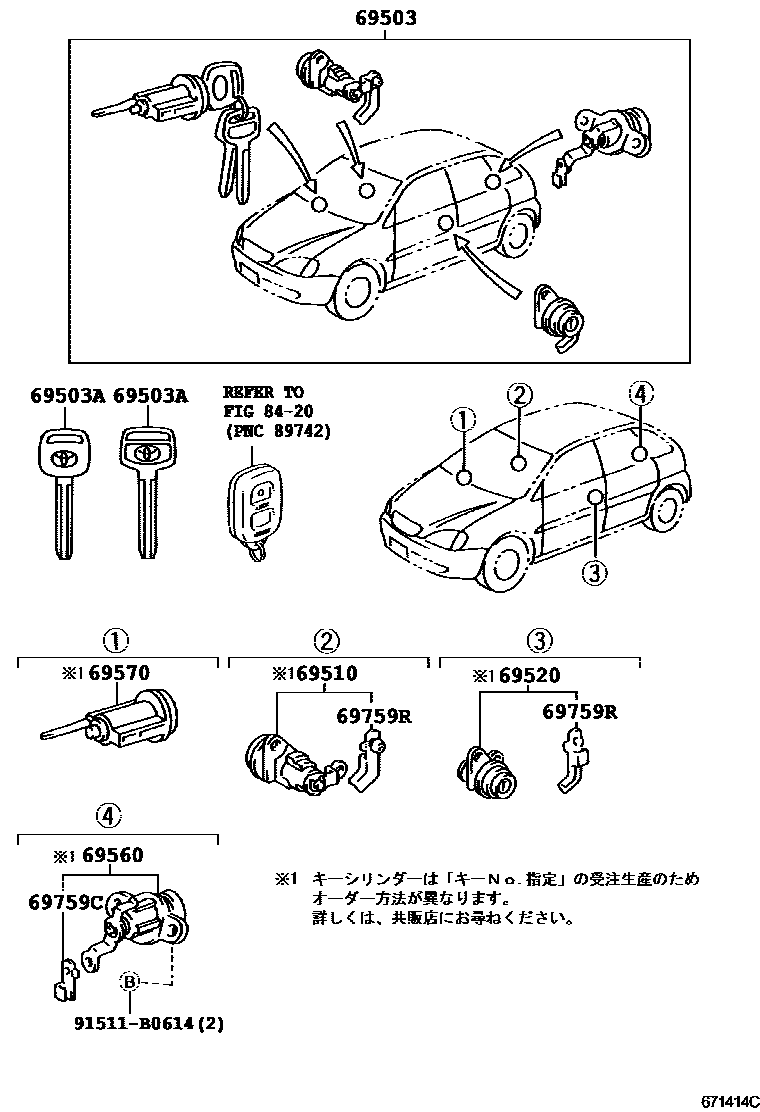

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-44070iSXN1#..STD199807-200104

main69005-44080iSXN1#..STD199807-200104

69503AKEY, BLANK

main90999-00185iSXN1#199807-200104

main90999-00186×3iACN1#,SXN15200104

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-44010iSXN1#199807-200104

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-44020iSXN1#199807-200104

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-44030iSXN1#..STD199807-200104

main69560-44040iSXN1#..STD; SXN1#..SU199807-200104

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-44030iSXN1#199807-200104

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090iSXN1#199807-200104

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-44010iSXN1#199807-200104

main69759-44020iACN1#,SXN15200104

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

91511B0614

main91511-B0614

10 parts on this diagram · 2 diagrams in section
