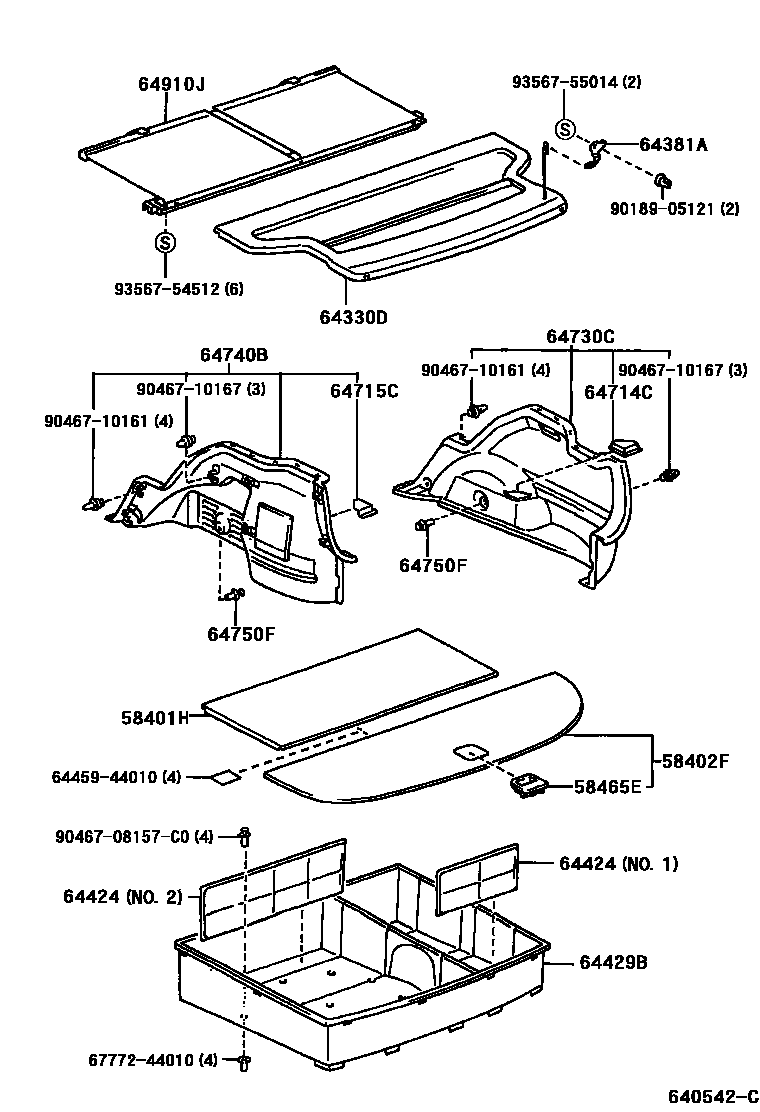

DECK BOARD & DECK TRIM COVER

58401HBOARD SUB-ASSY, REAR FLOOR, NO.1

main58401-44010-A0iSXN1#..STD..NOG200001

main58401-44010-B1iACN1#,SXN1#..NOG,S199807

LT. GRAY,TRIM1#

58402FBOARD SUB-ASSY, REAR FLOOR, NO.2

main58402-44010-A0iSXN1#..STD..NOG200001

main58402-44010-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

58465EHANDLE, DECK BOARD

main58465-32010-A1iSXN1#..STD..NOG200001

main58465-32010-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64303-44010-A0iSXN1#..STD..NOG200001

main64303-44010-B1iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

main64303-44020-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

64381AHANGER, PACKAGE TRAY TRIM

main64381-44010-C0iSXN1#..STD..NOG200001

64424SEPARATOR, LUGGAGE ROOM BOX

main64424-44040-C0iACN1#,SXN1#..STD..(NOG,S)199807

main64424-44050-C0iACN1#,SXN15..STD..(L,X)200104

main64424-44060-C0iACN1#,SXN1#..SU..(NOG,S)199906

main64424-44070-C0iACN1#,SXN1#..SU..(NOG,S)199906

64429BBOX, LUGGAGE ROOM

main64429-44030-C0iACN10,SXN10..STD..(NOG,S)199807

BLACK,TRIM1#

main64429-44040-C0iACN15,SXN15..STD..(L,X)200104

BLACK,TRIM0#

main64429-44050-C0iACN10,SXN10..SU..(NOG,S)199906

BLACK,TRIM1#

main64429-44060-C0iACN15,SXN15..SU..(NOG,S)199906

BLACK,TRIM1#

64714CCOVER, DECK SIDE TRIM, RH

main64714-44020-A0iSXN1#..STD..NOG200001

main64714-44020-B0iACN1#,SXN1#..NOG,S199808

LT.GRAY,TRIM1#

64715CCOVER, DECK SIDE TRIM, LH

main64715-44020-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main64715-44020-B0iACN1#,SXN1#..NOG,S199808

LT.GRAY,TRIM1#

64730CBOARD, DECK TRIM SIDE, RH

main64730-44120-A0iSXN1#..STD..NOG200001

main64730-44120-B0iSXN1#199807-200104

main64730-44170-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main64730-44170-B0iSXN1#199807-200104

64740BBOARD, DECK TRIM SIDE, LH

main64740-44120-A0iSXN1#..STD..NOG200001

main64740-44120-B1iSXN1#199807-200104

main64740-44170-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main64740-44170-B0iSXN1#199807-200104

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-06017-A0×4iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main90467-06017-B4×4iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

64910JCOVER ASSY, TONNEAU

main64910-44030-A0iSXN1#..STD..NOG200001

main64910-44030-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

main64910-44060-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

6445944010CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-44010

6777244010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-44010

9018905121

main90189-05121

9046708157C0

main90467-08157C0

9046710161

main90467-10161

9046710167

main90467-10167

9356754512

main93567-54512

9356755014

main93567-55014

21 parts on this diagram · 1 diagram in section
