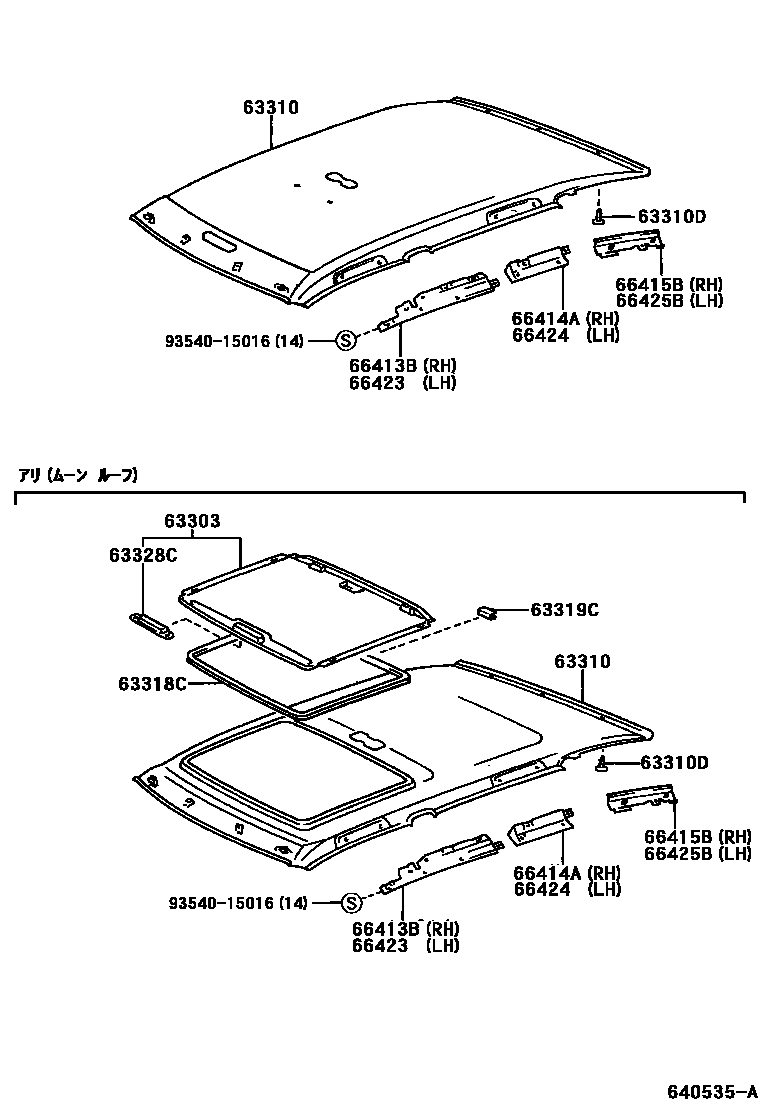

ROOF HEADLINING & SILENCER PAD

63303TRIM SUB-ASSY, SUNSHADE, NO.2

main63306-44020-A1iSXN1#..STD..NOG200001

main63306-44020-B1iACN1#,SXN1#..NOG,S199807

LT. GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63310-44060-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main63310-44060-B1iACN1#,SXN1#..NOG,S199807

LT. GRAY,TRIM1#

main63310-44070-A0iSXN1#..STD..NOG200001

main63310-44070-B1iACN1#,SXN1#..NOG,S199807

63310DCLIP, ROOF HEADLINING

main90467-05164-A1×4iACN1#..L,X200304

IVORY,TRIM0#

main90467-05164-B8×4iACN1#..S200304

LT.GRAY,TRIM1#

main90467-06177-A0×4iSXN1#..STD..NOG200001

main90467-06177-B1×4iACN1#,SXN1#..NOG,S199807-200304

LT.GRAY,TRIM1#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-44030-A0iSXN1#..STD..NOG200001

main63318-44030-B0iACN1#,SXN1#..NOG,S199807

63319CJOINT, SUN ROOF OPENING TRIM

main63319-44010-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main63319-44010-A2iSXN1#..STD..NOG200001

main63319-44010-B2iSXN1#199807-200104

LT.GRAY,TRIM1#

main63319-44010-B9iACN1#,SXN15..S200104

LT. GRAY,TRIM1#

63328CKNOB, SUNSHADE TRIM

main63328-12030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main63328-12030-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-44010iACN1#,SXN1#199807

66414ASPACER, SIDE RAIL, REAR RH

main66414-44010iACN1#,SXN1#199807

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-44010iACN1#,SXN1#199807

66423SPACER, SIDE RAIL, FRONT LH

main66423-44010iACN1#,SXN1#199807

66424SPACER, SIDE RAIL, REAR LH

main66424-44010iACN1#,SXN1#199807

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-44010iACN1#,SXN1#199807

9354015016

main93540-15016

13 parts on this diagram · 1 diagram in section
