MAT & CARPET

58293CPAD, FRONT FLOOR

main58293-44010iACN10,SXN1#..L,NOG,X199807-200208

main58293-44011iACN1#..L,X200208

58510DCARPET ASSY, FLOOR, FRONT

main58510-44320-B0iSXN1#199807-199902

LT. GRAY,TRIM1#

sub58510-44320

main58510-44330-B0iSXN1#199807-199902

sub58510-44330

main58510-44480-B0iSXN1#199807-199902

sub58510-44480

main58510-44490-B0iSXN1#199807-199902

sub58510-44490

main58510-44510-A0iSXN1#..STD..NOG200001

sub58510-4C150

main58510-44510-B0iSXN1#199902-199906

LT. GRAY,TRIM1#

sub58510-4C150

main58510-44510-B1iSXN1#..STD199906-200104

LT. GRAY,TRIM1#

sub58510-4C150

main58510-44520-A0iSXN1#..STD..NOG200001

sub58510-4C110

main58510-44520-B0iSXN1#199902-199906

sub58510-4C110

main58510-44520-B1iSXN1#..STD199906-200104

sub58510-4C110

main58510-44530-B0iSXN1#199902-199906

sub58510-44530

main58510-44530-B1iSXN1#..STD199906-200104

sub58510-44530

main58510-44540-B0iSXN1#199902-199906

sub58510-44540

main58510-44540-B1iSXN1#..STD199906-200104

sub58510-44540

main58510-44550-B1iSXN1#..SU199906-200104

LT. GRAY,TRIM1#

sub58510-4C160

main58510-44560-B1iSXN1#..SU199906-200104

sub58510-4C120

main58510-44570-B1iSXN1#..SU199906-200104

main58510-44580-B1iSXN1#..SU199906-200104

main58510-4C010-A0iACN10,SXN15..STD..(L,X)200104-200208

main58510-4C011-A0iACN1#..STD..(L,X)200208

main58510-4C020-A0iACN10,SXN15..SU..(L,X)200104-200208

main58510-4C021-A0iACN1#..SU..(L,X)200208

main58510-4C050-A0iACN10,SXN15..STD..(L,X)200104-200208

main58510-4C051-A0iACN1#..STD..(L,X)200208

main58510-4C060-A0iACN10,SXN15..SU..(L,X)200104-200208

main58510-4C061-A0iACN1#..SU..(L,X)200208

main58510-4C090-A0iACN10,SXN15..STD..(L,X)200104-200208

main58510-4C091-A0iACN1#..STD..(L,X)200208

main58510-4C100-A0iSXN15..SU..X;ACN10..SU..(L,X)200104-200208

main58510-4C101-A0iACN1#..SU..(L,X)200208

main58510-4C110-B0iACN10,SXN15..STD..S200104-200208

main58510-4C111-B0iACN1#..STD..S200208

main58510-4C120-B0iACN10,SXN15..SU..S200104-200208

main58510-4C121-B0iACN1#..SU..S200208

main58510-4C130-A0iACN10,SXN15..STD..(L,X)200104-200208

IVORY,TRIM0#

main58510-4C131-A0iACN1#..STD..(L,X)200208

IVORY,TRIM0#

main58510-4C140-A0iSXN15..SU..X;ACN10..SU..(L,X)200104-200208

IVORY,TRIM0#

main58510-4C141-A0iACN1#..SU..(L,X)200208

IVORY,TRIM0#

main58510-4C150-B0iACN10,SXN15..STD..S200104-200208

LT. GRAY,TRIM1#

main58510-4C151-B0iACN1#..STD..S200208

LT. GRAY,TRIM1#

main58510-4C160-B0iACN10,SXN15..SU..S200104-200208

LT. GRAY,TRIM1#

main58510-4C161-B0iACN1#..SU..S200208

LT. GRAY,TRIM1#

main58510-4C330-A0iACN10,SXN15..STD..(L,X)200104-200208

sub58510-4C010

main58510-4C331-A0iACN1#..STD..(L,X)200208

sub58510-4C011

main58510-4C340-A0iACN10,SXN15..SU..(L,X)200104-200208

sub58510-4C020

main58510-4C341-A0iACN1#..SU..(L,X)200208

sub58510-4C021

main58510-4C350-A0iACN10,SXN15..STD..(L,X)200104-200208

sub58510-4C050

main58510-4C351-A0iACN1#..STD..(L,X)200208

sub58510-4C051

main58510-4C360-A0iACN10,SXN15..SU..(L,X)200104-200208

sub58510-4C060

main58510-4C361-A0iACN1#..SU..(L,X)200208

sub58510-4C061

main58510-4C370-A0iACN10,SXN15..STD..(L,X)200104-200208

sub58510-4C090

main58510-4C371-A0iACN1#..STD..(L,X)200208

sub58510-4C091

main58510-4C380-A0iSXN15..SU..X;ACN10..SU..(L,X)200104-200208

sub58510-4C100

main58510-4C381-A0iACN1#..SU..(L,X)200208

sub58510-4C101

main58510-4C390-B0iACN10,SXN15..STD..S200104-200208

sub58510-4C110

main58510-4C391-B0iACN1#..STD..S200208

sub58510-4C111

main58510-4C400-B0iACN10,SXN15..SU..S200104-200208

sub58510-4C120

main58510-4C401-B0iACN1#..SU..S200208

sub58510-4C121

main58510-4C410-A0iACN10,SXN15..STD..(L,X)200104-200208

sub58510-4C130

main58510-4C411-A0iACN1#..STD..(L,X)200208

sub58510-4C131

main58510-4C420-A0iSXN15..SU..X;ACN10..SU..(L,X)200104-200208

sub58510-4C140

main58510-4C421-A0iACN1#..SU..(L,X)200208

sub58510-4C141

main58510-4C430-B0iACN10,SXN15..STD..S200104-200208

sub58510-4C150

main58510-4C431-B0iACN1#..STD..S200208

sub58510-4C151

main58510-4C440-B0iACN10,SXN15..SU..S200104-200208

sub58510-4C160

main58510-4C441-B0iACN1#..SU..S200208

sub58510-4C161

58521BHOOK, FLOOR CARPET

main58521-44010iACN1#,SXN1#199807

58534AMAT, TRANSMISSION COVER

main58534-44010-A0iSXN1#..STD..NOG200001

sub58534-44010

main58534-44010-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub58534-44010

main58534-44010-B2iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub58534-44010

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07121-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub90467-07121

sub90467-07207

main90467-07121-A0iSXN1#..STD..NOG200001

sub90467-07121

sub90467-07207

main90467-07121-B4iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub90467-07121

sub90467-07207

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-A0iSXN1#..STD..NOG200001

sub58569-44010

main58569-44010-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub58569-44010

main58569-44010-B1iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub58569-44010

58570BMAT ASSY, REAR FLOOR

main58517-44030iSXN1#..STD199807-200104

sub58517-44050

main58517-44050iACN1#,SXN15..STD200104

58573APLATE, REAR FLOOR MAT SUPPORT

main58573-44020-A0iSXN1#..STD..NOG200001

sub58573-44020

main58573-44020-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub58573-44020

main58573-44020-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub58573-44020

58574CPLUG, REAR FLOOR MAT SUPPORT PLATE HOLE

main67919-44010-A0iSXN10..STD200001

sub67919-44010

main67919-44010-A0iACN10..L,X200104

IVORY,TRIM0#

sub67919-44010

main67919-44010-B1iACN10,SXN10..NOG,S199807

LT.GRAY,TRIM1#

sub67919-44010

main67919-44020-A0iSXN15..STD..NOG200001

sub67919-44020

main67919-44020-A0iACN15,SXN15..L,X200104

IVORY,TRIM0#

sub67919-44020

main67919-44020-B0iACN15,SXN15..NOG,S199807

LT.GRAY,TRIM1#

sub67919-44020

67921BRETAINER, REAR FLOOR MAT SUPPORT

main67921-95501iACN1#,SXN1#199807

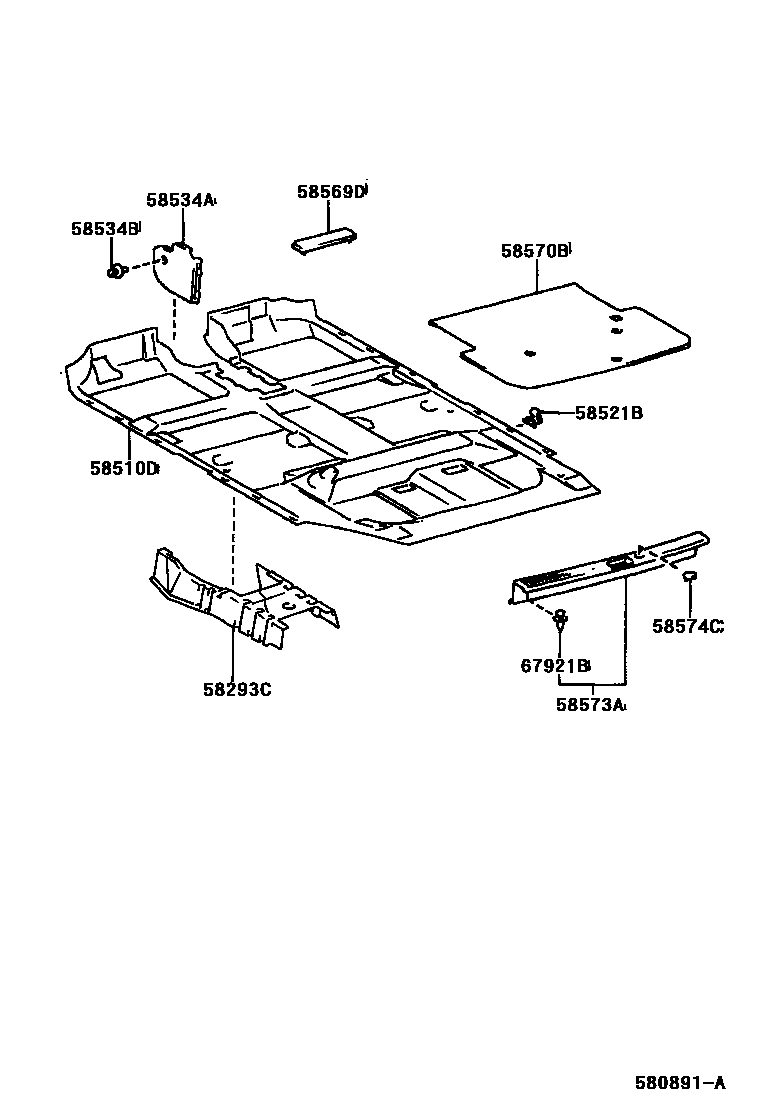

10 parts on this diagram · 1 diagram in section
