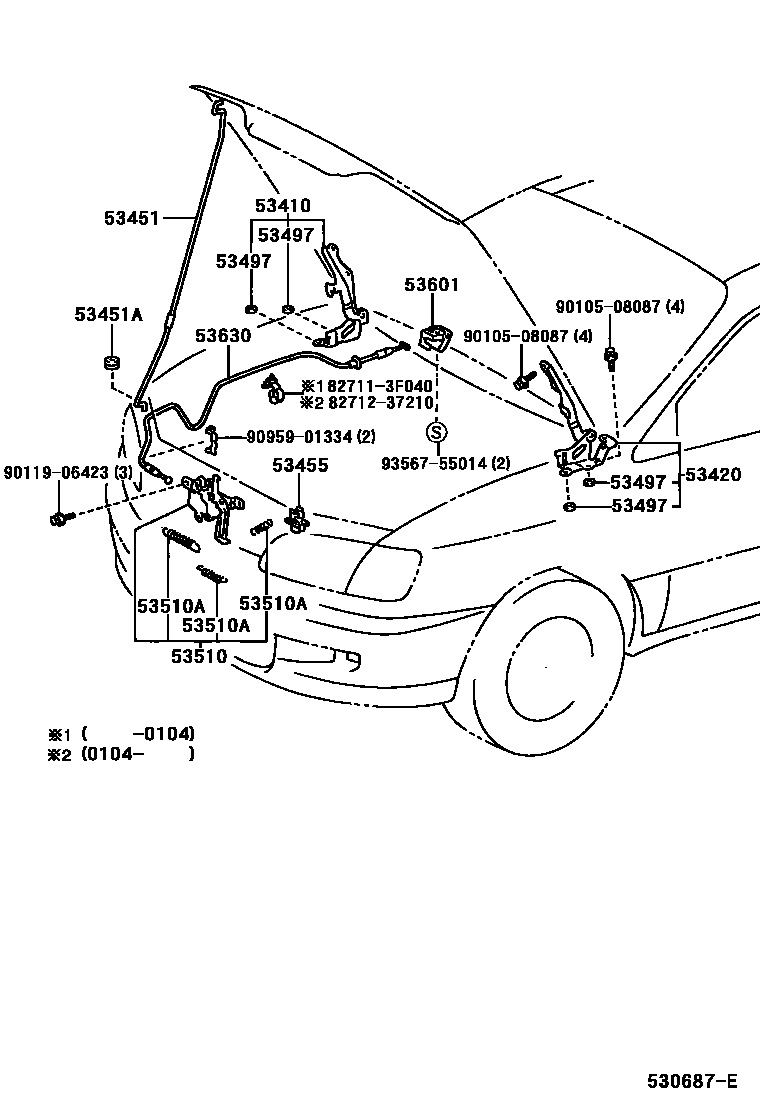

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-44030iACN1#,SXN1#199807

53420HINGE ASSY, HOOD, LH

main53420-44030iACN1#,SXN1#199807

53451ROD, HOOD SUPPORT

main53451-44030iACN1#,SXN1#199807

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15032iACN1#,SXN1#199807

53455CLAMP, HOOD SUPPORT ROD

main53455-44010iACN1#,SXN1#199807

53497PAD, HOOD HINGE, NO.1

main53497-10020×4iACN1#,SXN1#199807

main53497-12050×4iACN1#,SXN1#199807

53510LOCK ASSY, HOOD

main53510-44040iSXN10;ACN1#,SXN15..SU;SXN15..STD..NOG199807

main53510-44090iACN1#,SXN15..STD200104

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057iACN1#,SXN1#199807

main90506-12067iACN1#,SXN1#199807

main90506-20065iACN1#,SXN1#199807

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-44010-C0iACN1#,SXN1#..NOG,S199807

BLACK,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-44050iACN1#,SXN1#199807

827113F040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F040

8271237210CLAMP, WIRING HARNESS

main82712-37210

9010508087

main90105-08087

9011906423

main90119-06423

9095901334

main90959-01334

9356755014

main93567-55014

16 parts on this diagram · 1 diagram in section
