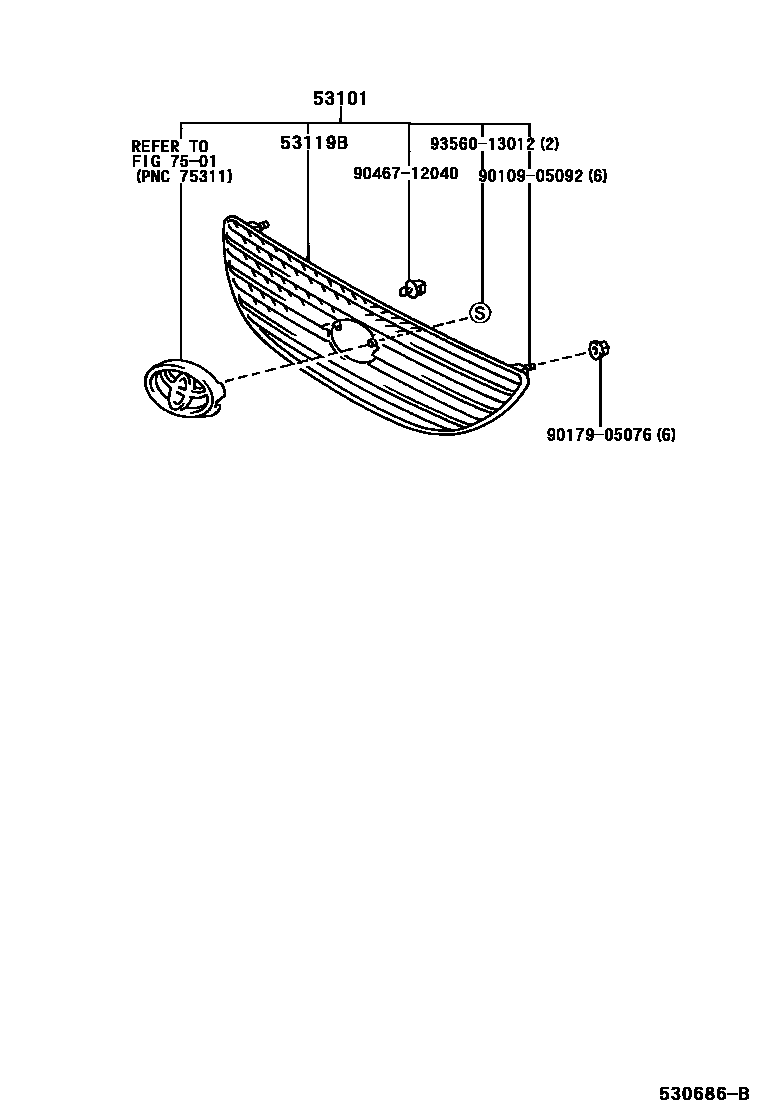

RADIATOR GRILLE

0001 1 0002 1 0003 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-44060iSXN1#..STD199807-200104

main53101-44100iACN1#,SXN1#..SU199906

main53101-44150iACN1#,SXN15..STD200104

53119BPROTECTOR, RADIATOR GRILLE

main53119-30140×2iACN1#;SXN1#..SU;SXN15..STD..(L,S,X)199906

main53119-44020iSXN1#..STD199807-200104

main53119-44030iACN1#,SXN1#..SU199906

main53119-44050iACN1#,SXN15..STD200104

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010905092

main90109-05092

9017905076

main90179-05076

9046712040

main90467-12040

9356013012

main93560-13012

7 parts on this diagram · 3 diagrams in section
