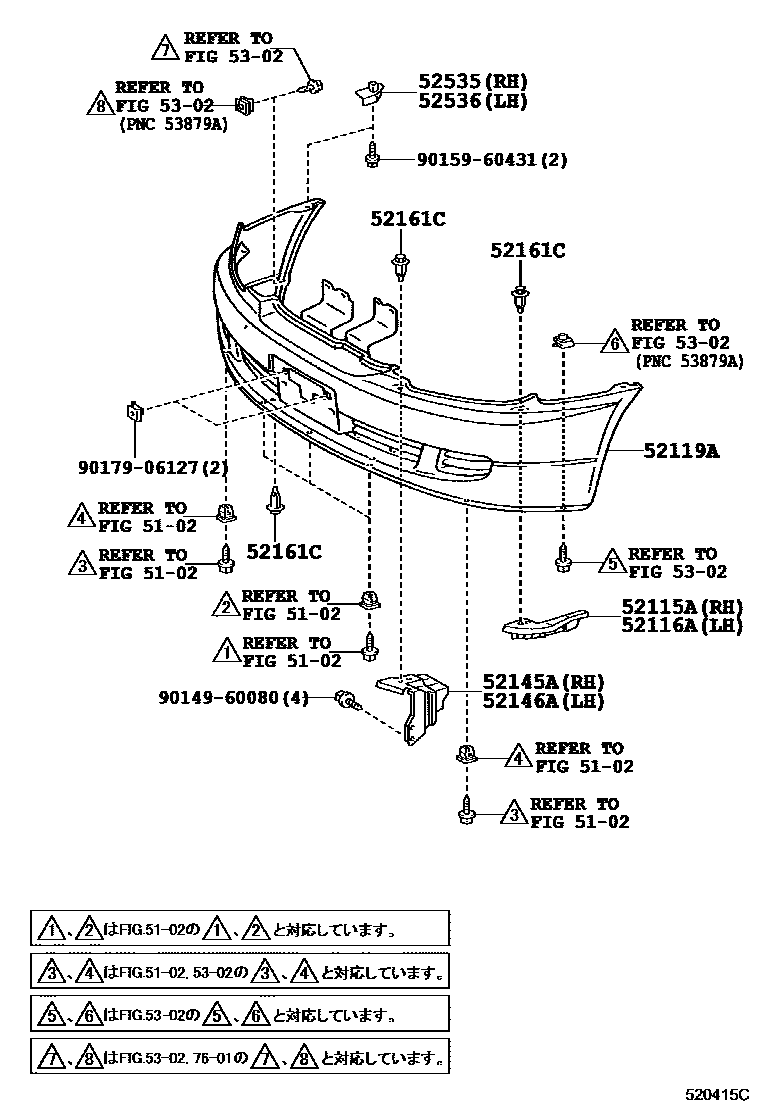

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-44030iACN1#,SXN1#199807

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-44030iACN1#,SXN1#199807

52119ACOVER, FRONT BUMPER

main52119-44110-A0iSXN1#..STD199807-200104

WHITE PM,042

main52119-44110-B0iSXN1#..STD199807-200104

SILVER ME.,1C0

main52119-44110-B1iSXN1#199807-199906

DK BLUISH GRAY MICA,191

main52119-44110-C0iSXN1#..STD..NOG199811

main52119-44110-D0iSXN1#..STD199807-200104

SU.RED MC,3J7

main52119-44110-D1iSXN1#..STD..NOG199812

main52119-44110-F0iSXN1#..STD199906-200104

GOLD ME.,585

main52119-44110-G0iSXN1#..STD..NOG199812

main52119-44110-H0iSXN1#..STD199807-200104

DK.TURQUOISE MC.,760

main52119-44110-J0iSXN1#199807-199906

DK.BLUE M.M.,8L7

main52119-44120-A0iSXN1#..STD199807-200104

main52119-44120-B0iSXN1#..STD199807-200104

main52119-44120-B1iSXN1#199807-199906

main52119-44120-C0iSXN1#..STD199906-200104

main52119-44120-D0iSXN1#..STD199807-200104

main52119-44120-D1iSXN1#..STD..NOG200001

main52119-44120-F0iSXN1#..STD199906-200104

main52119-44120-G0iSXN1#..STD..NOG199812

main52119-44120-H0iSXN1#..STD199807-200104

main52119-44120-J0iSXN1#199807-199906

main52119-44150-A0iACN1#,SXN1#..SU199906

WHITE PM,042

main52119-44150-B0iACN1#,SXN1#..SU199906

SILVER ME.,1C0

main52119-44150-B1iACN1#,SXN15..SU200104

GRAY ME.,1D2

main52119-44150-C1iSXN1#..SU199906-200104

BLACK ME,205

main52119-44150-C2iACN1#,SXN15..SU200104

BLACK,202

main52119-44150-F0iSXN1#..SU199906-200104

GOLD ME.,585

main52119-44150-F1iACN1#,SXN15..SU200104

CHAMPAGNE ME.,583

main52119-44150-J0iSXN1#..SU199906-200104

MI.BLUE MM,8J2

main52119-44160-A0iACN1#,SXN15..SU200104

main52119-44160-B0iSXN1#..SU199906-200104

main52119-44160-B1iACN1#,SXN15..SU200104

main52119-44160-C1iSXN1#..SU199906-200104

main52119-44160-C2iACN1#,SXN15..SU200104

main52119-44160-F0iSXN1#..SU199906-200104

main52119-44160-F1iACN1#,SXN15..SU200104

main52119-44160-J0iSXN1#..SU199906-200104

main52119-44250-A0iACN1#,SXN15..STD..(L,X)200104

WHITE PM.,042

main52119-44250-B0iACN1#,SXN15..STD..(L,X)200104

SILVER ME.,1C0

main52119-44250-C0iACN1#,SXN15..STD..(L,X)200104

BLACK,202

main52119-44250-D0iACN1#,SXN15..STD..(L,X)200104

BORDEAUX MC.,3P2

main52119-44250-F0iACN1#,SXN15..STD..(L,X)200104

CHAMPAGNE ME.,583

main52119-44250-J0iACN1#,SXN15..STD..(L,X)200104

BLUE M.M.,8P5

main52119-44260-A0iACN1#,SXN15..STD..(L,X)200104

main52119-44260-B0iACN1#,SXN15..STD..(L,X)200104

main52119-44260-C0iACN1#,SXN15..STD..(L,X)200104

main52119-44260-D0iACN1#,SXN15..STD..(L,X)200104

main52119-44260-F0iACN1#,SXN15..STD..(L,X)200104

main52119-44260-J0iACN1#,SXN15..STD..(L,X)200104

main52119-44270-A0iACN1#,SXN15..STD..S200104

WHITE PM.,042

main52119-44270-B0iACN1#,SXN15..STD..S200104

SILVER ME.,1C0

main52119-44270-C0iACN1#,SXN15..STD..S200104

BLACK,202

main52119-44270-F0iACN1#,SXN15..STD..S200104

CHAMPAGNE ME.,583

main52119-44280-A0iACN1#,SXN15..STD..S200104

main52119-44280-B0iACN1#,SXN15..STD..S200104

main52119-44280-C0iACN1#,SXN15..STD..S200104

main52119-44280-F0iACN1#,SXN15..STD..S200104

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-44030iACN1#,SXN1#199807

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-44030iACN1#,SXN1#199807

52161CPIECE, FRONT BUMPER

main52161-44010-C0×7iSXN1#199807-199906

BLACK,042 ,1C0 ,191 ,3J7 ,760 ,8L7

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-44030iACN1#,SXN1#199807

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-44030iACN1#,SXN1#199807

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9014960080

main90149-60080

9015960431

main90159-60431

9017906127

main90179-06127

13 parts on this diagram · 5 diagrams in section
