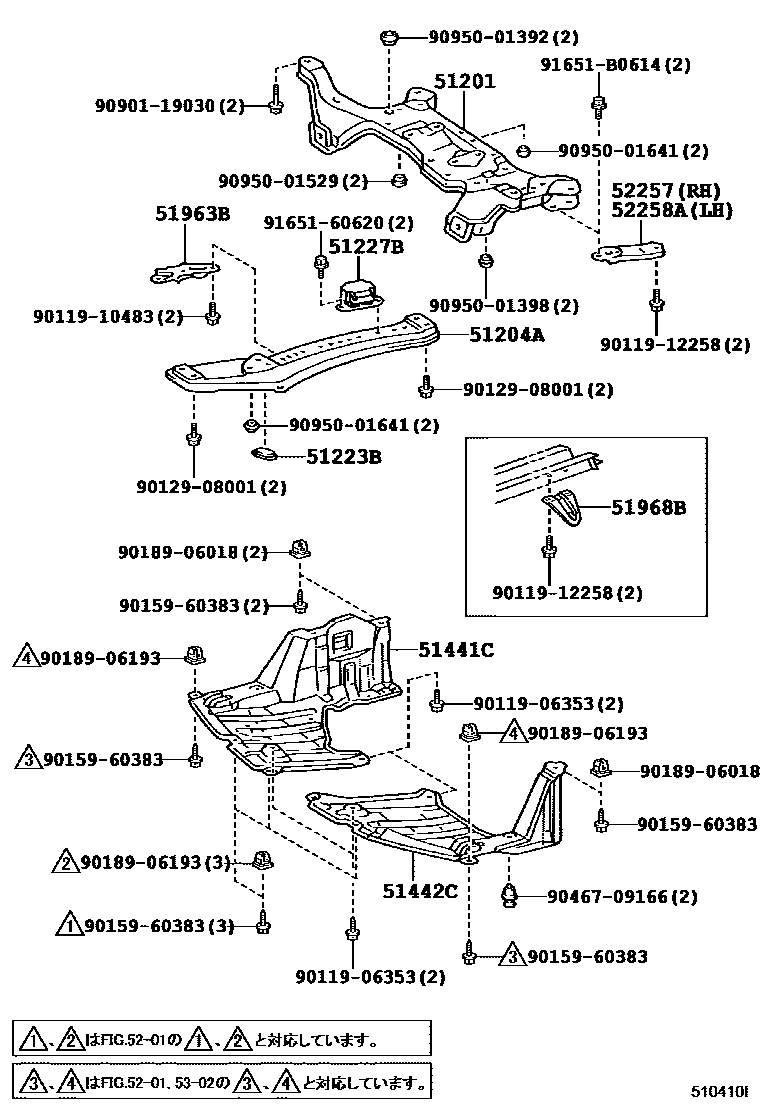

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20290iACN15,SXN15199807

main51201-20320iACN10,SXN10199807

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20111iACN10,SXN10199807

main51204-20121iACN15,SXN15199807

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iACN1#,SXN1#199807

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-44010iACN10,SXN10199807

51441CCOVER, ENGINE UNDER, RH

main51441-20380iACN1#,SXN1#..STD199807

main51441-44020iACN1#,SXN1#..SU199906

51442CCOVER, ENGINE UNDER, LH

main51442-20450iACN1#,SXN1#..STD199807

main51442-44030iACN1#,SXN1#..SU199906

51963BHOOK, TRANSPORT, FRONT RH

main51963-20130iACN1#,SXN1#199807

51968BHOOK, TRANSPORT, REAR LH

main51968-44010iACN1#,SXN1#..STD199807

main51968-44030iACN1#,SXN1#..SU199906

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-44010iACN10,SXN10..STD199807

main52257-44020iACN15,SXN15..STD199807

main52257-44030iACN10,SXN10..SU199906

main52257-44040iACN15,SXN15..SU199906

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-44010iACN10,SXN10..STD199807

main52258-44020iACN15,SXN15..STD199807

main52258-44030iACN10,SXN10..SU199906

main52258-44040iACN15,SXN15..SU199906

9011906353

main90119-06353

9011910483

main90119-10483

9011912258

main90119-12258

9012908001

main90129-08001

9015960383

main90159-60383

9018906018

main90189-06018

9018906193

main90189-06193

9046709166

main90467-09166

9090119030

main90901-19030

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

9165160620

main91651-60620

91651B0614

main91651-B0614

25 parts on this diagram · 2 diagrams in section
