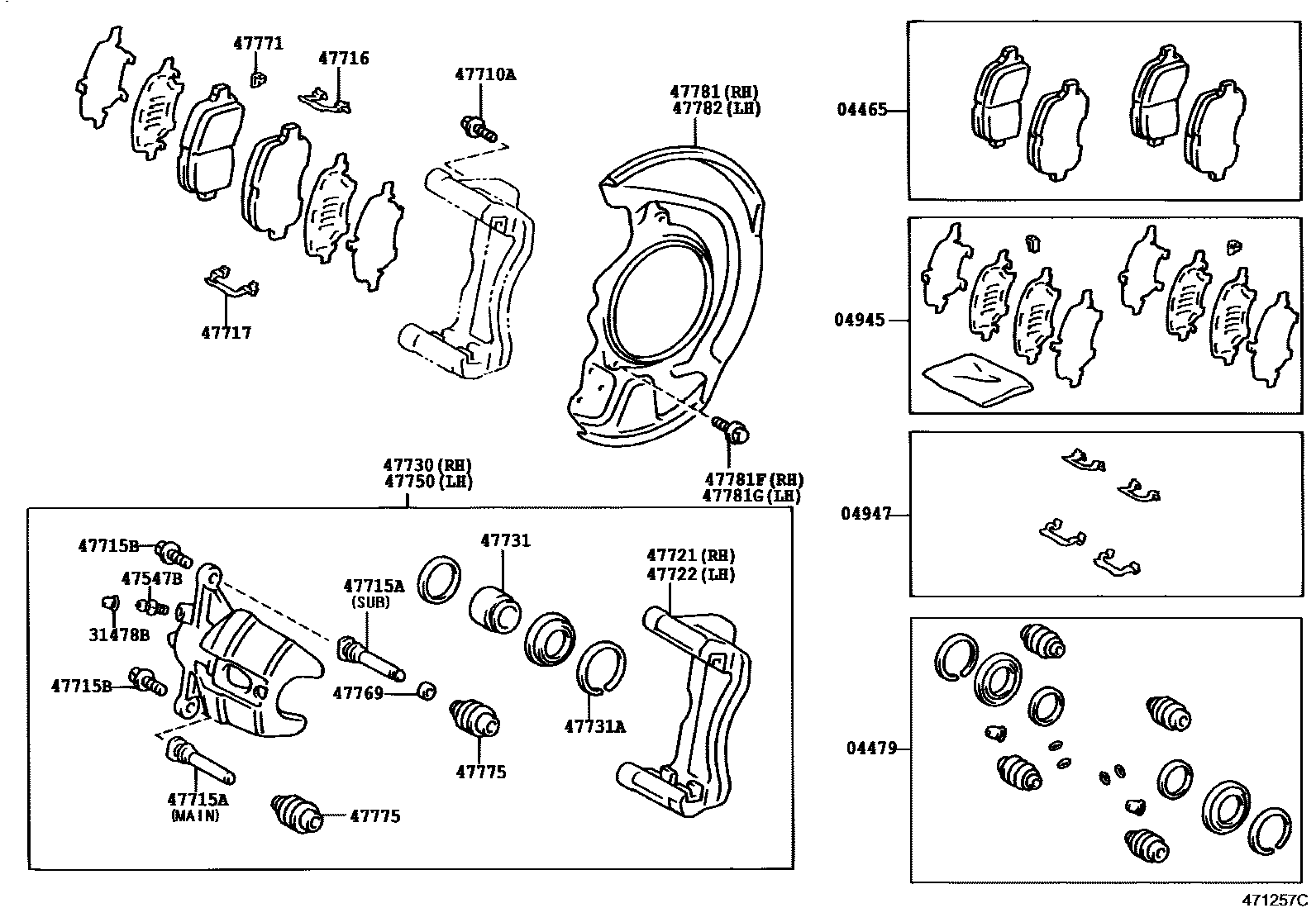

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33120iSXN1#199807-199812

main04465-33121iACN1#,SXN1#199812

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-33140iSXN1#199807-200104

sub04479-33130

main04479-44050iACN1#,SXN15200104

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33040iSXN1#199807-200101

main04945-44030iSXN1#200101-200104

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33120iSXN1#199807-199907

main04947-33160iACN1#,SXN1#199907

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iACN1#,SXN1#199807-200307

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iACN1#,SXN1#199807-200307

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iACN1#,SXN1#199807

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48050×2iACN1#200303-200307

main47715-48010×2iACN1#,SXN1#199807-200303

main47715-48020×2iACN1#,SXN1#199807-200303

main47715-48050×2iACN1#200303-200307

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08346×4iACN1#,SXN1#199807-200307

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33080×2iACN1#,SXN1#199807-200307

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33080×2iSXN1#199807-199907

main47717-33070×2iACN1#,SXN1#199907-200307

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33080iACN1#,SXN1#199807-200303

main47721-33081iACN1#200303-200307

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-33080iACN1#,SXN1#199807-200303

main47721-33081iACN1#200303-200307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33120iACN1#,SXN1#199807-200307

47731PISTON, FRONT DISC BRAKE

main47731-33050×2iACN1#,SXN1#199807-200307

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001×2iACN1#,SXN1#199807-200307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33120iACN1#,SXN1#199807-200307

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020×2iACN1#,SXN1#199807-200307

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33010×2iACN1#,SXN1#199807-200307

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-33020×4iACN1#,SXN1#199807-200307

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33020iACN1#,SXN1#199807

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227×4iACN1#,SXN1#199807

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227×4iACN1#,SXN1#199807

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33020iACN1#,SXN1#199807

24 parts on this diagram · 2 diagrams in section
