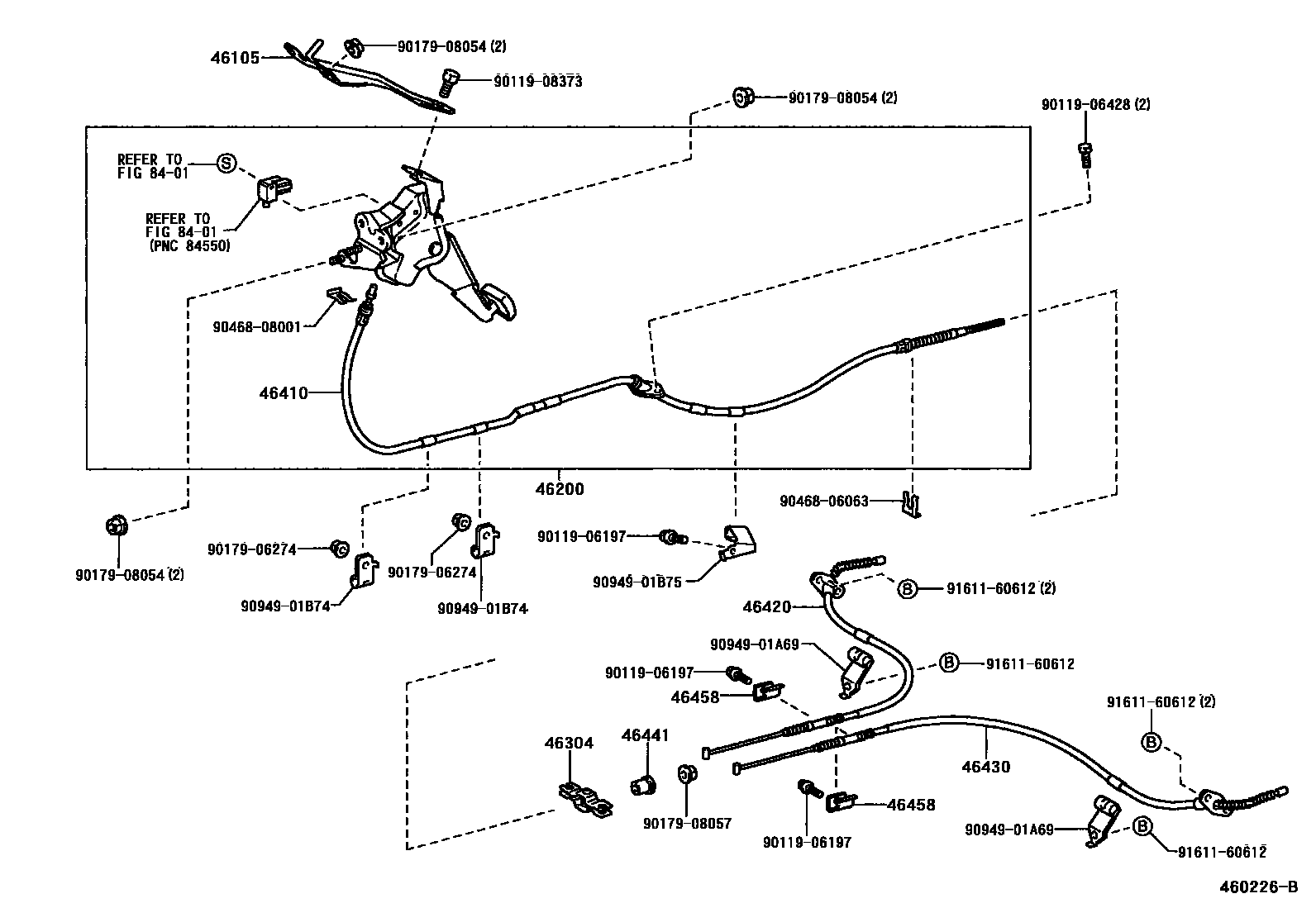

PARKING BRAKE & CABLE

0001 1 0002 1

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46133-44010199807

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-44010199807-200208

main46200-44011200208

main46200-44020199906-200208

main46200-44021200208

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010199807

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-44030199807-200208

main46410-44060200208

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-44020199807

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-44020199807

46441NUT, WIRE ADJUSTING, NO.1

main46441-35020199807

46458RETAINER, CABLE

main46458-28010199807

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906197

main90119-06197

9011906428

main90119-06428

9011908373

main90119-08373

9017906274

main90179-06274

9017908054

main90179-08054

9017908057

main90179-08057

9046806063

main90468-06063

9046808001

main90468-08001

9094901A69

main90949-01A69

9094901B74

main90949-01B74

9094901B75

main90949-01B75

9161160612

main91611-60612

21 parts on this diagram · 2 diagrams in section
