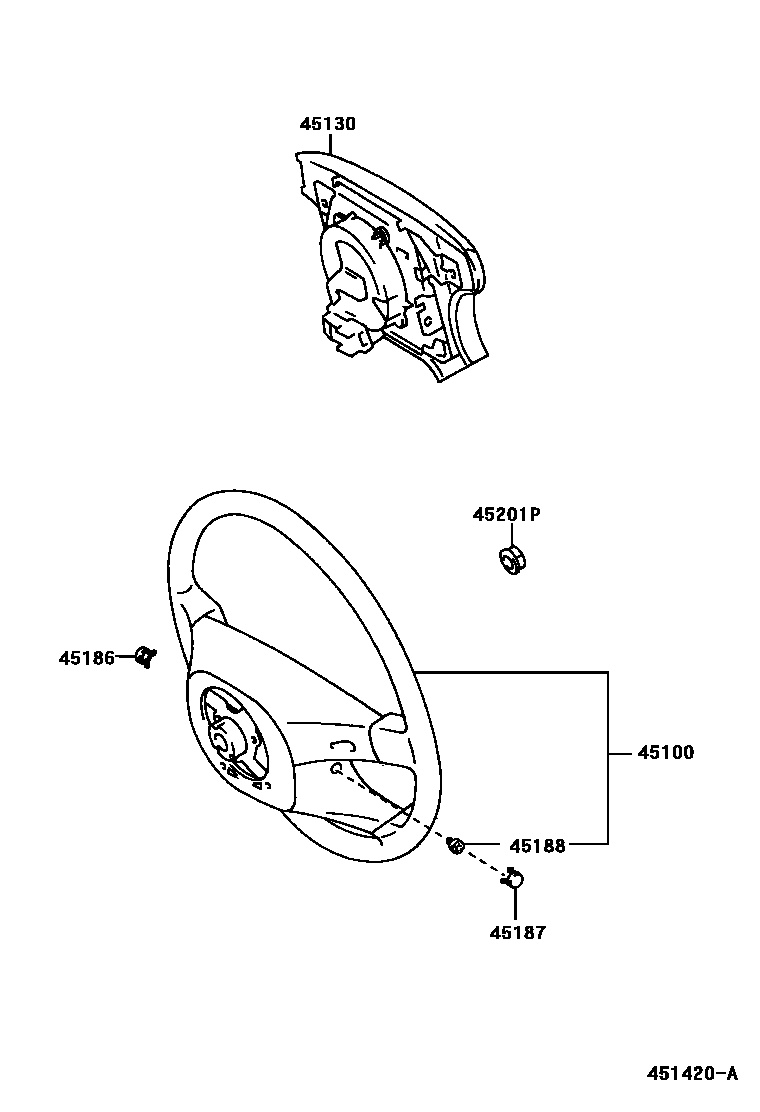

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-44040-B0iSXN1#199807-200104

main45100-44040-E0iSXN1#..STD200012-200104

main45100-44040-E0iSXN1#..STD..NOG200001

main45100-44050-B0iSXN1#..SU;SXN10..D4199807-200104

main45100-44150-B0iACN1#,SXN15..S200104

main45100-44160-E0iACN1#,SXN15..X200104

main45100-44170-E0iACN1#,SXN15..L,X200104

main45100-44180-E0iACN1#,SXN15..L,X200104

45130BUTTON ASSY, HORN

main45130-28440-E0iACN1#,SXN15..L,X200104-200307

SANDAL WOOD,TRIM0#

main45130-44040-B0iSXN1#199807-200104

BLUISH GRAY,TRIM1#

main45130-44040-E0iSXN1#..STD..NOG200001

main45130-44040-E0iSXN1#..STD200012-200104

main45130-44070-B0iACN1#,SXN15..S200104-200307

BLUISH GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33050-B0iACN1#,SXN1#..NOG,S199807

BLUISH GRAY,TRIM1#

main45186-33050-E3iSXN1#..STD200012-200104

main45186-33050-E3iSXN1#..STD..NOG200001

main45186-33050-E3iACN1#,SXN15..L,X200104

SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-33050-B0iACN1#,SXN1#..NOG,S199807

BLUISH GRAY,TRIM1#

main45186-33050-E3iSXN1#..STD..NOG200001

main45186-33050-E3iACN1#,SXN15..L,X200104

SANDAL WOOD,TRIM0#

main45186-33050-E3iSXN1#..STD200012-200104

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iACN1#,SXN15..L,X200104

main90148-60007iACN1#,SXN15..S200104

main90148-60031iSXN1#199807-200104

45201PNUT, STEERING WHEEL SET

main90179-12071iACN1#,SXN1#199807

6 parts on this diagram · 2 diagrams in section
