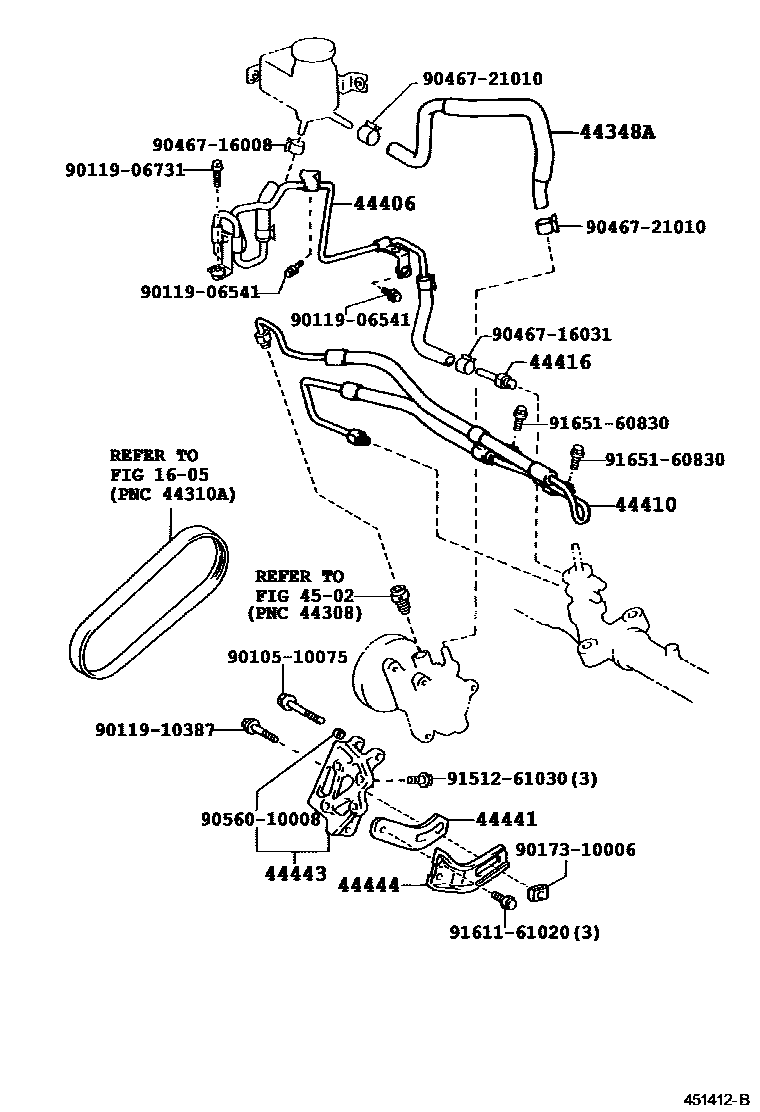

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-44010iSXN10..STD..EFI199807-200104

main44348-44020iSXN15..STD199807-200208

main44348-44040iSXN10..D4199807-200104

main44348-44050iSXN10..SU199906-200104

main44348-44060iSXN15..SU199906-200208

main44348-44080iACN1#..STD200104

main44348-44090iACN1#..SU200104

44406TUBE SUB-ASSY, RETURN

main44406-44011iSXN10..STD199807-200104

main44406-44021iSXN15..STD199807-200104

main44406-44022iSXN15..STD200104-200208

main44406-44090iSXN10..SU199906-200104

main44406-44100iSXN15..SU199906-200104

main44406-44101iSXN15..SU200104-200208

main44406-44150iACN10..STD200104

main44406-44160iACN10..SU200104

main44406-44170iACN15..STD200208

main44406-44180iACN15..SU200208

44410TUBE ASSY, PRESSURE FEED

main44410-44010iSXN10..EFI199807-200104

main44410-44020iSXN15199807-200208

main44410-44080iSXN10..D4199807-200104

main44410-44150iACN10200104

main44410-44160iACN15200208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iACN1#,SXN1#199807

44441BRACKET, PUMP, FRONT

main44441-32010iSXN10199807-200104

44443BRACKET, PUMP

main44443-20050iSXN1#199807-200208

44444STAY, PUMP, REAR

main44444-20030iSXN1#199807-200208

4502

9010510075

main90105-10075

9011906541

main90119-06541

9011906731

main90119-06731

9011910387

main90119-10387

9017310006

main90173-10006

9046716008

main90467-16008

9046716031

main90467-16031

9046721010

main90467-21010

9056010008

main90560-10008

9151261030

main91512-61030

9161161020

main91611-61020

9165160830

main91651-60830

21 parts on this diagram · 5 diagrams in section
