DISC WHEEL & WHEEL CAP

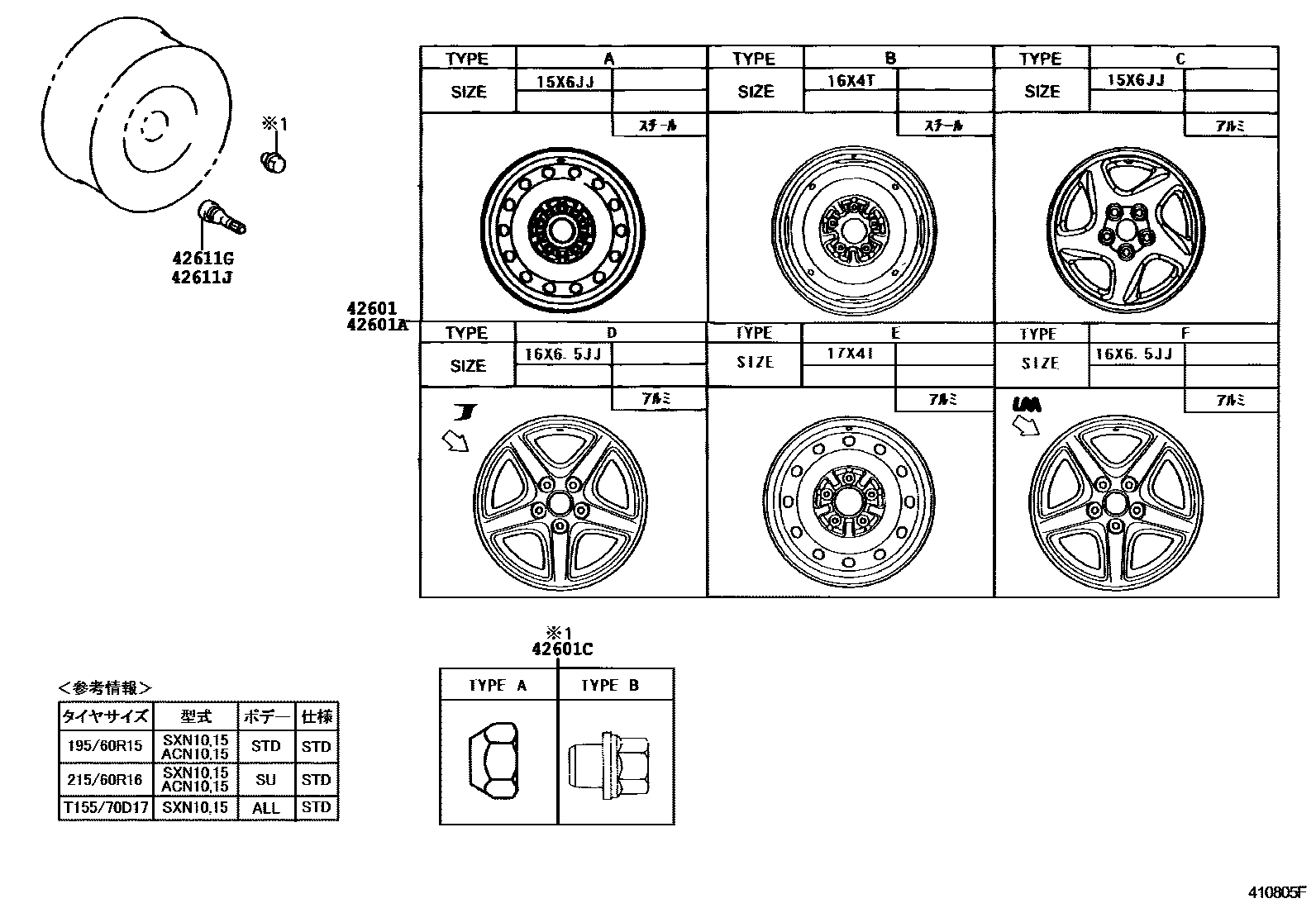

Parts diagram
42601WHEEL, DISC
main42611-33010-01×4i199807
sub42611-33011
main42611-44040×4i199807
main42611-48020×4i199906
main42611-48030×4i199906
42601AWHEEL, DISC (FOR SPARE)
main42611-28210i199807
sub42611-28211
main42611-50090i199906
sub42611-50091
42601CNUT, HUB (FOR AXLE)
main90942-01007×20i199807
main90942-01058×20i199807
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009×4i199807
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i199807

5 parts on this diagram · 3 diagrams in section
