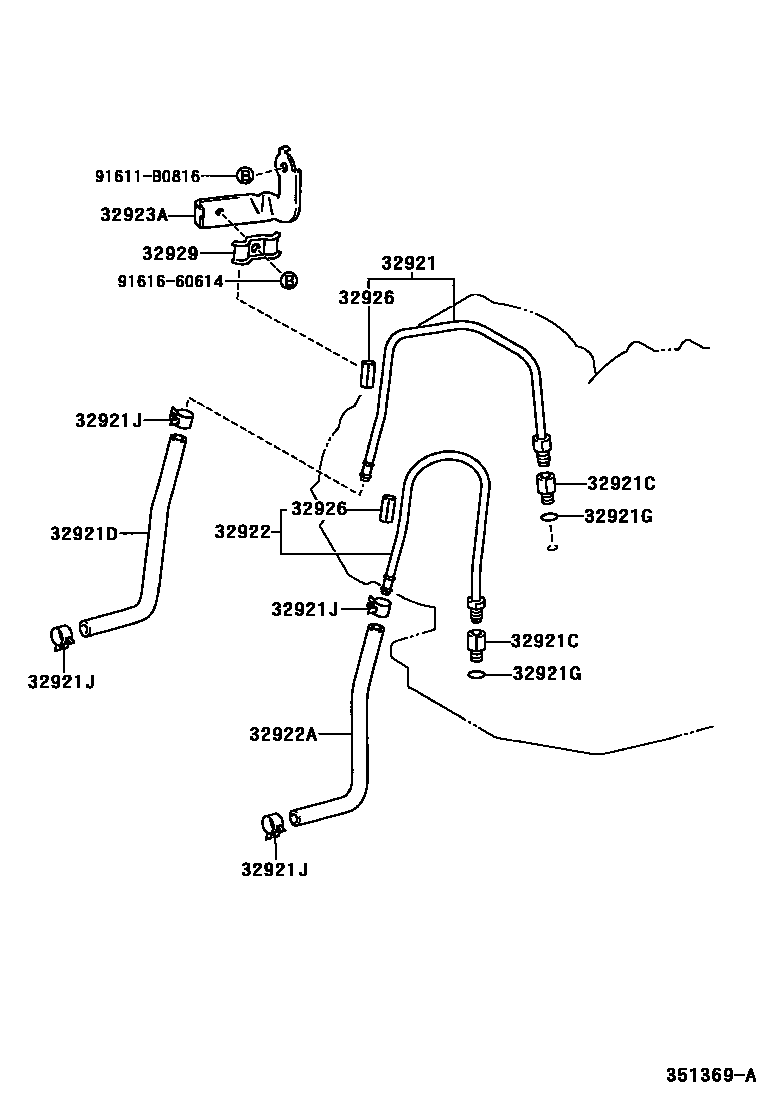

OIL COOLER & TUBE (ATM)

0001 1A247E,A248E,A248F 0003 1U240E 0004 1A243F

32921TUBE, OIL COOLER INLET, NO.1

main32921-44050iSXN15199807-200208

main32921-44060iACN1#;SXN10..EFI199807

main32921-44080iSXN10..D4199807-200104

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iSXN10..D4199807-200104

main90404-16031iSXN15199807-200208

main90404-16032×2iACN1#;SXN10..EFI199807-200308

main90407-16010iSXN10..D4199807-200104

main90407-16036iSXN15199807-200208

32921DHOSE(FOR OIL COOLER INLET)

main32942-35011iSXN10..D4199807-200104

main90445-17115iSXN15199807-200208

main90445-17117iACN1#;SXN10..EFI199807

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iSXN15;SXN10..D4199807-200208

main90301-11006×2iACN1#;SXN10..EFI199807-200308

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iACN10,SXN1#199807-200204

main90467-16022×4iACN1#,SXN15200204

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-44010iSXN15199807-200208

main32922-44050iACN1#;SXN10..EFI199807

main32922-44070iSXN10..D4199807-200104

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iACN1#;SXN10..EFI199807

main90445-17106iSXN15;SXN10..D4199807-200208

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-44020iACN1#;SXN10..EFI199807

main32923-44030iSXN10..D4199807-200104

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010×2iACN1#,SXN1#199807

32929CLAMP, FLEXIBLE HOSE, NO.2

main90462-12074iACN1#;SXN10..EFI199807

91611B0816

main91611-B0816

9161660614

main91616-60614

12 parts on this diagram · 3 diagrams in section
