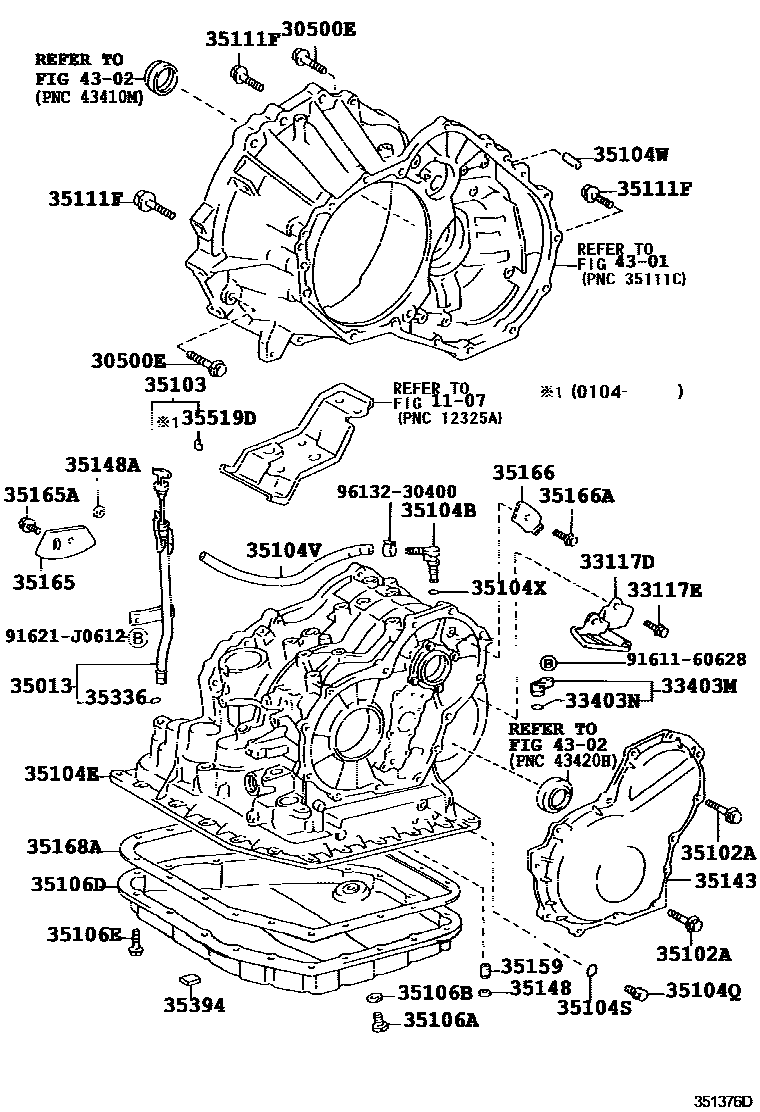

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A247E,A248E,A248F 0003 1U240E 0004 1A243F

1107

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSXN1#..EFI199807-200208

sub91641-H0820

main90105-10077iSXN1#199807-200208

main90119-12168iACN1#200104

main91512-61050iACN1#200104

main91512-61065iACN1#200104

main91619-61245iSXN1#199807-200208

main91651-41022iSXN10..D4199807-200104

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iSXN10..EFI;ACN1#,SXN15199807

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iSXN10..EFI;ACN1#,SXN15199807

sub91641-H0820

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iACN1#,SXN1#199807

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iACN1#,SXN1#199807

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-44050iSXN15199807-200208

main35013-44060iACN1#;SXN10..EFI199807

main35013-44080iSXN10..D4199807-200104

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20031iSXN15199807-200208

main35102-32010iSXN10..D4199807-200104

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198iACN1#;SXN10..EFI199807-200308

main90105-08065iSXN15199807-200208

main90105-08068iSXN15199807-200202

sub90105-08333

main90105-08071iSXN10..D4199807-200104

main90105-08333iSXN15200202-200208

sub91551-C0835

main91511-80625iACN1#;SXN10..EFI199807-200308

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-44040iSXN10..EFI199807-200104

main35103-44050iSXN10..D4199807-200104

main35103-44060iSXN15199807-200208

main35103-44070iACN1#200104

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iACN1#,SXN15199807-200308

main90930-03132iSXN10..EFI199807-200104

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20110iSXN10..EFI199807-200104

main35104-32080iSXN10..D4199807-200104

main35104-44020iACN1#200104-200308

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iSXN10..D4199807-200308

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iSXN10..D4199807-200308

35104VHOSE (FOR BREATHER PLUG)

main90445-11140iSXN10..D4199807-200104

sub90447-11090

main90447-11017iSXN15199807-200208

main90447-11040iACN1#;SXN10..EFI199807-200308

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iSXN10..D4199807-200009

main90250-10021iSXN15199807-200208

main90250-10021iACN1#;SXN10..EFI199807-200308

main90250-10036iSXN10..D4200009-200104

sub90250-10232

main90250-11001iSXN15199807-200208

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iSXN10..D4199807-200104

main90301-06010iACN1#;SXN10..EFI199807-200308

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iSXN15199807-200208

sub90341-10011

main90341-10011iACN1#;SXN10..EFI199807-200308

main90341-18016iSXN10..D4199807-200104

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iSXN10..EFI;ACN1#,SXN15199807-200308

main90430-18008iSXN10..D4199807-200104

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iSXN15199807-200208

main35106-12100iACN1#200104-200308

main35106-12120iSXN10..EFI199807-200104

sub35106-12090

main35106-21020iSXN10..D4199807-200102

sub35106-33030

sub35330-06010

main35106-33030iSXN10..D4200102-200104

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iACN1#,SXN1#199807-200308

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065iSXN15199807-200208

main90105-08066iSXN15199807-200208

main90105-08068iSXN15199807-200202

sub90105-08333

main90105-08071iACN15199807-200308

main90105-08233iSXN10..D4199807-200104

main90105-08288iACN1#;SXN10..EFI199807-200308

main90105-08333iSXN15199807-200308

sub91551-C0835

main90105-08353iSXN10..D4199807-200104

35143COVER, TRANSMISSION CASE, REAR

main35143-12030iACN1#;SXN10..EFI199807-200308

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iSXN10..D4199807-200104

main35148-16010iSXN10..EFI;ACN1#,SXN15199807-200308

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iSXN10..EFI;ACN1#,SXN15199807-200308

35159GASKET, BRAKE DRUM

main35159-20010iSXN10..EFI;ACN1#,SXN15199807-200308

main35159-21010iSXN10..D4199807-200104

35165PLATE, TRANSMISSION CASE, NO.1

main35165-20010iSXN1#..EFI199807-200208

main35165-44010iACN1#200104-200308

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iSXN10..EFI;ACN1#,SXN15199807-200308

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12020iSXN10..EFI;ACN1#,SXN15199807-200308

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iSXN10..EFI;ACN1#,SXN15199807-200308

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iSXN15199807-200112

main35168-12030iSXN10..EFI199807-200104

main35168-12060iACN1#200104-200308

main35168-12080iSXN15200112-200208

main35168-21010iSXN10..D4199807-200104

sub35168-21011

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACN1#,SXN1#199807

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iSXN1#..EFI199807-200308

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-16040iSXN15199807-200208

main35519-20030iACN10200104-200208

main35519-30010iSXN10..D4199807-200104

main35519-52010iACN1#200208

4301

4302

9161160628

main91611-60628

91621J0612

main91621-J0612

9613230400

main96132-30400

39 parts on this diagram · 3 diagrams in section
