TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

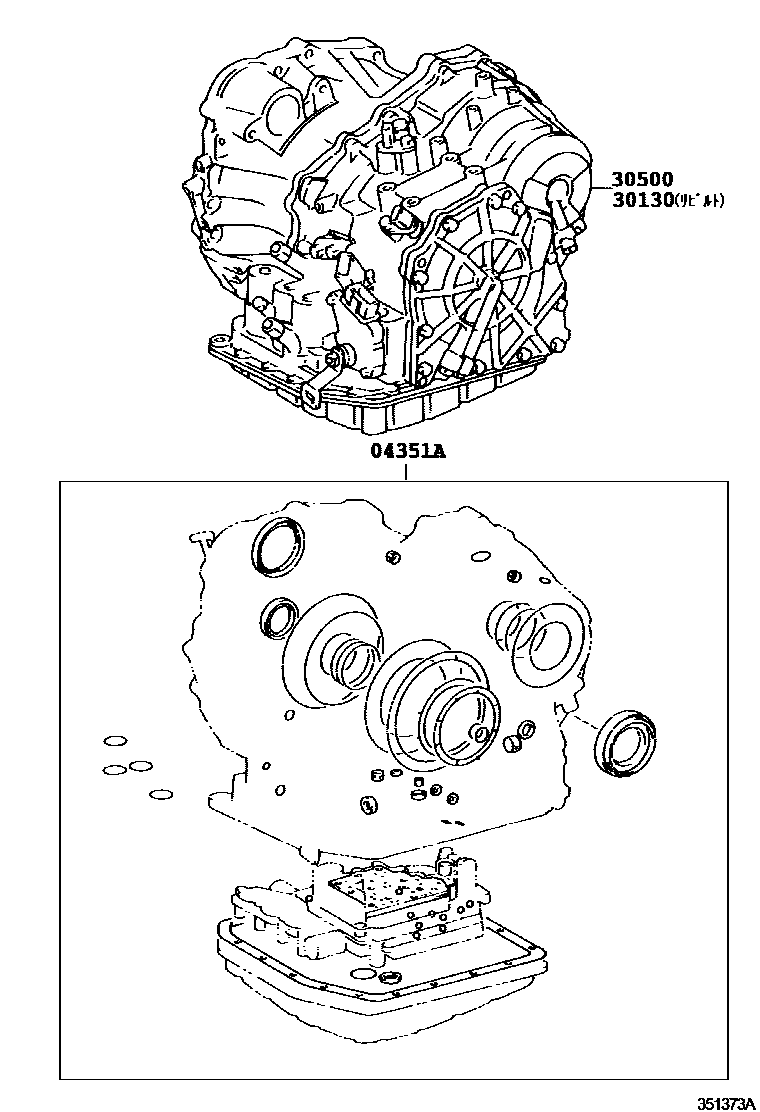

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-21011i199906-200104

main04351-21020i199807-200208

main04351-32070i199807-199810

main04351-32071i199810-200104

main04351-42020i199807-200104

main04351-44020i200104-200308

30130TRANSAXLE ASSY, REBUILT

main30130-44080i199807-200104

main30130-44090i199807-200104

main30130-44110i199807-200104

main30130-44120i199906-200104

main30130-44130i199906-200104

main30130-44170i200208-200308

main30130-44180i200104-200110

main30130-44181i200110-200308

main30130-44190i200104-200110

main30130-44191i200110-200308

main30130-44200i200104-200110

main30130-44201i200110-200208

main30130-44210i200104-200110

main30130-44211i200110-200208

main30130-44240i200208-200308

30500TRANSAXLE ASSY, AUTOMATIC

main30500-44080i199807-200104

main30500-44090i199807-200104

main30500-44110i199807-200104

main30500-44120i199906-200104

main30500-44130i199906-200104

main30500-44170i200208-200308

main30500-44180i200104-200110

main30500-44181i200110-200308

main30500-44190i200104-200110

main30500-44191i200110-200308

main30500-44200i200104-200110

main30500-44201i200110-200208

main30500-44210i200104-200110

main30500-44211i200110-200208

main30500-44240i200208-200308

3 parts on this diagram · 3 diagrams in section
