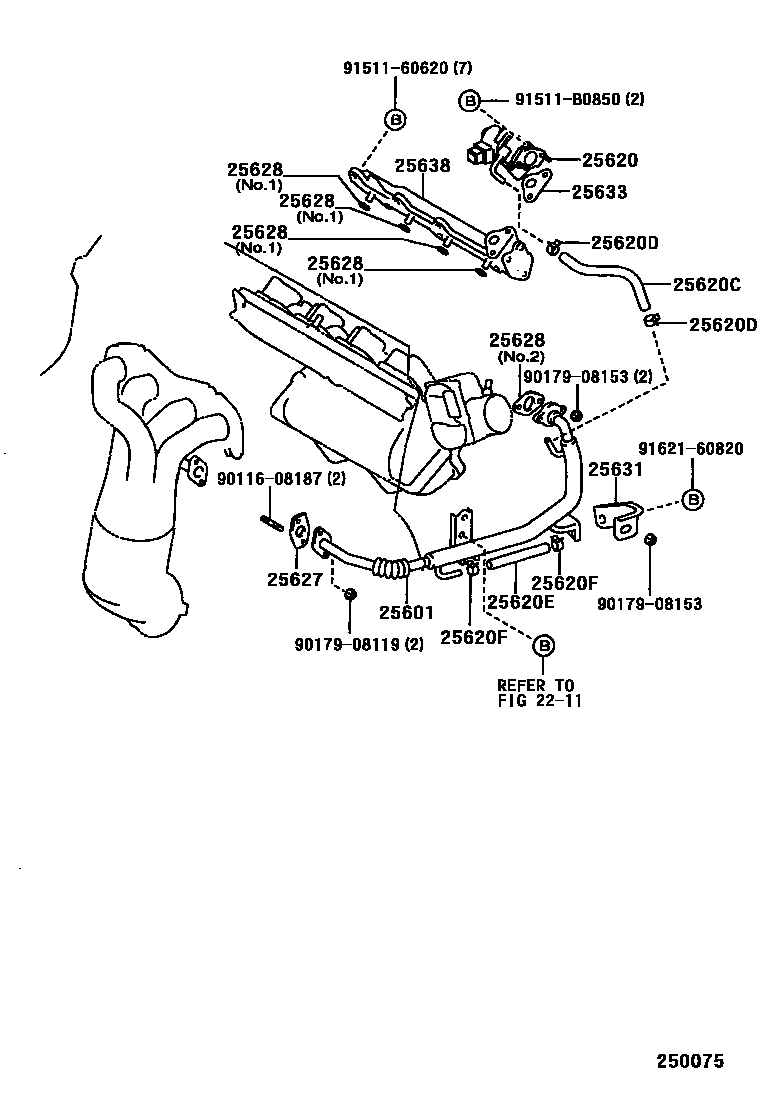

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25601PIPE SUB-ASSY, EGR, NO.1

main25611-28010i1AZFSE..ACN1#200104

main25611-74060i3SFE..SXN1#199807

main25611-74080i3SFSE..SXN10199807-200104

25620VALVE ASSY, EGR

main25620-28090i1AZFSE..ACN1#200104

main25620-74330i3SFE..SXN1#199807

main25620-74340i3SFSE..SXN10199807-200104

25620CHOSE, WATER BY-PASS, NO.1

main99555-10100i1AZFSE..ACN1#200104

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300×2i1AZFSE..ACN1#200104

25620EHOSE, WATER BY-PASS NO.2

main99555-10200i1AZFSE..ACN1#200104

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main96135-41300×2i1AZFSE..ACN1#200104

25627GASKET, EGR VALVE

main25627-74011i3SFE..SXN1#199807

main25627-74080i1AZFSE..ACN1#200104

main25627-74090i3SFSE..SXN10199807-200104

25628GASKET, EGR INLET

main25628-28010×4i1AZFSE..ACN1#200104

main25628-28030i1AZFSE..ACN1#200104

main25628-74010i3SFE..SXN1#199807

25631STAY, EGR PIPE, NO.1

main25631-28010i1AZFSE..ACN1#200104

25633GASKET, EGR VALVE

main25633-28010i1AZFSE..ACN1#200104

25638CHAMBER, EGR DELIVERY

main25638-28010i1AZFSE..ACN1#200104

9011608187

main90116-08187

9017908119

main90179-08119

9017908153

main90179-08153

9151160620

main91511-60620

91511B0850

main91511-B0850

9162160820

main91621-60820

18 parts on this diagram · 3 diagrams in section
