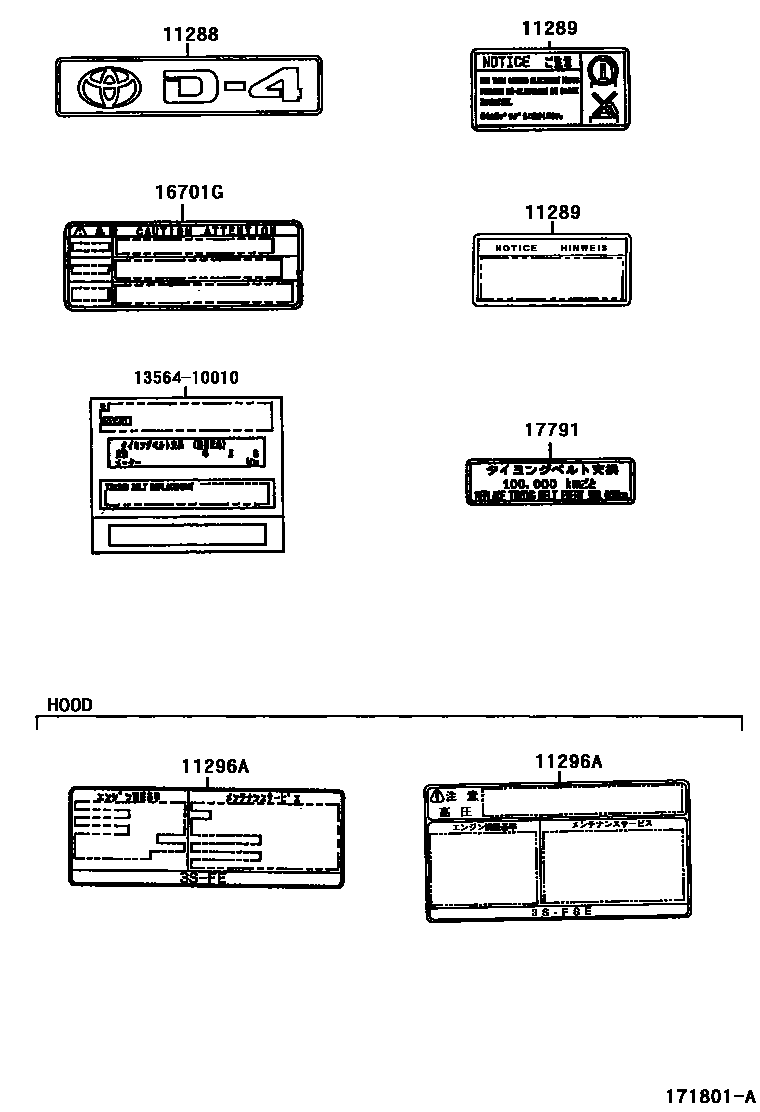

CAUTION PLATE & NAME PLATE (ENGINE)

11288PLATE, ENGINE SYSTEM

main11288-74100i3SFSE..SXN10199807-200104

11289PLATE, SPARK PLUG CAUTION

main11289-28010i1AZFSE..ACN1#200104

main11289-62020i3SFE..SXN1#199807-200208

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-28020i1AZFSE..ACN10200104-200205

main11296-28021i1AZFSE..ACN1#200205

main11296-74170i3SFE..SXN1#199807-200205

main11296-74171i3SFE..SXN15200205-200208

main11296-74200i3SFSE..SXN10199807-200104

16701GLABEL, CAUTION

main88723-20081i1AZFSE,3SF#..ACN1#,SXN1#199807

sub16793-31070

17791LABEL, MAINTENANCE INFORMATION

main17791-74040i3SF#..SXN1#199807-200208

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

6 parts on this diagram · 1 diagram in section
