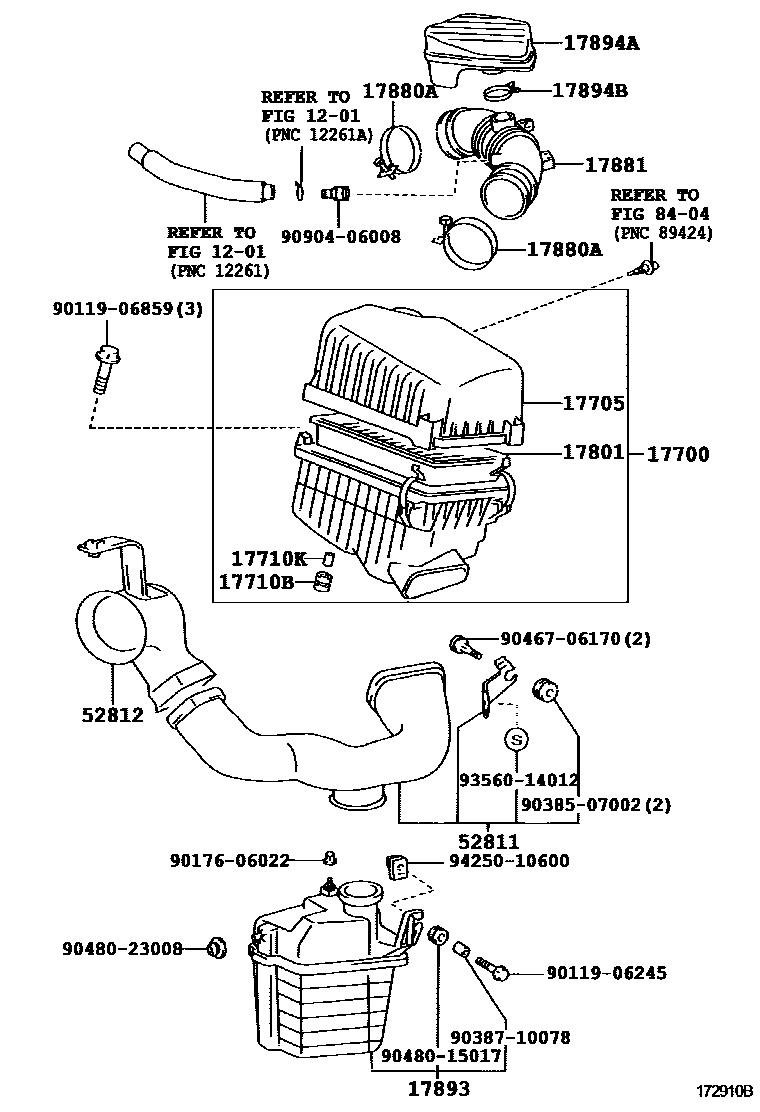

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

17700CLEANER ASSY, AIR

main17700-74581i3SFE..SXN1#199807-200208

main17700-74720i3SFSE..SXN10199807-200104

17705CAP SUB-ASSY, AIR CLEANER

main17705-74411i3SFE..SXN1#199807-200208

main17705-74520i3SFSE..SXN10199807-200104

17710BGROMMET

main90480-11014×3i3SFSE..SXN10199807-200104

17710KCOLLAR(FOR AIR CLEANER)

main90387-09064×3i3SFSE..SXN10199807-200104

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i3SF#..SXN1#199807-200208

17880HOSE ASSY, AIR CLEANER

main17880-74880i3SFE..SXN1#..STD199807-200208

main17880-74890i3SFSE..SXN10199807-200104

main17880-7A050i3SFE..SXN1#..SU199906-200208

17880ACLAMP, HOSE

main96111-10710×2i3SFE..SXN1#199807-200208

main96111-10750×2i1AZFSE..ACN1#200104

17881HOSE, AIR CLEANER, NO.1

main17881-28120i1AZFSE..ACN1#..SU200104

main17881-28130i1AZFSE..ACN1#..STD200104

17893RESONATOR, INTAKE AIR

main17893-16130i3SFE..SXN1#..STD199807-200208

main17893-74430i1AZFSE..ACN1#..STD200104

main17893-74500i1AZFSE..ACN1#..SU200104

17894BRACKET, RESONATOR

main17894-74150i3SFSE..SXN10199807-200104

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28010i1AZFSE..ACN1#200104

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10480i1AZFSE..ACN1#200104

main96111-10600i3SFSE..SXN10199807-200104

52811DUCT, COOL AIR INTAKE, NO.1

main52811-44070iSXN1#..EFI199807-200104

main52811-44080iSXN10..D4199807-200104

main52811-44110iSXN15200104-200208

52812DUCT, COOL AIR INTAKE, NO.2

main52812-44020iSXN1#..EFI199807-200104

main52812-44030iSXN10..D4199807-200104

main52812-44040iSXN15200104-200208

8404

9011906245

main90119-06245

9011906859

main90119-06859

9017606022

main90176-06022

9038507002

main90385-07002

9038710078

main90387-10078

9046706170

main90467-06170

9048015017

main90480-15017

9048023008

main90480-23008

9090406008

main90904-06008

9356014012

main93560-14012

9425010600

main94250-10600

27 parts on this diagram · 4 diagrams in section
