V-BELT

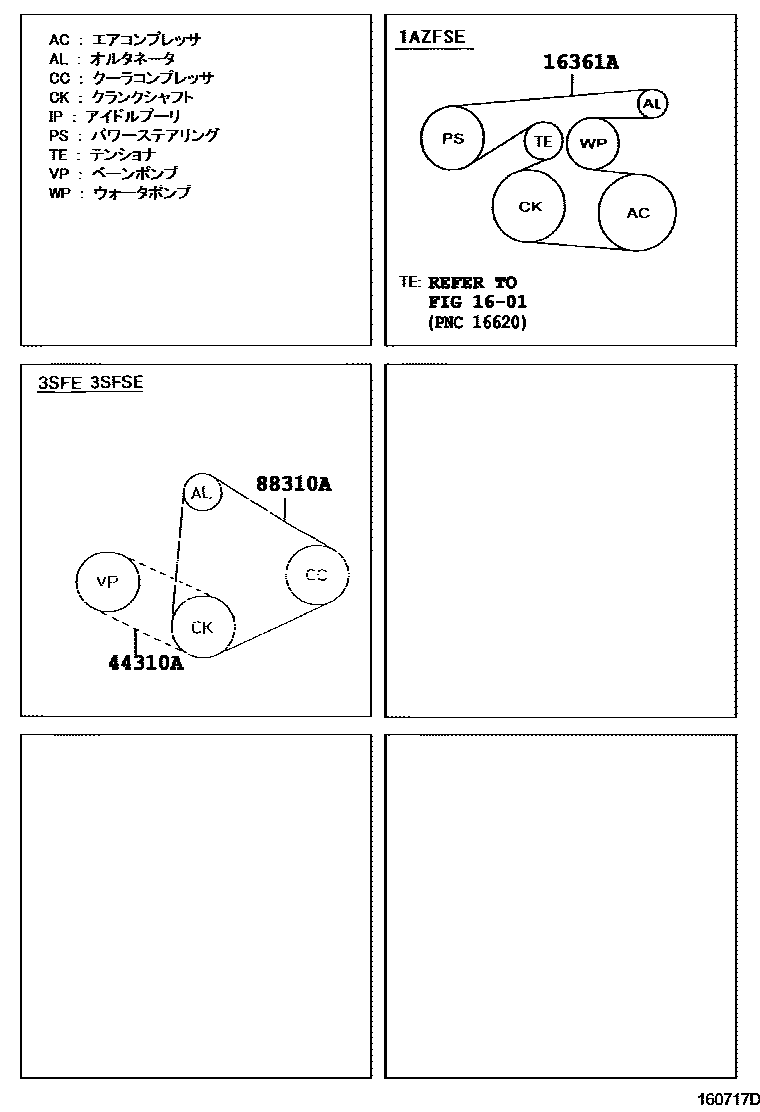

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02518i200104

44310ABELT, V(FOR VANE PUMP)

main99363-30760i199807-200208

main99363-90760i199807-200208

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99365-31080i199807-200208

4 parts on this diagram · 1 diagram in section
