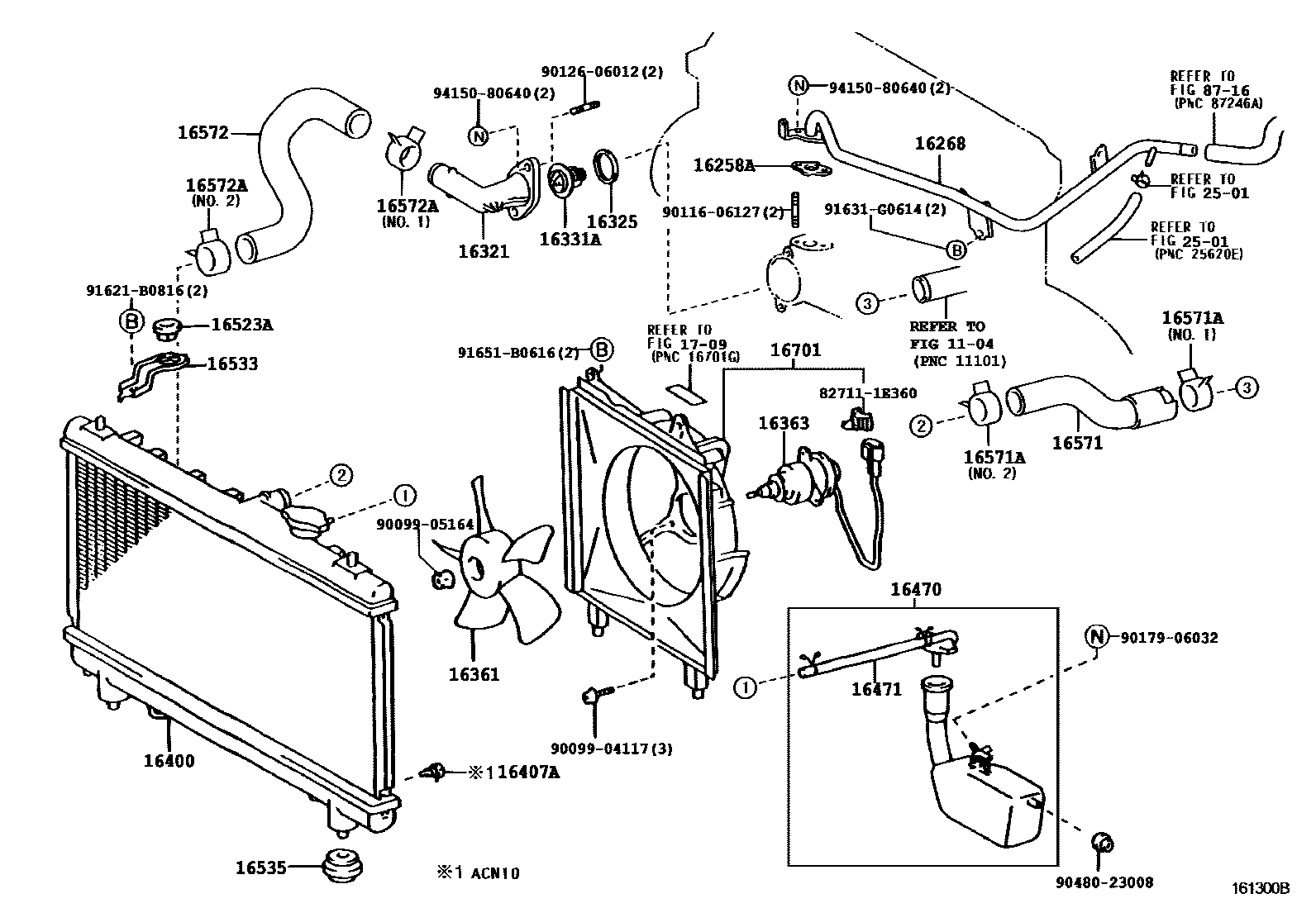

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1104

16258AGASKET(FOR HEATER RETURN)

main16258-28010i1AZFSE..ACN1#200104-200304

sub16258-28030

main16258-28011i1AZFSE..ACN1#200304-200307

sub16258-28030

16268PIPE, WATER BY-PASS, NO.1

main16268-28020i1AZFSE..ACN1#200104

main16268-74190i3SFE..SXN1#199807

main16268-74250i3SFSE..SXN10199807-200104

16321INLET, WATER

main16321-28010i1AZFSE..ACN1#200104

main16321-74050i3SF#..SXN1#199807

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1AZFSE..ACN1#200104-200307

main16325-63011i3SF#..SXN1#199807

16331ATHERMOSTAT

main90916-03090i3SF#..SXN1#199807

main90916-03127i1AZFSE..ACN1#200104

16361FAN

main16361-74140i3SF#..SXN1#199807-200208

16363MOTOR, COOLING FAN

main16363-74310i3SF#..SXN1#199807-199911

sub16363-74311

main16363-74311i3SF#..SXN1#199911-200208

16400RADIATOR ASSY

main16400-7A262i1AZFSE..ACN15200208

main16400-7A282i3SFE..SXN15199807-200208

main16400-7A610i1AZFSE..ACN10199807-200104

sub16400-7A282

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main90341-16016i3SFSE..SXN10199807-200104

16470TANK ASSY, RADIATOR RESERVE

main16470-74380i3SF#..SXN1#199807-200208

16471CAP SUB-ASSY, RESERVE TANK

main16405-74330i3SF#..SXN1#199807-200104

main16405-74340i3SFE..SXN15200104-200211

sub16405-74330

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i1AZFSE..ACN1#199807-200208

16533SUPPORT, RADIATOR, UPPER

main16533-28010i3SFE..SXN15200104-200208

main16533-74251i3SF#..SXN1#199807-200104

16535SUPPORT, RADIATOR, LOWER

main16535-64120i3SFE..SXN15200107-200208

main16535-74210i1AZFSE..ACN10199807-200107

16571HOSE, RADIATOR, INLET

main16571-28130i1AZFSE..ACN1#..SU200104

main16571-28140i1AZFSE..ACN1#..STD200104

main16571-74490i3SFE..SXN1#..STD199807-200208

main16571-74500i3SFSE..SXN10199807-200104

main16571-74520i3SFE..SXN1#..SU199906-200208

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1AZFSE..ACN1#200104

main90467-34003i3SF#..SXN1#199807-200104

sub90467-34004

main90467-34004i3SFE..SXN15200104-200208

main90467-34004i1AZFSE..ACN1#200104

16572HOSE, RADIATOR, OUTLET

main16572-28100i1AZFSE..ACN10..SU200104-200208

sub16572-28101

main16572-28101i1AZFSE..ACN1#..SU200208

main16572-28110i1AZFSE..ACN10..STD200104-200208

sub16572-28180

main16572-28180i1AZFSE..ACN1#..STD200208

main16572-74300i3SF#..SXN1#..STD199807-200208

main16572-74350i3SFE..SXN1#..SU199906-200208

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1AZFSE..ACN1#200104

main90467-34003i3SF#..SXN1#199807-200104

sub90467-34004

main90467-34004i3SFE..SXN15200104-200208

main90467-34004i1AZFSE..ACN1#200104

main90467-34006i3SF#..SXN1#199807-200104

16701SHROUD SUB-ASSY, FAN

main16711-74581i3SF#..SXN1#199807-200208

1709

2501

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

9011606127

main90116-06127

9012606012

main90126-06012

9017906032

main90179-06032

9048023008

main90480-23008

91621B0816

main91621-B0816

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

34 parts on this diagram · 7 diagrams in section
