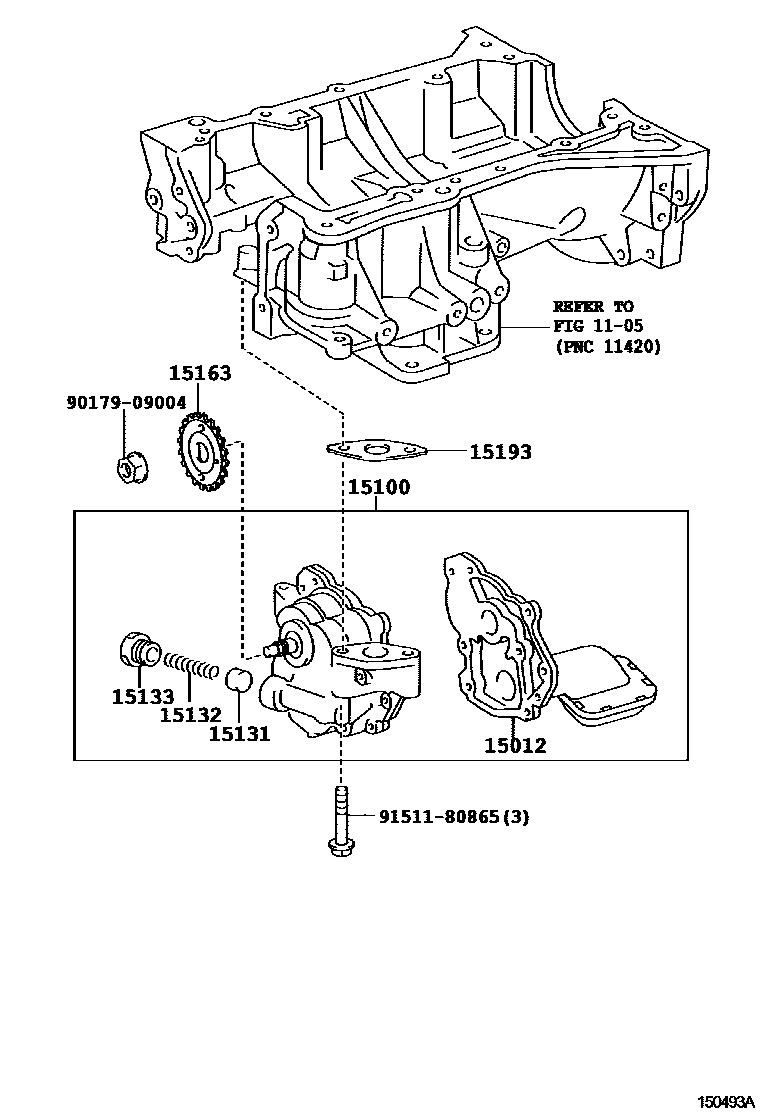

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15012COVER SUB-ASSY, OIL PUMP

main15012-28030i1AZFSE..ACN1#200104

15100PUMP ASSY, OIL

main15100-28030i1AZFSE..ACN1#200104

main15100-74050i3SFE..SXN1#199807

main15100-74070i3SFSE..SXN10199807-200104

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE..SXN1#199807

main15131-46040i1AZFSE..ACN1#200104

main15131-63011i3SFSE..SXN10199807-200104

15132SPRING, OIL PUMP RELIEF VALVE

main15132-28020i1AZFSE..ACN1#200104

main15132-40010i3SFE..SXN1#199807

main15132-88380i3SFSE..SXN10199807-200104

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i1AZFSE..ACN1#200104

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i1AZFSE..ACN1#200104

15193GASKET, OIL PUMP

main15193-28010i1AZFSE..ACN1#200104

main15197-74040i3SF#..SXN1#199807

9017909004

main90179-09004

9151180865

main91511-80865

10 parts on this diagram · 4 diagrams in section
