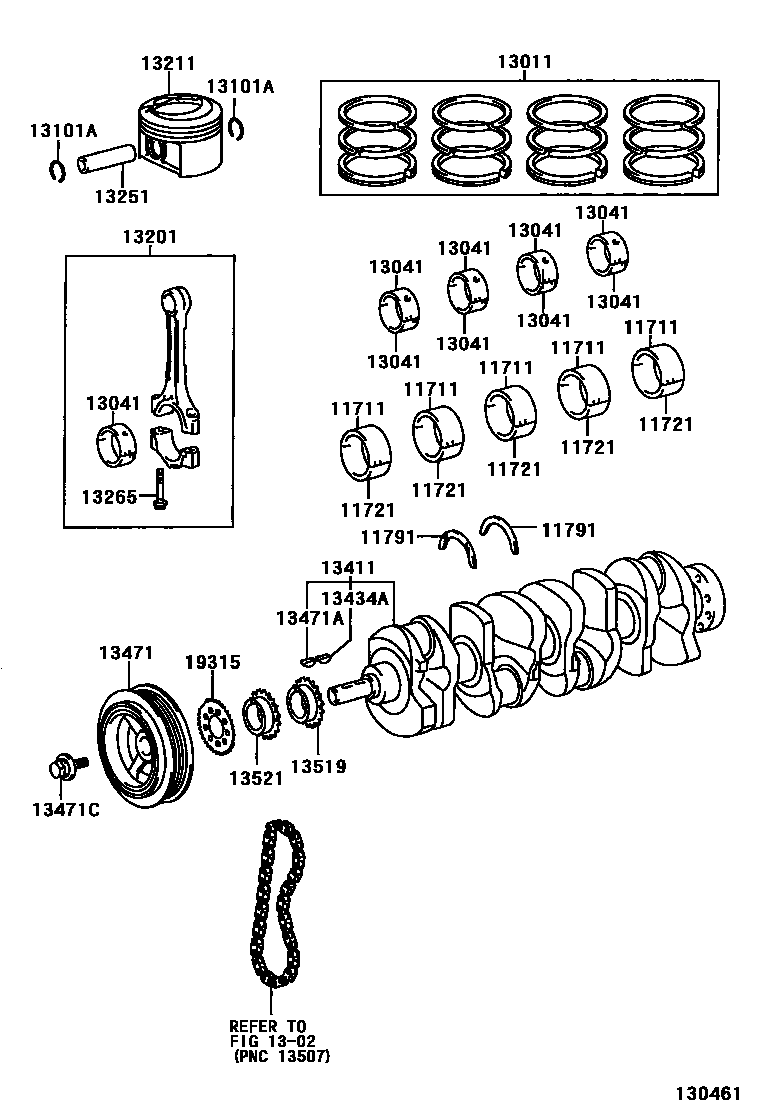

CRANKSHAFT & PISTON

0001 1 0002 1

11711BEARING, CRANKSHAFT

main11071-63020-01i3SF#..SXN1#199807

sub11071-63021

main11071-63020-02i3SF#..SXN1#199807

sub11071-63021

main11071-63020-03i3SF#..SXN1#199807

sub11071-63021

main11071-63020-04i3SF#..SXN1#199807

sub11071-63021

main11071-63020-05i3SF#..SXN1#199807

sub11071-63021

main11701-63021-01i3SF#..SXN1#199807

sub11701-63022

main11701-63021-02i3SF#..SXN1#199807

sub11701-63022

main11701-63021-03i3SF#..SXN1#199807

sub11701-63022

main11701-63021-04i3SF#..SXN1#199807

sub11701-63022

main11701-63021-05i3SF#..SXN1#199807

sub11701-63022

main11711-28010-01i1AZFSE..ACN1#200104

sub11711-28020

main11711-28010-02i1AZFSE..ACN1#200104

sub11711-28020

main11711-28010-03i1AZFSE..ACN1#200104

sub11711-28020

main11711-28010-04i1AZFSE..ACN1#200104

sub11711-28020

11721BEARING, CRANKSHAFT, NO.2

main11721-28010-01i1AZFSE..ACN1#200104

sub11721-28020

main11721-28010-02i1AZFSE..ACN1#200104

sub11721-28020

main11721-28010-03i1AZFSE..ACN1#200104

sub11721-28020

main11721-28010-04i1AZFSE..ACN1#200104

sub11721-28020

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-28020i1AZFSE..ACN1#200104

13011RING SET, PISTON

main13011-28110i1AZFSE..ACN1#200104

main13011-74361i3SFE..SXN1#199807

main13011-74400i3SFSE..SXN10199807-200104

main13013-74361i3SFE..SXN1#199807

main13013-74400i3SFSE..SXN10199807-200104

1302

13041BEARING, CONNECTING ROD

main13041-74040-01i3SF#..SXN1#199807

sub13041-74041

main13041-74040-02i3SF#..SXN1#199807

sub13041-74041

main13041-74040-03i3SF#..SXN1#199807

sub13041-74041

main13281-28010-01i1AZFSE..ACN1#200104

sub13281-28011

main13281-28010-02i1AZFSE..ACN1#200104

sub13281-28011

main13281-28010-03i1AZFSE..ACN1#200104

sub13281-28011

13101PISTON SUB-ASSY, W/PIN

main13101-74191-01i3SFE..SXN1#199807

main13101-74191-02i3SFE..SXN1#199807

main13101-74191-03i3SFE..SXN1#199807

main13101-74230-01i3SFSE..SXN10199807-200104

main13101-74230-02i3SFSE..SXN10199807-200104

main13101-74230-03i3SFSE..SXN10199807-200104

main13103-74191i3SFE..SXN1#199807

main13103-74230i3SFSE..SXN10199807-200104

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i1AZFSE..ACN1#200104

13201ROD SUB-ASSY, CONNECTING

main13201-29125-A0i1AZFSE..ACN1#200104

sub13201-29685

main13201-29125-B0i1AZFSE..ACN1#200104

sub13201-29685

main13201-29125-C0i1AZFSE..ACN1#200104

sub13201-29685

main13201-79405i3SF#..SXN1#199807

sub13201-79555

13211PISTON

main13211-28040-A0i1AZFSE..ACN1#200104

main13211-28040-B0i1AZFSE..ACN1#200104

main13211-28040-C0i1AZFSE..ACN1#200104

13251PIN, PISTON

main13251-28010-A0i1AZFSE..ACN1#200104

sub13251-28020

main13251-28010-B0i1AZFSE..ACN1#200104

sub13251-28020

main13251-28010-C0i1AZFSE..ACN1#200104

sub13251-28020

13265BOLT, CONNECTING ROD

main13265-28010i1AZFSE..ACN1#200104

sub13265-28020

main13265-62030i3SFE..SXN1#199807

sub13265-74030

main13265-74030i3SFSE..SXN10199807

13411CRANKSHAFT

main13411-28040i1AZFSE..ACN1#200112

main13411-28902i1AZFSE..ACN10200104-200112

sub13411-28040

main13411-74908i3SF#..SXN1#199807

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i1AZFSE..ACN1#200104

13471PULLEY, CRANKSHAFT

main13408-74031i3SFE..SXN15200110

main13408-74041i3SFE..SXN1#199807-200110

sub13408-74031

main13408-74070i3SFSE..SXN10199807-200104

main13470-28020i1AZFSE..ACN1#200104

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i3SF#..SXN1#199807

main95161-30416i1AZFSE..ACN1#200104

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14015i3SF#..SXN1#199807

main90119-14106i1AZFSE..ACN1#200104

13519GEAR, OIL PUMP DRIVE

main13519-28010i1AZFSE..ACN1#200104

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-28010i1AZFSE..ACN1#200104

sub13521-28030

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-28010i1AZFSE..ACN1#200104

20 parts on this diagram · 2 diagrams in section
