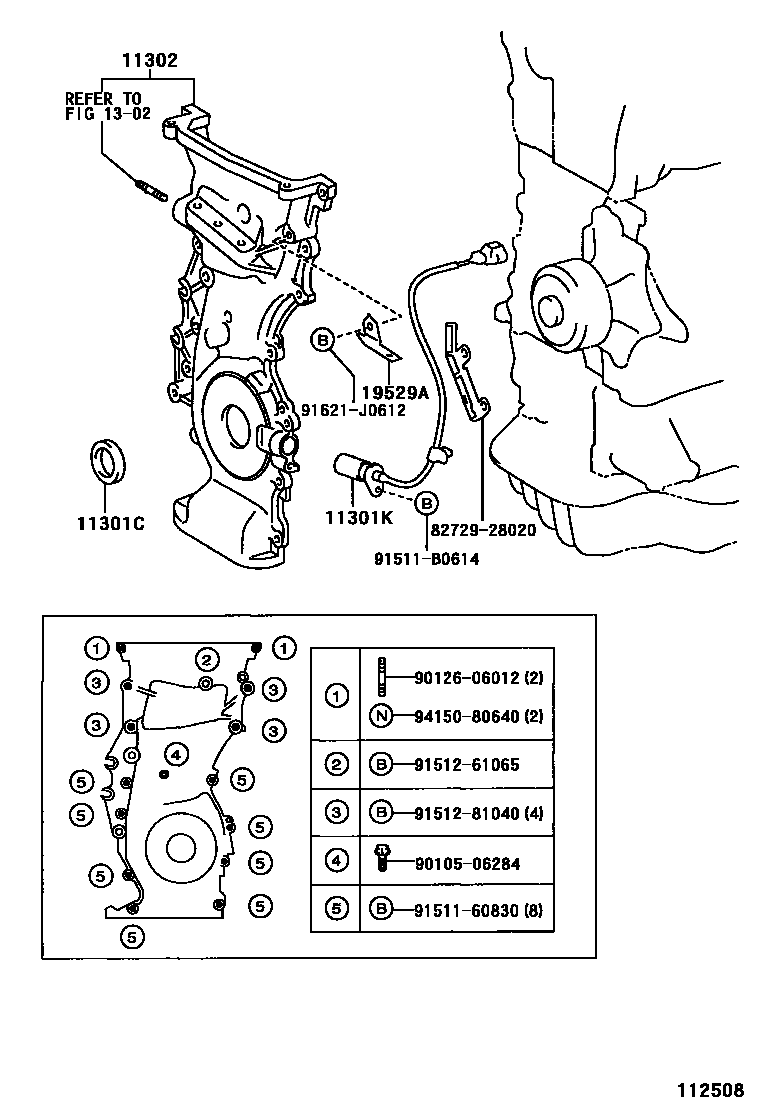

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38078i1AZFSE..ACN1#200104-200212

main90311-38084i1AZFSE..ACN1#200212-200301

main90311-38084i1AZFSE..ACN1#200301-200303

main90311-38088i1AZFSE..ACN1#200212-200301

main90311-38089i1AZFSE..ACN1#200304

11301KSENSOR, CRANK POSITION

main90919-05047i1AZFSE..ACN1#200104

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-74040i3SF#..SXN1#199807

main11310-28080i1AZFSE..ACN10200104-200208

main11310-28081i1AZFSE..ACN1#200208

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

19529ACLAMP

main19529-28010i1AZFSE..ACN1#200104

8272928020

main82729-28020

9010506284

main90105-06284

9012606012

main90126-06012

9151160830

main91511-60830

91511B0614

main91511-B0614

9151261065

main91512-61065

9151281040

main91512-81040

91621J0612

main91621-J0612

9415080640

main94150-80640

14 parts on this diagram · 3 diagrams in section
