EPC Data

CYLINDER HEAD

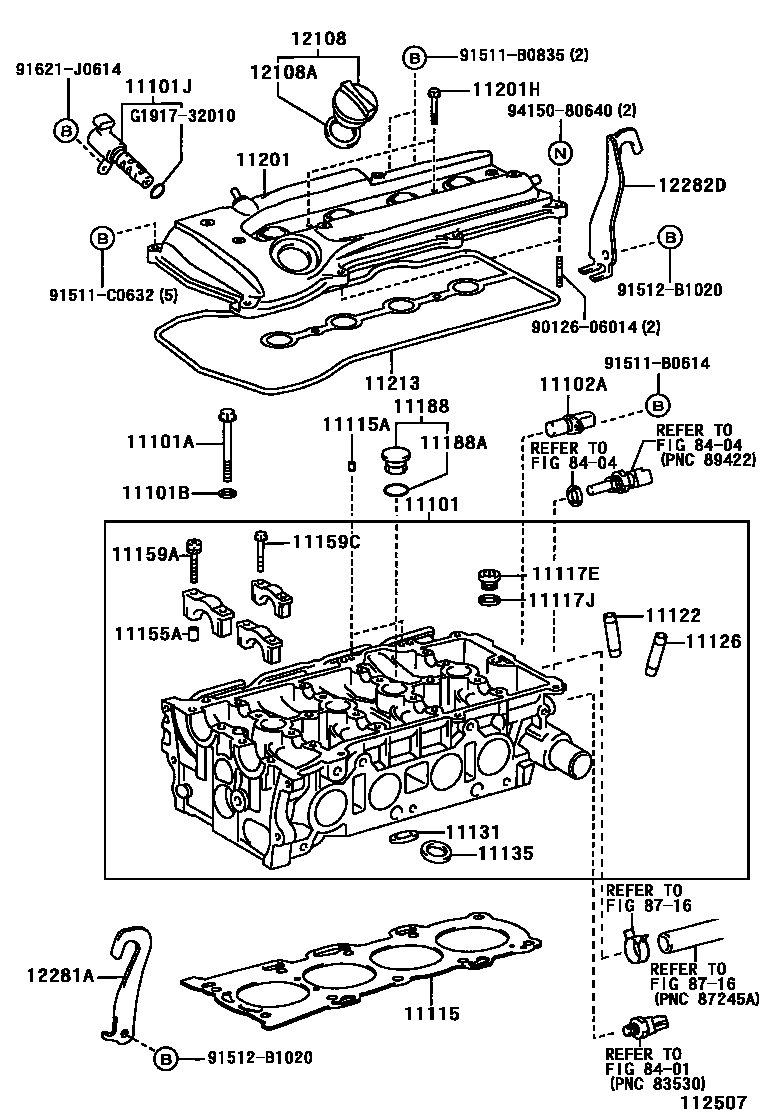

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-28020i200104-200105
sub11101-28021
main11101-28021i200105
sub11101-28022
sub11310-28082
main11101-79156i199807
main11101-79235i199807-200104
11101ABOLT(FOR CYLINDER HEAD SET)
main90109-10132i199807
main90910-02094i199807-200104
main90910-02141i200104
sub90910-02184
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-11026i199807
main90201-11033i200104-200304
sub90201-11034
main90201-11034i200304
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
main15330-28020i200104
sub15330-28010
main15330-74010i199807-200104
sub15330-74011
11102ASENSOR, CAMSHAFT POSITION
main90919-05026i200104
main90919-05032i199807-200104
11115GASKET, CYLINDER HEAD
main11115-28021i200104-200304
sub11115-28022
main11115-28022i200304
sub11115-28023
main11115-74110i199807
main11115-74130i199807-200104
11115APIN, RING
main90250-05021i200104
main90253-11021i199807-200104
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-24090i199807
main90341-27006i200104
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-27005i200104
11122BUSH, INTAKE VALVE GUIDE
main11122-20020i199807-200104
sub11122-22040
main11122-28010i200104
main11122-74030i199807
main11123-20020i199807-200104
main11123-28010i200104
main11123-74030i199807
11126BUSH, EXHAUST VALVE GUIDE
main11122-16010i199807
sub11122-16020
main11123-16010i199807
main11126-20020i199807-200104
main11127-20020i199807-200104
11131SEAT, INTAKE VALVE
main11131-28021i200104
main11131-74020i199807
main11131-74050i199807-200104
main11132-28021i200104
main11132-74020i199807
main11132-74050i199807-200104
11135SEAT, EXHAUST VALVE
main11135-28010i200104-200105
main11135-28030i200105-200301
main11135-28040i200301
main11135-74030i199807
main11135-74050i199807-200104
main11136-28010i200104-200105
main11136-28030i200105-200301
sub11136-28040
main11136-28040i200301
main11136-74030i199807
main11136-74050i199807-200104
11155APIN, RING W/HEAD
main90253-10004i199807-200104
main90253-11004i200104-200107
main90253-11021i200107
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90105-08337i200104
sub90105-08353
main90119-07009i199807
main90119-07010i199807-200104
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90119-06902i200104
11188PLUG, CAMSHAFT HOUSING
main11188-28010i200104
11188ARING, O(FOR CAMSHAFT HOUSING PULG)
main90301-21013i200104
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-28020i200104-200202
sub11201-28021
main11201-28021i200202-200304
sub11201-28022
main11201-28022i200304
main11201-74091i199807-200104
main11201-74100i199807-199901
sub11201-74101
main11201-74101i199901
11201HBOLT(FOR CYLINDER HEAD COVER)
main90119-06903i200104
11213GASKET, CYLINDER HEAD COVER
main11213-28041i200104
main11213-74020i199807
main11213-74050i199807-200104
12108CAP SUB-ASSY, OIL FILLER
main12180-28010i200104
main12180-55010i199807
12108AGASKET(FOR OIL FILLER CAP)
main90430-37004i200104
main90430-37140i199807
12281AHANGER, ENGINE, NO.1
main12281-28010i200104
12282DHANGER, ENGINE, NO.2
main12282-28010i200104
8401
8404
8716
9012606014
main90126-06014
91511B0614
main91511-B0614
91511B0835
main91511-B0835
91511C0632
main91511-C0632
91512B1020
main91512-B1020
91621J0614
main91621-J0614
9415080640
main94150-80640
G191732010
mainG1917-32010

36 parts on this diagram · 3 diagrams in section
