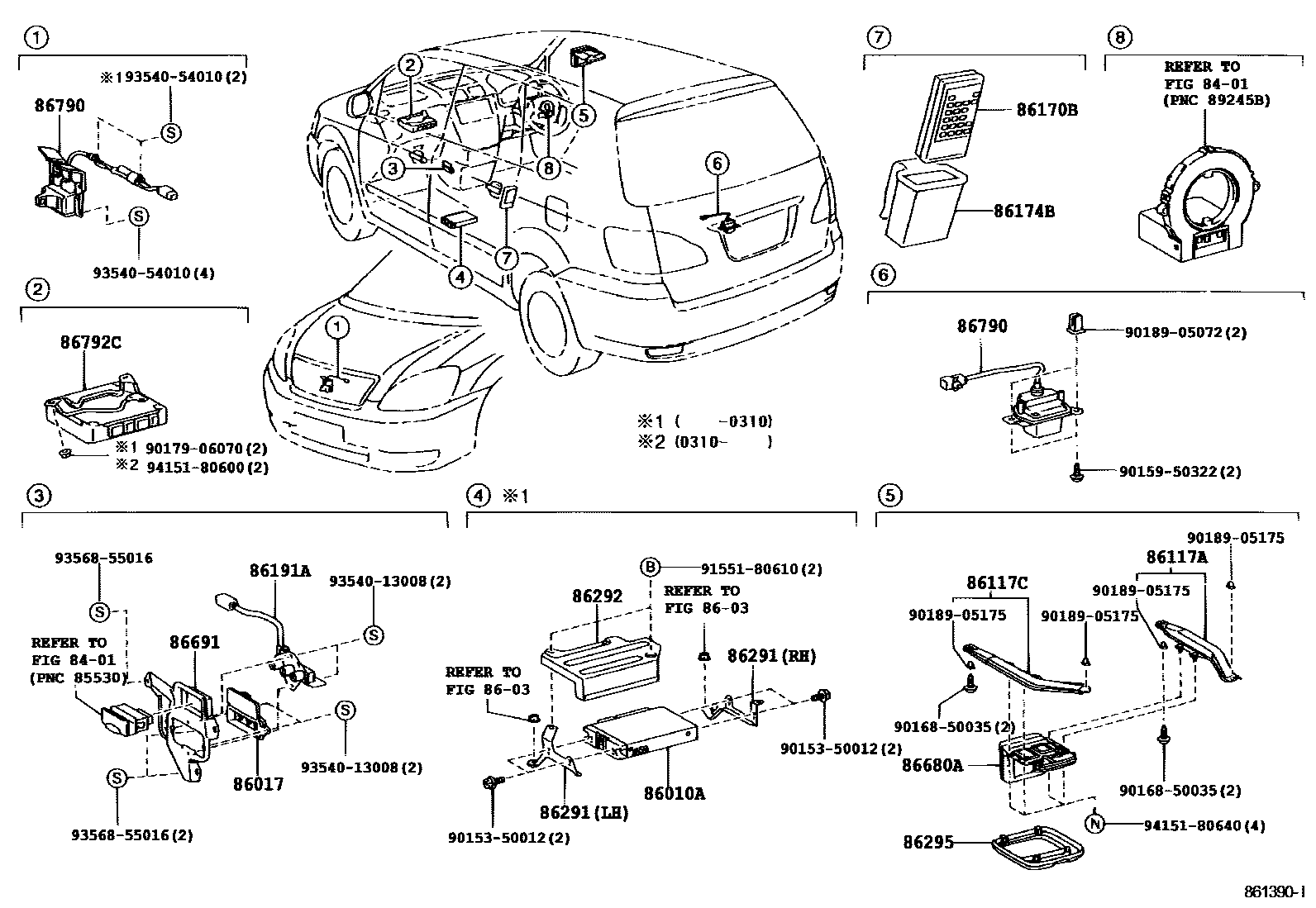

CAMERA & REAR MONITOR DISPLAY

8401

86010ATUNER ASSY, TELEVISION

main86010-28080iACM2#200105-200310

86017PARTS SET, VIDEO

main86017-44010-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main86017-44010-B0iACM2#200105-200310

MD. GRAY,TRIM1#

main86017-44010-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

8603

86117ABRACKET, TELEVISION DISPLAY, A

main86117-44070iACM2#200105-200310

main86117-44090iACM2#200105-200310

main86117-44170iACM2#..06S200310-200706

main86117-44200iACM2#..07S..(240S,240U)200310

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86117-44080iACM2#200105-200310

main86117-44100iACM2#200105-200310

main86117-44180iACM2#..07S..(240S,240U)200310

main86117-44190iACM2#..06S200310-200706

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-28050iACM2#200105-200310

sub8610B-28010

main86170-28060iACM2#..06S200310-200706

86174BCASE, SWITCH & VOLUME

main86174-28010iACM2#200105-200310

main86174-58010iACM2#..06S200310-200706

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-44020iACM2#200105-200310

86291BRACKET, TELEVISION

main86291-44010iACM2#200105-200310

main86291-44020iACM2#200105-200310

86292COVER, TELEVISION SET

main86292-44010iACM2#200105-200310

86295BASE, TELEVISION

main86295-28010-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main86295-28010-B2iACM2#200105-200310

LT.GRAY,TRIM1#

main86295-28020-A0iACM2#..240U200310-200912

IVORY,TRIM0#

main86295-28020-B0iACM2#..240S200310-200912

LT.GRAY,TRIM1#

86680ADISPLAY ASSY, TELEVISION

main86680-28040-A0iACM2#..240U200310-200912

main86680-28040-B0iACM2#..240S200310-200912

main86680-44010-A0iACM2#..240E,240I,240U200105-200310

main86680-44010-B0iACM2#200105-200310

86691HOLDER, VIDEO

main86691-44010iACM2#200105-200310

86790CAMERA ASSY, TELEVISION

main86790-44050iACM2#200105-200310

main86790-44060-A0iACM2#..240E,240I,240U200110-200310

sub86790-44061

main86790-44060-A1iACM2#..240E,240I,240U200105-200310

sub86790-44061

main86790-44060-B0iACM2#..240I200201-200206

sub86790-44061

main86790-44060-B1iACM2#..240S200310

sub86790-44061

main86790-44060-C0iACM2#..240I200304-200309

sub86790-44061

main86790-44060-D0iACM2#..240E,240I,240U200105-200310

sub86790-44061

main86790-44060-D1iACM2#..240E,240I,240U200105-200310

sub86790-44061

main86790-44060-D2iACM2#..240I200304-200309

sub86790-44061

main86790-44060-F0iACM2#..240E,240I,240U200105-200310

sub86790-44061

main86790-44060-H0iACM2#..240E,240I,240U200105-200310

sub86790-44061

main86790-44060-J0iACM2#..240E,240I,240U200105-200310

sub86790-44061

main86790-44090-A0iACM2#..240S200105-200310

sub86790-44091

main86790-44090-B0iACM2#..240S200105-200310

sub86790-44091

main86790-44090-B1iACM2#..240S200105-200310

sub86790-44091

main86790-44090-J0iACM2#..240S200105-200310

sub86790-44091

main86790-44100iACM2#200310-200912

main86790-44110-A0iACM2#..240I,240U200310-200912

main86790-44110-B0iACM2#..240I,240U200310-200912

main86790-44110-C0iACM2#..240I,240U200310-200912

main86790-44110-D0iACM2#..240I,240U200310-200912

main86790-44110-F0iACM2#..240I,240U200310-200912

main86790-44110-J0iACM2#..240I,240U200310-200912

main86790-44110-J1iACM2#..240I,240U200310-200912

main86790-44120-A0iACM2#..240S200310-200912

main86790-44120-A1iACM2#..240I200706-200912

main86790-44120-B0iACM2#..240I200501-200912

main86790-44120-C0iACM2#..240S200310-200912

main86790-44120-D0iACM2#..240S200310-200912

main86790-44120-D1iACM2#..240I200706-200912

main86790-44120-E0iACM2#..240I200706-200912

main86790-44120-F0iACM2#..240I200501-200912

86792CCOMPUTER, PARKING ASSIST

main86792-44030iACM2#200105-200310

main86792-44080iACM2#..06S200310-200706

9015350012

main90153-50012

9015950322

main90159-50322

9016850035

main90168-50035

9017906070

main90179-06070

9018905072

main90189-05072

9018905175

main90189-05175

9155180610

main91551-80610

9354013008

main93540-13008

9354054010

main93540-54010

9356855016

main93568-55016

9415180600

main94151-80600

9415180640

main94151-80640

28 parts on this diagram · 1 diagram in section
