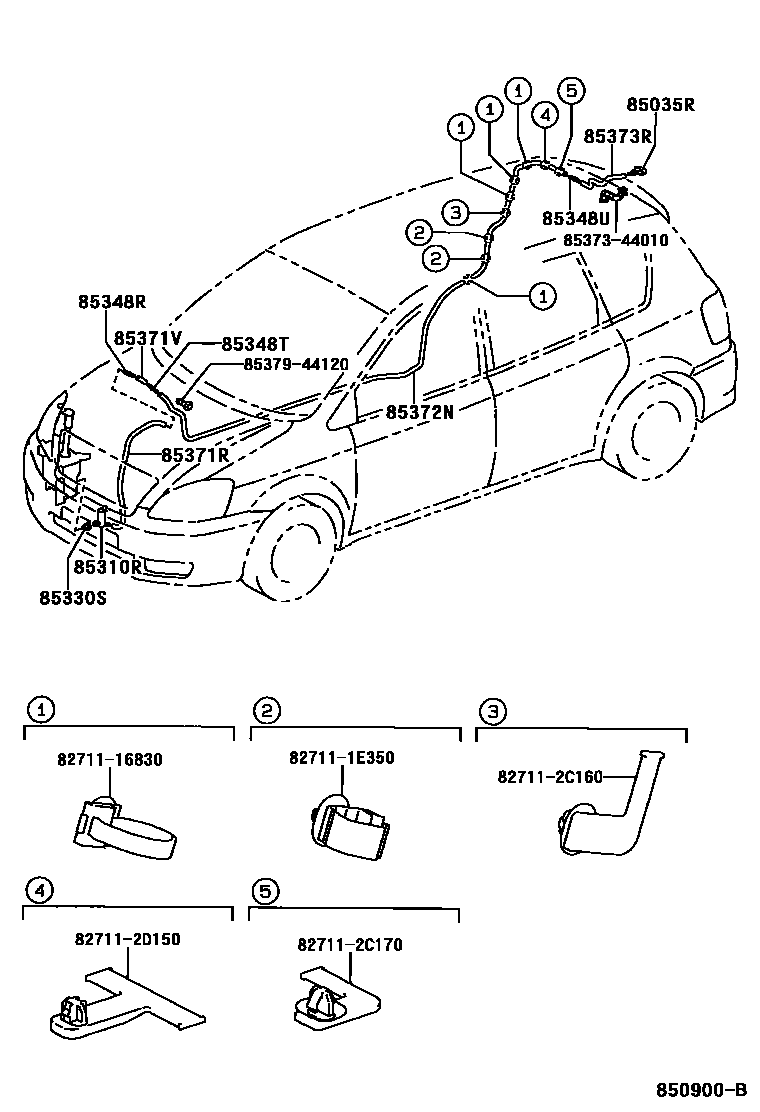

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-44030iACM2#200105-200310

85310RMOTOR ASSY, REAR WASHER

main85330-60140iACM2#200105-200310

85330SBUSH, REAR WASHER JAR

main90099-32089iACM2#200105-200310

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iACM2#200105-200310

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iACM2#200105-200310

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iACM2#200105-200310

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iACM2#200105-200310

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33299iACM2#200105-200310

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iACM2#200105-200108

main90446-07001iACM2#200310

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iACM2#200105-200310

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C160

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

827112D150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D150

8537344010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-44010

8537944120JOINT

main85379-44120

17 parts on this diagram · 1 diagram in section
