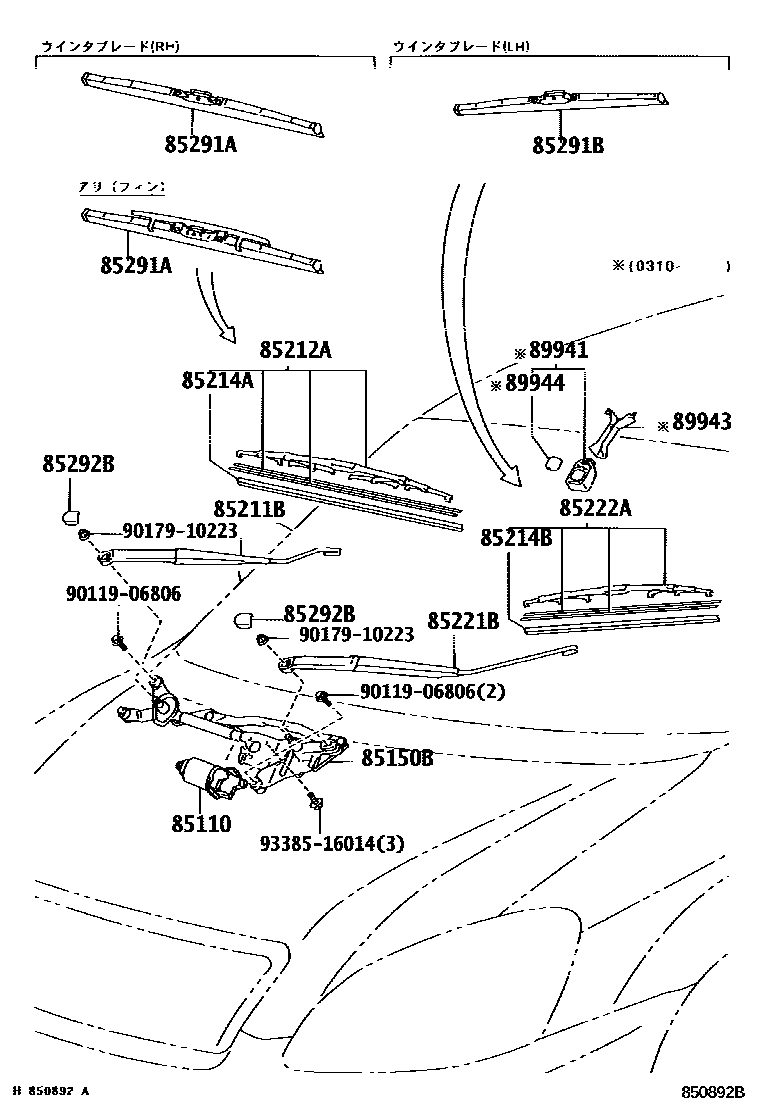

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-44080iACM2#200105-200706

sub85110-44090

main85110-44090iACM2#..06S200105-200706

85150BLINK ASSY, WIPER

main85150-44080iACM2#..07S200105-200706

85211BARM, FRONT WIPER, RH

main85211-44060iACM2#..07S200105-200706

85212ABLADE, FR WIPER, RH

main85212-44100iACM2#200105-200801

sub85212-68010

main85212-68010iACM2#200802

85214ARUBBER, WIPER, RH

main85214-44130iACM2#200105-200412

sub85214-44140

main85214-44140iACM2#200412

85214BRUBBER, WIPER, LH

main85214-50060iACM2#200412-200610

sub85214-50061

main85214-50061iACM2#200610

main85214-50130iACM2#200105-200412

sub85214-50060

85221BARM, FRONT WIPER, LH

main85221-44050iACM2#..06S200105-200706

85222ABLADE, FR WIPER, LH

main85222-13041iACM2#..06S200412-200801

main85222-44060iACM2#200105-200412

sub85222-13030

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-44070iACM2#200105-200310

main85291-44090iACM2#200105-200310

main85291-44090iACM2#..06S200310-200706

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080iACM2#..06S200105-200706

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iACM2#200105-200706

89941SENSOR, RAIN

main89941-41010iACM2#..06S200310-200706

89943COVER, RAIN SENSOR

main89943-44010iACM2#..06S200310-200706

89944TAPE, RAIN SENSOR

main89944-33010iACM2#..06S200310-200706

9011906806

main90119-06806

9017910223

main90179-10223

9338516014

main93385-16014

17 parts on this diagram · 1 diagram in section
