WIRING & CLAMP

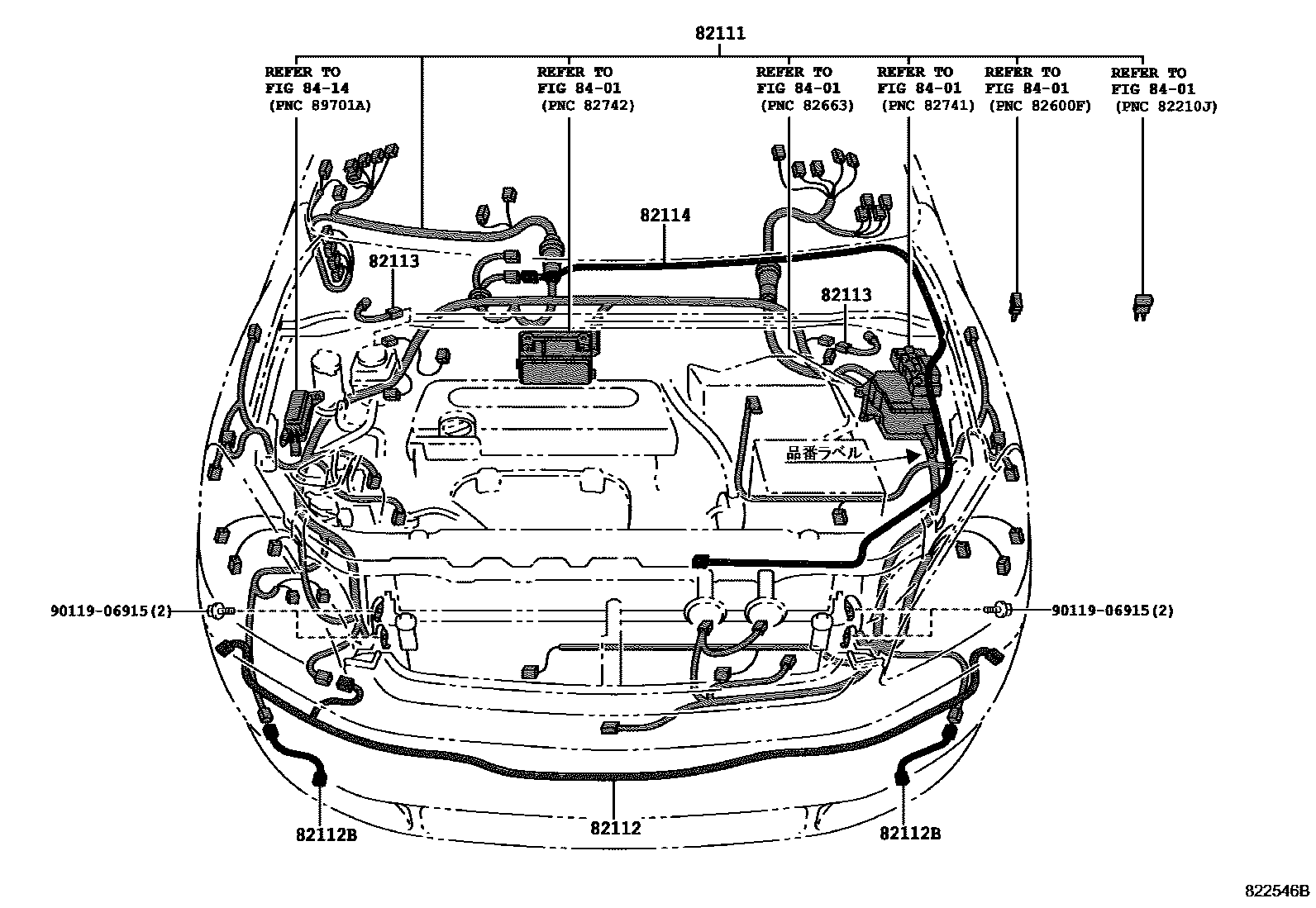

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-44550i200105-200110

main82111-44551i200110-200310

main82111-44640i200105-200310

main82111-44650i200105-200310

main82111-44660i200105-200310

main82111-44670i200105-200310

main82111-44680i200105-200310

main82111-44690i200105-200310

main82111-44700i200105-200310

main82111-44710i200105-200310

main82111-44720i200105-200310

main82111-44730i200105-200310

main82111-44740i200105-200310

main82111-44750i200105-200310

main82111-44890i200509-200706

main82111-44A00i200310-200508

main82111-44A01i200508-200706

main82111-44A10i200310-200508

main82111-44A11i200508-200706

main82111-44A20i200310-200508

main82111-44A21i200508-200706

main82111-44A30i200310-200508

main82111-44A31i200508-200706

main82111-44A40i200310-200508

main82111-44A41i200508-200706

main82111-44A50i200310-200508

main82111-44A51i200508-200706

main82111-44A60i200310-200508

main82111-44A61i200508-200706

main82111-44B20i200509-200706

main82111-44C20i200509-200706

main82111-44C30i200509-200706

main82111-44E00i200509-200706

main82111-44E10i200509-200706

82112WIRE, ENGINE ROOM, NO.2

main82112-44010i200105-200310

main82112-44070i200310-200706

82112BWIRE, ENGINE ROOM, NO.2

main82112-44020i200105-200310

main82112-44040i200105-200310

main82112-44060i200310-200706

82113WIRE, ENGINE ROOM, NO.3

main82113-44010i200105-200706

82114WIRE, ENGINE ROOM, NO.4

main82114-44010i200105-200310

main82114-44030i200310-200706

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011906915

main90119-06915

8 parts on this diagram · 8 diagrams in section
