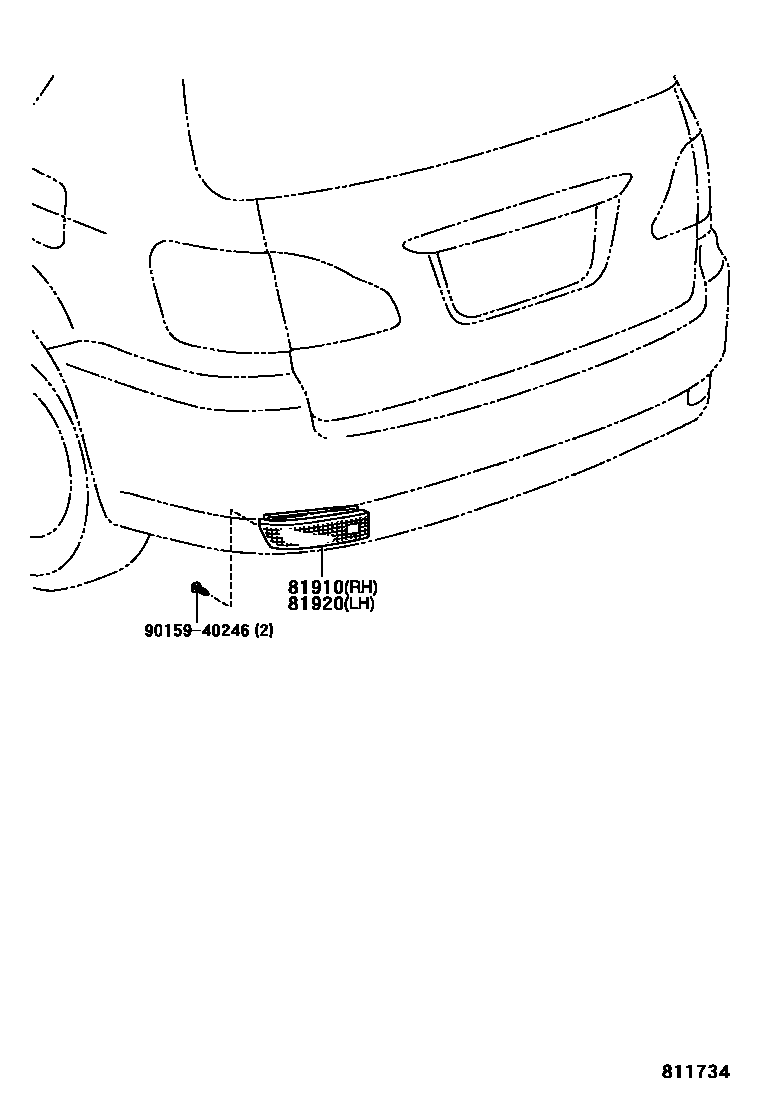

REFLEX REFLECTOR

0001 1 0002 1

81910REFLECTOR ASSY, REFLEX, RH

main81910-13020iACM2#200105-200310

sub81910-13021

main81910-21050iACM2#..240I,240S200310-200912

main81910-48010iACM2#..240I,240U200310-200612

main81910-48012iACM2#..240I,240U200701-200912

81920REFLECTOR ASSY, REFLEX, LH

main81920-13020iACM2#200105-200310

sub81920-13022

main81920-21040iACM2#..240I,240S200310-200912

main81920-48010iACM2#..240I,240U200310-200612

main81920-48012iACM2#..240I,240U200701-200912

9015940246

main90159-40246

3 parts on this diagram · 2 diagrams in section
