REAR LICENSE PLATE LAMP

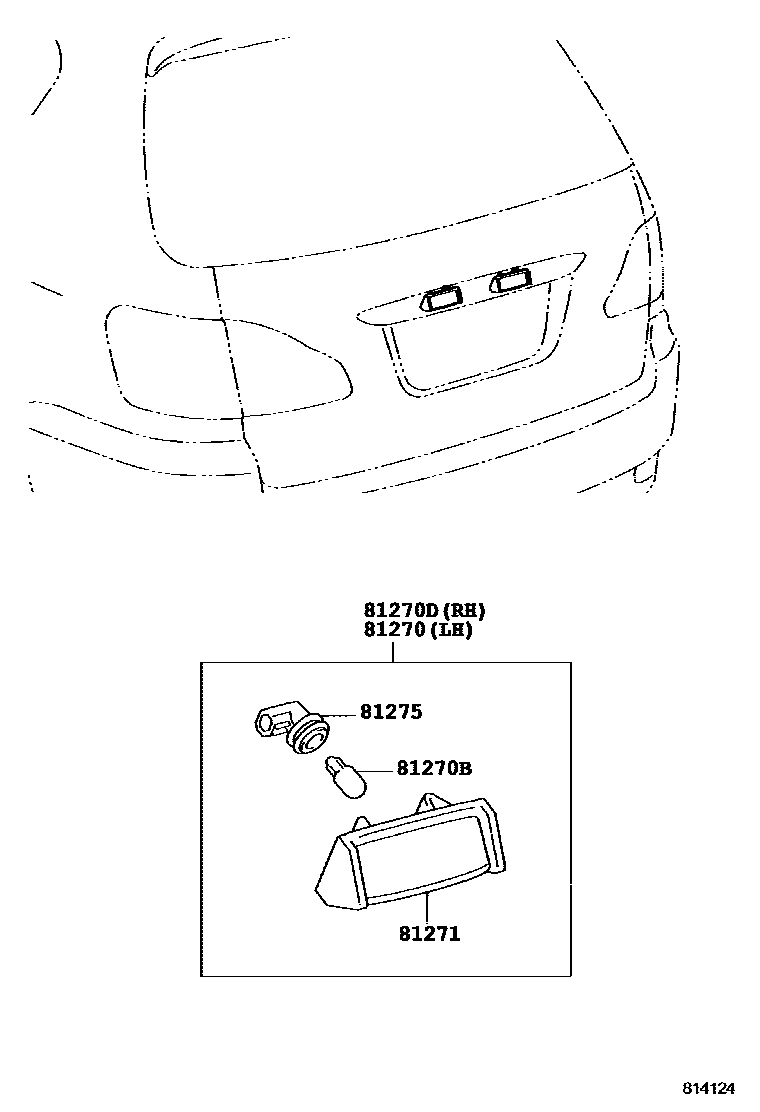

Parts diagram

81270LAMP ASSY, LICENSE PLATE

main81270-30290i200310-200611

main81270-30291i200611-200701

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2i200105-200310

81270DLAMP ASSY, LICENSE PLATE, RH

main81270-30290i200310-200611

main81270-30291i200611-200701

81271LENS, LICENSE PLATE LAMP

main81271-30290×2i200105-200310

main81271-30291×2i200611

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main90075-99005×2i200105-200310

5 parts on this diagram · 1 diagram in section
