Toyota 811110 — REAR COMBINATION LAMP
81496GUIDE, REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580BBULB (FOR REAR LAMP)
81581CLENS AND BODY, REAR LAMP, RH
81591BLENS AND BODY, REAR LAMP, LH
9017605019
9017905011
9046709077

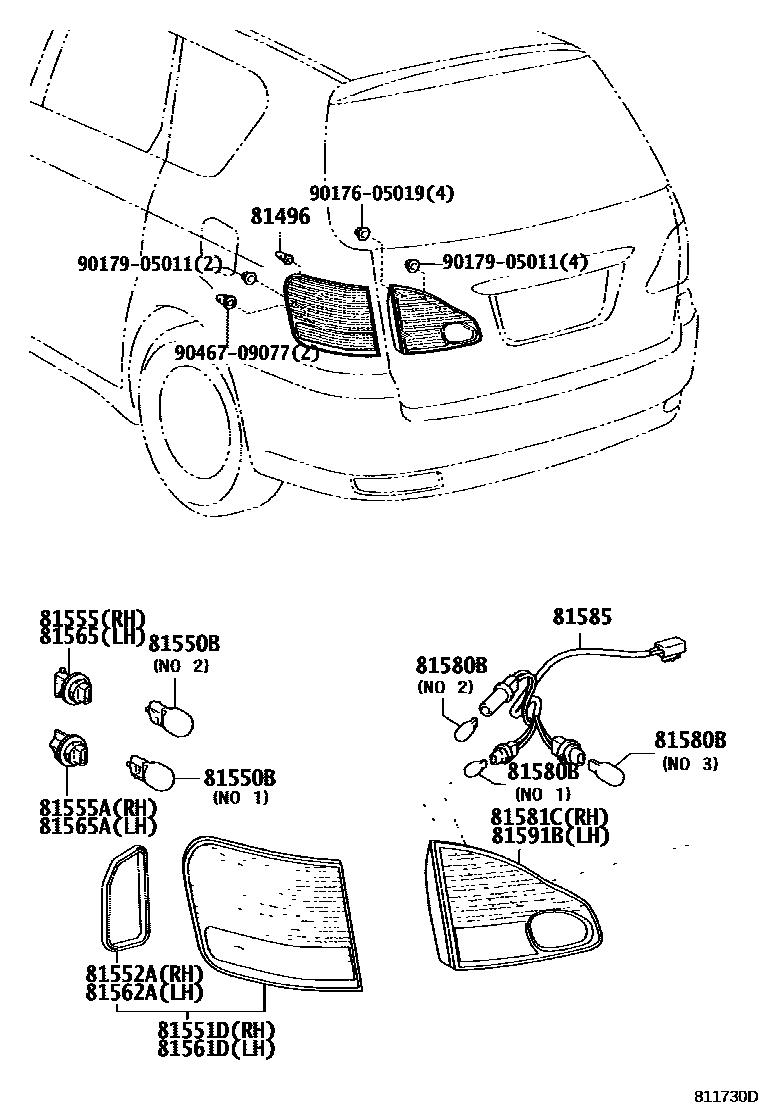

17 parts on this diagram · 3 diagrams in section
REAR COMBINATION LAMP for Toyota 811110
This section contains 19 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 811110. Key components include: GUIDE, REAR COMBINATION LAMP, BULB(FOR REAR COMBINATION LAMP), LENS & BODY, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
