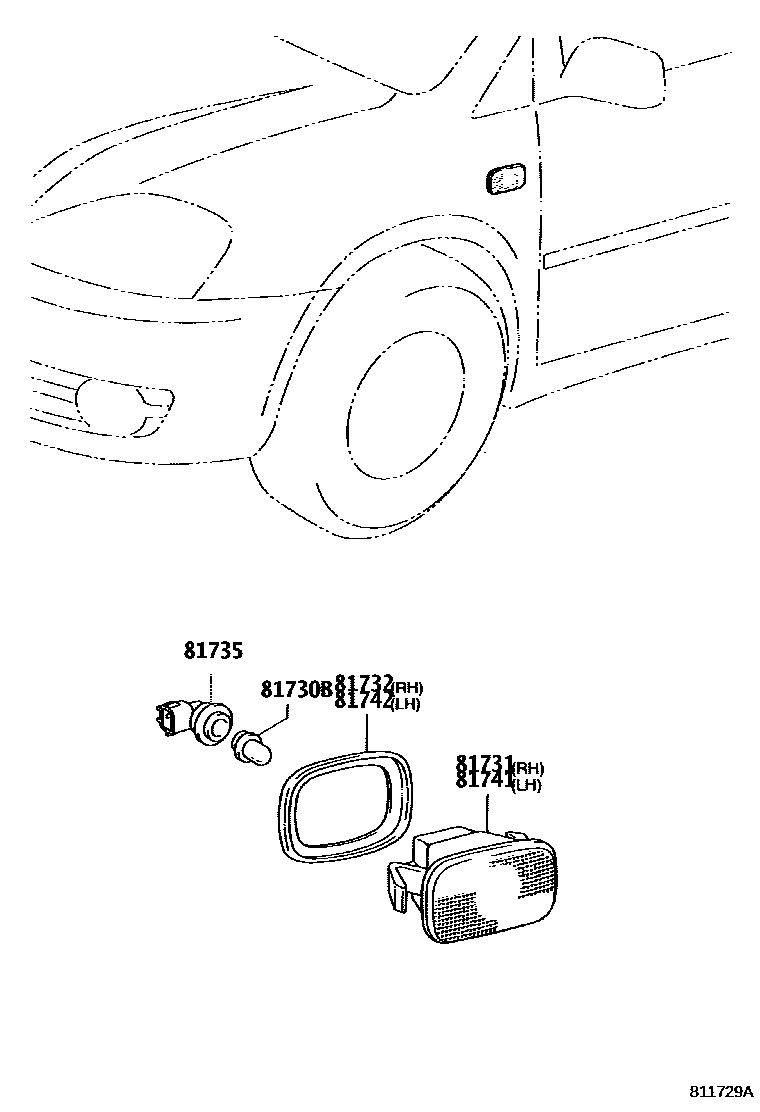

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-15012×2iACM2#..06S200310-200706

main99132-12050×2iACM2#200105-200310

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-17051iACM2#200105-200310

main81731-20220iACM2#..06S200310-200706

sub81731-20221

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-17050iACM2#200105-200310

main81732-20220iACM2#..06S200310-200706

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-99012×2iACM2#200105-200310

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-17051iACM2#200105-200310

main81731-20220iACM2#..06S200310-200706

sub81731-20221

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-17050iACM2#200105-200310

main81732-20220iACM2#..06S200310-200706

6 parts on this diagram · 2 diagrams in section
