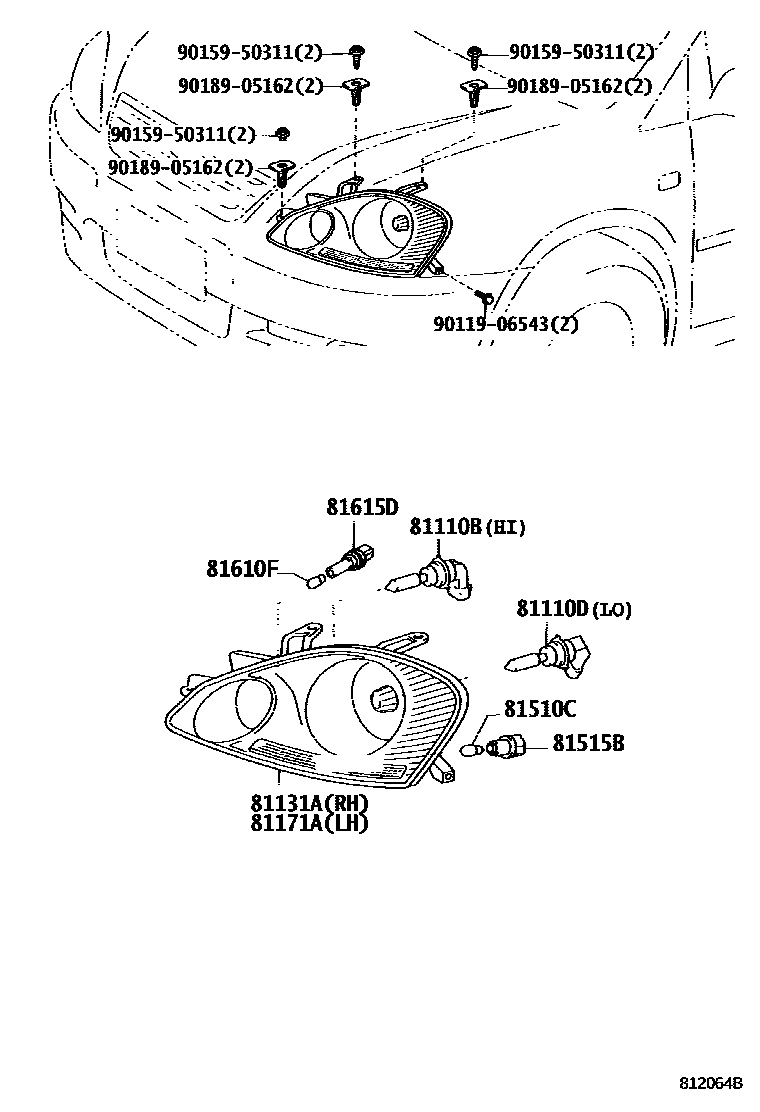

HEADLAMP

0001 1 0002 1��(������-�� ��������) 0003 1 0004 1

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iACM2#200105-200310

main90981-13046×2iACM2#200310

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iACM2#..240E,240I200105-200310

81131AUNIT, HEADLAMP, RH

main81130-44110iACM2#..240E,240I200105-200310

main81140-44120iACM2#..240E,240I,240U200105-200310

main81140-44150iACM2#..240S200105-200310

main81145-44220iACM2#..240I,240U200310

main81145-44230iACM2#..240S200310

81171AUNIT, HEADLAMP, LH

main81070-44120iACM2#..240E,240I,240U200105-200310

main81070-44150iACM2#..240S200105-200310

main81170-44110iACM2#..240E,240I200105-200310

main81185-44220iACM2#..240I,240U200310

main81185-44230iACM2#..240I200412-200507

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iACM2#200105-200310

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iACM2#200105-200310

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iACM2#200105-200310

81615DSOCKET, CLEARANCE LAMP

main90075-60030×2iACM2#200105-200310

main90075-60046×2iACM2#200310-200508

main90075-60077×2iACM2#200509

9011906543

main90119-06543

9015950311

main90159-50311

9018905162

main90189-05162

11 parts on this diagram · 4 diagrams in section
