REAR MOULDING

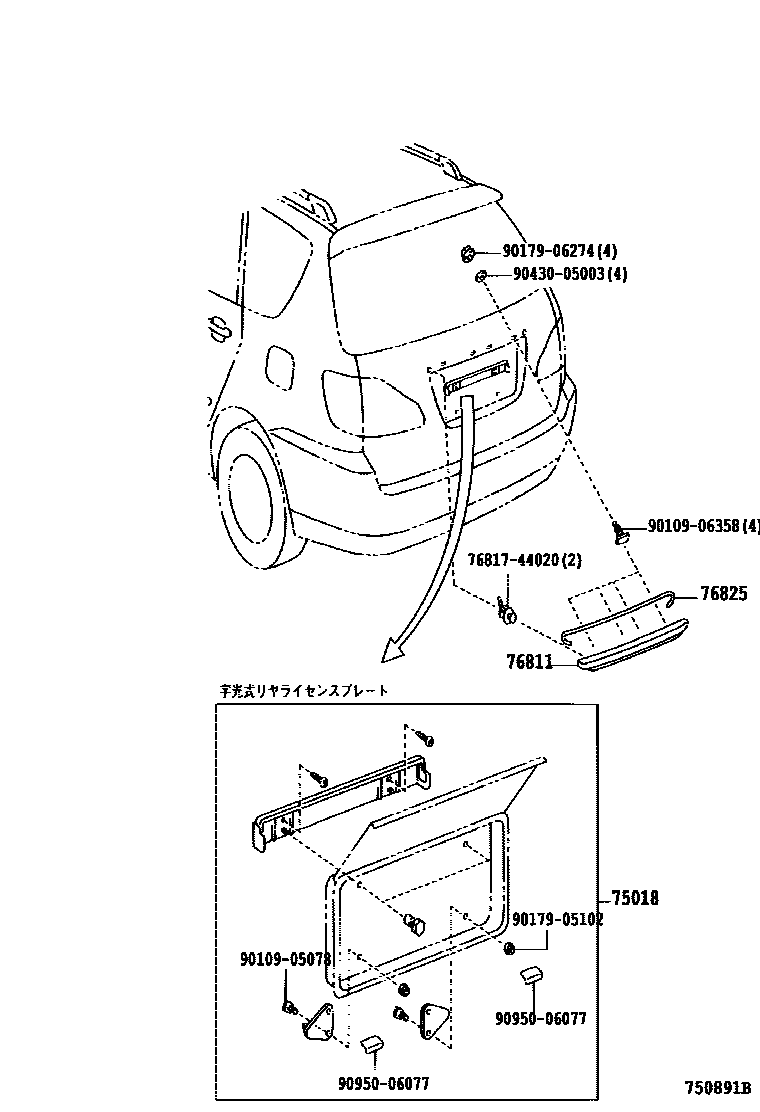

Parts diagram

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-44010i200105-200310

76811GARNISH, BACK DOOR, OUTSIDE

main76811-44010i200105-200310

*CR

main76811-44020i200105-200310

main76811-44030-A0i200110-200310

SUPER WHITE 2,040

main76811-44030-A1i200310-200912

WHITE PM.,042

main76811-44030-B0i200110-200310

SILVER ME.,1C0

main76811-44030-B1i200105-200110

DARK GRAY M.M.,1E2

main76811-44030-B2i200310-200912

SILVER ME.,1D4

main76811-44030-C0i200201-200206

main76811-44030-D0i200209-200310

main76811-44030-D1i200310-200912

SUPER RED 5,3P0

main76811-44030-D2i200310-200912

DK. RED M.M.,3Q3

main76811-44030-E0i200706-200912

BRONZE M.M.,4S2

main76811-44030-F0i200310-200912

YELLOW M.M.,580

main76811-44030-J0i200105-200110

DK.BLUE M.M.,8P4

main76811-44030-J1i200310-200912

LT.PURPLISH BLUE M.M.,8K2

main76811-44030-J2i200310-200912

BLUE MC.,8M6

main76811-44040-A0i200105-200110

main76811-44040-A1i200310-200912

main76811-44040-B0i200110-200310

main76811-44040-B1i200105-200110

main76811-44040-B2i200310-200912

main76811-44040-C0i200206-200303

main76811-44040-D0i200209-200310

main76811-44040-D1i200310-200912

main76811-44040-D2i200310-200912

main76811-44040-E0i200706-200912

main76811-44040-F0i200310-200912

main76811-44040-J0i200105-200110

main76811-44040-J1i200310-200912

main76811-44040-J2i200310-200912

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-44010i200105-200310

7681744020CLIP, BACK DOOR OUTSIDE GARNISH

main76817-44020

9010905078

main90109-05078

9010906358

main90109-06358

9017905102

main90179-05102

9017906274

main90179-06274

9043005003

main90430-05003

9095006077

main90950-06077

10 parts on this diagram · 1 diagram in section
