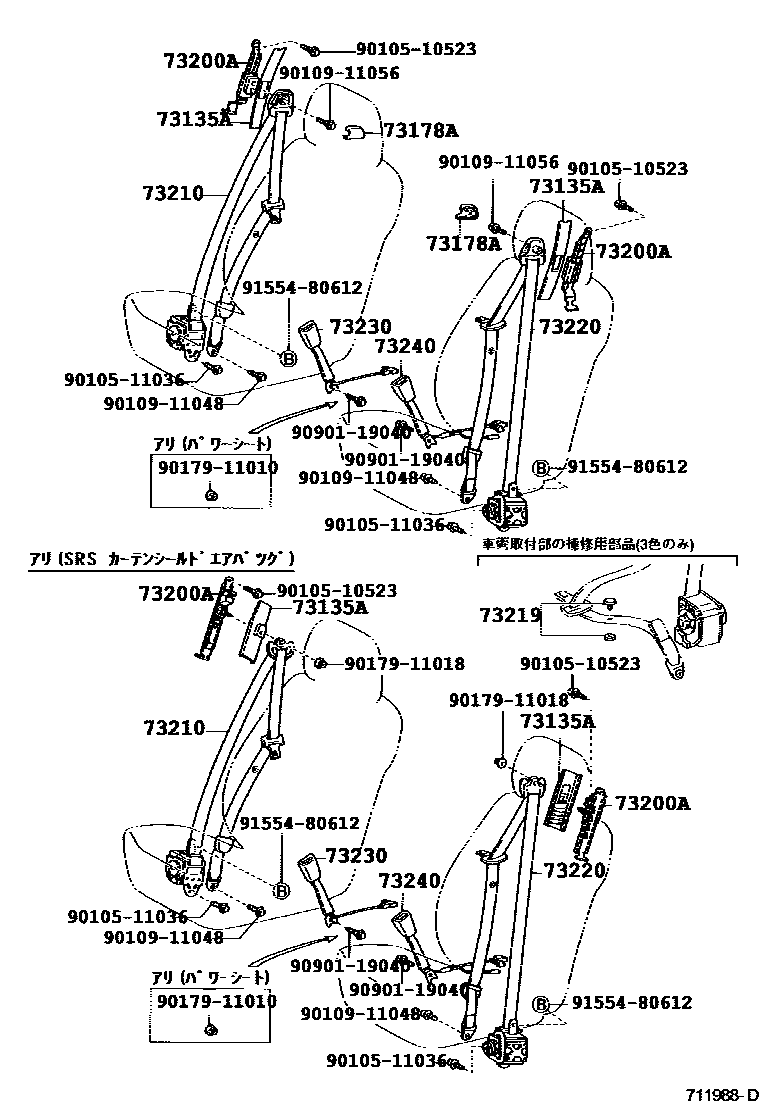

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1�� NO.1 0003 1�� NO.2

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-30010-A0iACM2#..240I,240U200310-200912

main73023-30010-B1iACM2#200105-200310

main73023-30010-B2iACM2#..240S200310-200912

main73024-30010-A0iACM2#..240I,240U200310-200912

main73024-30010-B1iACM2#200105-200310

main73024-30010-B2iACM2#..240S200310-200912

main73135-30030-A0×2iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main73135-30030-B2×2iACM2#..240S200310-200912

LT.GRAY,TRIM1#

main73135-30030-B3×2iACM2#200105-200310

LT.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-A1×2iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main73178-33020-B3×2iACM2#..240S200310-200912

LT.GRAY,TRIM1#

main73178-33020-B6×2iACM2#200105-200310

LT.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-30080×2iACM2#200105-200310

main73200-52010-A0×2iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

sub73200-28030

main73200-52010-B0×2iACM2#..240S200310-200912

LT.GRAY,TRIM1#

sub73200-28030

main73200-52010-B4×2iACM2#200105-200310

LT.GRAY,TRIM1#

sub73200-28030

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-44090-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main73210-44090-C0iACM2#200105-200310

BLACK,TRIM1#

main73210-44091-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main73210-44091-C1iACM2#..240S200310-200912

BLACK,TRIM1#

main73210-44100-A0iACM2#..240E,240I,240U200105-200310

main73210-44100-C0iACM2#200105-200310

main73210-44101-A0iACM2#..240I,240U200310-200912

main73210-44101-C1iACM2#..240S200310-200912

73219STOPPER, TONGUE PLATE

main73219-33010iACM2#200105-200310

main73219-33020iACM2#200105-200310

main73219-33030iACM2#..06S200310-200706

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-44100-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main73220-44100-C0iACM2#200105-200310

BLACK,TRIM1#

main73220-44101-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main73220-44101-C1iACM2#..240S200310-200912

BLACK,TRIM1#

main73220-44110-A0iACM2#..240E,240I,240U200105-200310

main73220-44110-C0iACM2#200105-200310

main73220-44111-A0iACM2#..240I,240U200310-200912

main73220-44111-C1iACM2#..240S200310-200912

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-44030-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main73230-44030-C0iACM2#..240S200310-200912

BLACK,TRIM1#

main73230-44060-A0iACM2#..240U200310-200912

main73230-44060-C0iACM2#..240U200105-200310

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-44010-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main73240-44010-C0iACM2#200105-200310

BLACK,TRIM1#

main73240-44020-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main73240-44020-C0iACM2#..240S200310-200912

BLACK,TRIM1#

9010510523

main90105-10523

9010511036

main90105-11036

9010911048

main90109-11048

9010911056

main90109-11056

9017911010

main90179-11010

9017911018

main90179-11018

9090119040

main90901-19040

9155480612

main91554-80612

16 parts on this diagram · 3 diagrams in section
