REAR SEAT & SEAT TRACK

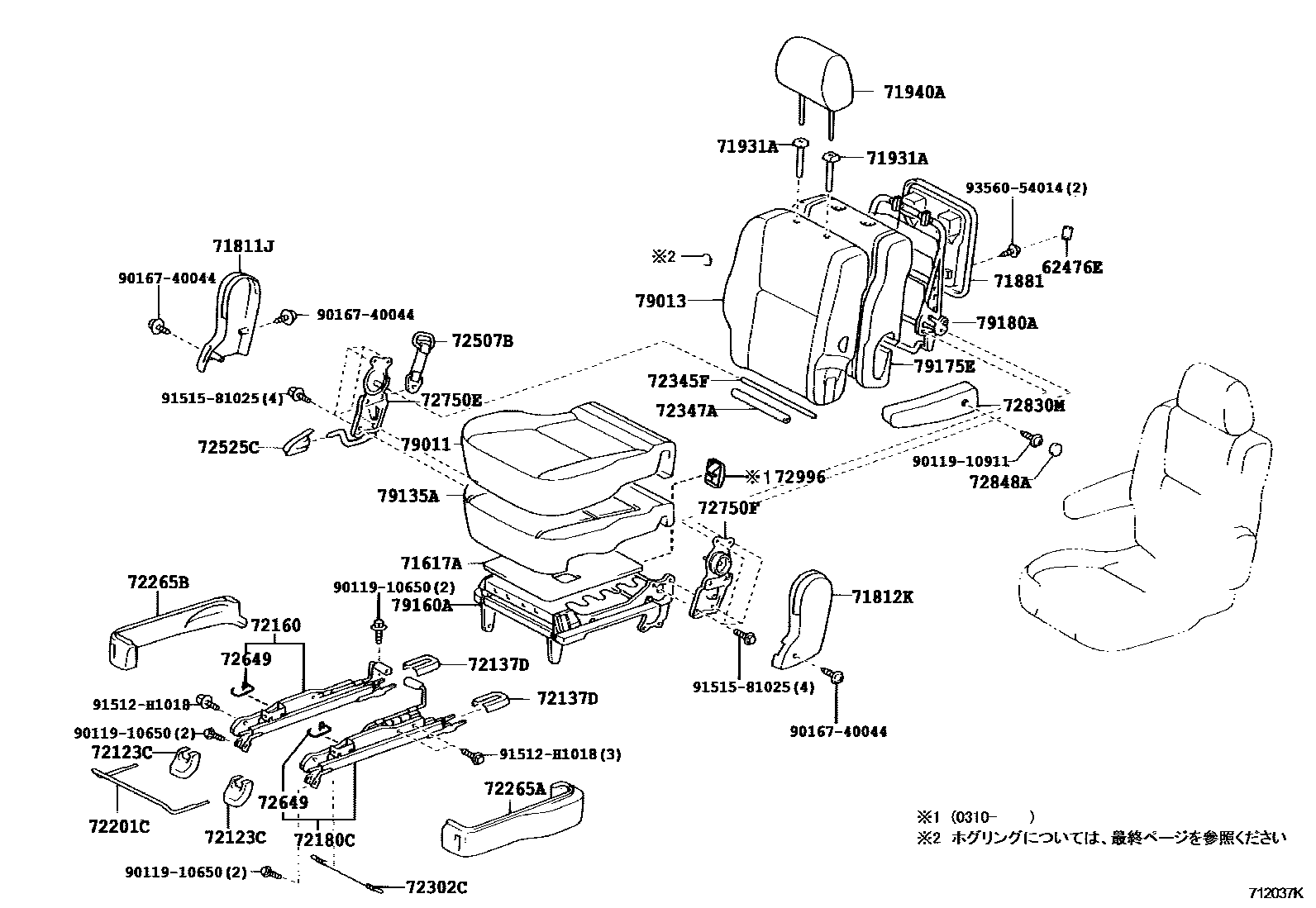

Parts diagram
62476ECAP, REAR SEAT
main62476-26010-A0×5i200105-200107
main62476-26010-C0×4i200105-200107
main71884-44010-A0×4i200107-200310
IVORY,TRIM0#
main71884-44010-C0×5i200107-200310
BLACK,TRIM1#
71617ACLOTH, REAR SEAT CUSHION UNDER
main71617-44080i200310
main71617-44090i200105-200310
main71617-44100×2i200310-200706
71811JCOVER, RECLINING ADJUSTER, RH
main71811-44060-A0i200105-200310
IVORY,TRIM0#
main71811-44060-C0i200310-200912
BLACK,TRIM1#
main71811-44190-A0i200310-200706
IVORY,TRIM0#
main71811-44190-C0i200105-200310
BLACK,TRIM1#
71812KCOVER, RECLINING ADJUSTER, LH
main71812-44060-A0i200105-200310
IVORY,TRIM0#
main71812-44060-C0i200105-200310
BLACK,TRIM1#
main71812-44150-A0i200310-200706
IVORY,TRIM0#
main71812-44150-C0i200105-200310
BLACK,TRIM1#
71881BOARD, REAR SEATBACK, RH
main71881-28040-A0i200310-200706
IVORY,TRIM0#
main71881-28040-C0i200105-200310
BLACK,TRIM1#
main71881-44080-A0i200105-200310
IVORY,TRIM0#
main71881-44080-C0i200105-200310
BLACK,TRIM1#
main71881-44130-A0i200310-200912
IVORY,TRIM0#
main71881-44130-C0i200310-200912
BLACK,TRIM1#
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-A0i200105-200109
sub71930-44020
main71930-42020-C0×2i200105-200310
sub71930-44020
main71930-52030-A0×2i200706-200912
main71930-52030-C0×2i200706-200912
main71931-42020-A0i200109-200310
main71931-42020-C0×2i200310-200912
71940AHEADREST ASSY, REAR SEAT
main71940-44180-A0×2i200105-200310
IVOLY,TRIM0#
main71940-44180-B1×2i200105-200310
MEDIUM GRAY,TRIM1#
main71940-44190-A0×2i200105-200204
IVORY,TRIM0#
main71940-44190-B0×2i200105-200204
MEDIUM GRAY,TRIM1#
main71940-44191-A0×2i200204-200206
IVORY,TRIM0#
main71940-44191-A1×2i200304-200309
main71940-44191-B0×2i200204-200206
MEDIUM GRAY,TRIM1#
main71940-44191-B1×2i200206-200310
MD.GRAY,TRIM1#
main71940-44200-B0×2i200105-200204
MEDIUM GRAY,TRIM1#
main71940-44201-B0×2i200204-200206
MEDIUM GRAY,TRIM1#
main71940-44201-B1×2i200206-200310
MD.GRAY,TRIM1#
main71940-44290-B1i200105-200206
main71940-44310-C0×2i200206-200303
main71940-44340-A0×2i200310-200912
IVORY,TRIM0#
main71940-44350-A0×2i200310-200912
IVORY,TRIM0#
main71940-44360-B2×2i200310-200912
GRAY,TRIM1#
sub71940-44361
main71940-44460-A0×2i200312
72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-44010-A0×3i200105-200310
IVORY,TRIM0#
main72123-44010-C0×3i200105-200310
BLACK,TRIM1#
72137DCOVER, REAR SEAT TRACK, RH
main72137-44030-A0×4i200310-200912
IVORY,TRIM0#
main72137-44030-C0×4i200105-200310
BLACK,TRIM1#
72160TRACK ASSY, REAR SEAT, OUTER RH
main72160-44050i200105-200310
main72180-44030i200310-200706
72180CTRACK ASSY, REAR SEAT, INNER RH
main72180-44020i200310
main72190-44030i200105-200310
72201CHANDLE SUB-ASSY, SEAT TRACK, RH
main72201-44040i200310
main72201-44060i200310-200706
72265ACOVER, SEAT TRACK UPPER RAIL, RH
main72265-44030-A0i200310-200912
IVORY,TRIM0#
main72265-44030-C0i200310-200912
BLACK,TRIM1#
main72265-44060-A0i200310-200706
IVORY,TRIM0#
main72265-44060-C0i200310-200706
BLACK,TRIM1#
72265BCOVER, SEAT TRACK UPR RAIL, RH
main72265-44040-A0i200310-200912
IVORY,TRIM0#
main72265-44040-C0i200105-200310
BLACK,TRIM1#
main72265-44050-A0i200105-200310
IVORY,TRIM0#
main72265-44050-C0i200105-200310
BLACK,TRIM1#
72302CWIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH
main72301-44010i200310-200706
72345FPIPE, RECLINING CONNECTING, RH
main72345-28100i200310-200706
main72345-44120i200105-200310
72347ACOVER, RECLINING CONNECTING HOOK
main72347-28050×2i200310-200706
72507BHANDLE SUB-ASSY, RECLINING RELEASE, RH
main72507-44020-A1i200105-200310
main72507-44020-C1i200105-200310
main72507-44030-A0i200706-200912
IVORY,TRIM0#
main72507-44030-C0i200706-200912
BLACK,TRIM1#
main72507-44060-A0i200310-200706
main72507-44060-C0i200310-200706
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
main72525-47020-A0i200105-200310
IVORY,TRIM0#
main72525-47020-C0i200310-200912
BLACK,TRIM1#
72649SPRING, REAR SEAT CUSHION SUPPORT
main72649-44010×4i200310
72750EADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH
main72730-44040i200105-200310
main72730-44070i200105-200310
main72730-44090i200607-200802
72750FADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH
main72630-44020i200105-200310
main72630-44030i200607
main72740-44080i200310-200706
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-44140-A0i200105-200310
IVOLY,TRIM0#
main72830-44140-B1i200105-200310
MEDIUM GRAY,TRIM1#
main72830-44150-A0i200105-200204
IVORY,TRIM0#
main72830-44150-B0i200105-200204
MEDIUM GRAY,TRIM1#
main72830-44151-A0i200204-200206
IVORY,TRIM0#
main72830-44151-A1i200206-200310
IVORY,TRIM0#
main72830-44151-B0i200204-200206
MEDIUM GRAY,TRIM1#
main72830-44151-B1i200206-200310
MD.GRAY,TRIM1#
main72830-44160-B0i200105-200108
MEDIUM GRAY,TRIM1#
main72830-44161-B0i200206-200303
main72830-44162-B0i200204-200206
MEDIUM GRAY,TRIM1#
main72830-44162-B1i200206-200310
MD.GRAY,TRIM1#
main72830-44250-B1i200209-200310
main72830-44310-A0i200310-200912
IVORY,TRIM0#
main72830-44320-A0i200310-200912
IVORY,TRIM0#
main72830-44330-B1i200310-200912
MD.GRAY,TRIM1#
main72830-44400-A0i200312
72830MARMREST ASSY, SEAT CENTER, RH
main72840-44060-A0i200105-200204
IVORY,TRIM0#
main72840-44060-B0i200105-200204
MEDIUM GRAY,TRIM1#
main72840-44061-A0i200204-200206
IVORY,TRIM0#
main72840-44061-A1i200206-200209
IVORY,TRIM0#
main72840-44061-B0i200204-200206
MEDIUM GRAY,TRIM1#
main72840-44061-B1i200206-200209
MD.GRAY,TRIM1#
main72840-44062-A1i200209-200310
IVORY,TRIM0#
main72840-44062-B1i200209-200310
MD.GRAY,TRIM1#
main72840-44070-B0i200105-200204
MEDIUM GRAY,TRIM1#
main72840-44071-B0i200204-200206
MEDIUM GRAY,TRIM1#
main72840-44071-B1i200206-200209
MD.GRAY,TRIM1#
main72840-44072-B1i200209-200310
MD.GRAY,TRIM1#
main72840-44130-B0i200105-200206
main72840-44180-A0i200310-200706
IVORY,TRIM0#
main72840-44190-B1i200310-200706
MD.GRAY,TRIM1#
72848ACAP, SEAT ARMREST, NO.1
main72848-28030-A0×2i200105-200310
IVORY,TRIM0#
main72848-28030-C0×2i200310-200706
BLACK,TRIM1#
72996COVER, REAR SEATBACK, RH
main72996-28160-A0i200310-200706
IVORY,TRIM0#
main72996-28160-C0i200310-200706
BLACK,TRIM1#
main72996-44050-A0i200310-200912
IVORY,TRIM0#
main72996-44050-C0i200310-200912
BLACK,TRIM1#
79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
main79021-44190-A0i200105-200310
IVOLY,TRIM0#
main79021-44190-B1i200105-200310
MEDIUM GRAY,TRIM1#
main79021-44200-A0i200105-200204
IVORY,TRIM0#
main79021-44200-B0i200105-200204
MEDIUM GRAY,TRIM1#
main79021-44201-A0i200204-200206
IVORY,TRIM0#
main79021-44201-A1i200304-200309
main79021-44201-B0i200204-200206
MEDIUM GRAY,TRIM1#
main79021-44201-B1i200206-200310
MD.GRAY,TRIM1#
main79021-44210-B0i200105-200108
MEDIUM GRAY,TRIM1#
main79021-44211-B0i200108-200204
MEDIUM GRAY,TRIM1#
main79021-44212-B0i200204-200206
MEDIUM GRAY,TRIM1#
main79021-44212-B1i200206-200310
MD.GRAY,TRIM1#
main79021-44220-A0i200105-200204
IVORY,TRIM0#
main79021-44220-B0i200105-200204
MEDIUM GRAY,TRIM1#
main79021-44221-A0i200204-200206
IVORY,TRIM0#
main79021-44221-A1i200206-200310
IVORY,TRIM0#
main79021-44221-B0i200204-200206
MEDIUM GRAY,TRIM1#
main79021-44221-B1i200206-200310
MD.GRAY,TRIM1#
main79021-44230-B0i200105-200108
MEDIUM GRAY,TRIM1#
main79021-44231-B0i200108-200204
MEDIUM GRAY,TRIM1#
main79021-44232-B0i200204-200206
MEDIUM GRAY,TRIM1#
main79021-44232-B1i200206-200310
MD.GRAY,TRIM1#
main79021-44290-B0i200310
main79021-44300-B0i200310
main79021-44320-C0i200206-200303
main79021-44340-A0i200310-200912
IVORY,TRIM0#
main79021-44350-A0i200310-200912
IVORY,TRIM0#
main79021-44360-B1i200310-200912
GRAY,TRIM1#
sub79021-44361
main79021-44370-A0i200310-200706
IVORY,TRIM0#
main79021-44380-B1i200310-200706
GRAY,TRIM1#
main79021-44430-A0i200412-200507
79013COVER SUB-ASSY, NO.1 SEATBACK, RH
main79023-44250-A0i200105-200310
IVOLY,TRIM0#
main79023-44250-B1i200105-200310
MEDIUM GRAY,TRIM1#
main79023-44260-A0i200105-200204
IVORY,TRIM0#
main79023-44260-B0i200105-200204
MEDIUM GRAY,TRIM1#
main79023-44261-A0i200204-200206
IVORY,TRIM0#
main79023-44261-A1i200206-200310
IVORY,TRIM0#
main79023-44261-B0i200204-200206
MEDIUM GRAY,TRIM1#
main79023-44261-B1i200206-200310
MD.GRAY,TRIM1#
main79023-44270-B0i200105-200108
MEDIUM GRAY,TRIM1#
main79023-44271-B0i200108-200204
MEDIUM GRAY,TRIM1#
main79023-44272-B1i200204-200310
MD.GRAY,TRIM1#
main79023-44280-A0i200105-200204
IVORY,TRIM0#
main79023-44280-B0i200105-200204
MEDIUM GRAY,TRIM1#
main79023-44281-A0i200204-200206
IVORY,TRIM0#
main79023-44281-A1i200206-200310
IVORY,TRIM0#
main79023-44281-B0i200204-200206
MEDIUM GRAY,TRIM1#
main79023-44281-B1i200206-200310
MD.GRAY,TRIM1#
main79023-44290-B0i200105-200108
MEDIUM GRAY,TRIM1#
main79023-44291-B0i200108-200204
MEDIUM GRAY,TRIM1#
main79023-44292-B0i200204-200206
MEDIUM GRAY,TRIM1#
main79023-44292-B1i200206-200310
MD.GRAY,TRIM1#
main79023-44360-B0i200209-200310
main79023-44370-B0i200310
main79023-44390-C0i200206-200303
main79023-44410-A0i200310-200912
IVORY,TRIM0#
main79023-44420-A0i200310-200912
IVORY,TRIM0#
main79023-44430-B1i200310-200912
GRAY,TRIM1#
sub79023-44431
main79023-44440-A0i200310-200706
IVORY,TRIM0#
main79023-44450-B1i200310-200706
GRAY,TRIM1#
main79023-44510-A0i200412-200507
79135APAD, NO.1 SEAT CUSHION, RH
main79135-44060i200105-200310
main79135-44120i200310-200706
main79235-44040i200310
79160ASPRING ASSY, NO.1 SEAT CUSHION, RH
main79260-44030i200105-200310
main79260-44040i200310-200706
79175EPAD, NO.1 SEATBACK, RH
main79275-44060i200105-200310
main79275-44070i200310-200706
main79275-44080i200310-200606
main79275-44081i200607-200705
main79275-44100i200706
79180ASPRING ASSY, NO.1 SEATBACK, RH
main79280-44010i200105-200310
main79280-44030i200105-200310
main79280-44040i200310-200607
main79280-44060i200607-200706
main79280-44061i200706
9011910650
main90119-10650
9011910911
main90119-10911
9016740044
main90167-40044
91512H1018
main91512-H1018
9151581025
main91515-81025
9356054014
main93560-54014

38 parts on this diagram · 6 diagrams in section
