INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

58456EBRACKET, REAR GARNISH, NO.1 RH

main58456-44010iACM2#200310

58457JBRACKET, REAR GARNISH, NO.1 LH

main58457-44010iACM2#200105-200310

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62111-44040-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main62111-44040-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62111-44040-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-44050-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main62112-44050-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62112-44050-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-44010iACM2#200105-200310

main62170-44031iACM2#..06S200310-200706

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-44010iACM2#200105-200310

main62180-44020iACM2#200310-200912

62211GARNISH, FRONT PILLAR, RH

main62210-44030-A0iACM2#..240E200105-200310

main62210-44030-B0iACM2#..240E200105-200310

main62210-44040-A1iACM2#..240I,240U200310-200912

main62210-44040-B1iACM2#..240I,240S,240U200105-200310

main62210-44040-B2iACM2#..240S200310-200912

main62211-44050-A0iACM2#..240E200105-200310

IVORY,TRIM0#

main62211-44050-B0iACM2#..240E200105-200310

LT.GRAY,TRIM1#

main62211-44070-A1iACM2#..240I,240U200105-200310

IVORY,TRIM0#

main62211-44070-B1iACM2#..240I,240S,240U200105-200310

LT. GRAY,TRIM1#

main62211-44070-B2iACM2#..240S200310-200912

LT. GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-44050-A0iACM2#..240E200105-200310

IVORY,TRIM0#

main62212-44050-B0iACM2#..240E200105-200310

LT.GRAY,TRIM1#

main62212-44070-A1iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main62212-44070-B1iACM2#..240I,240S,240U200105-200310

LT. GRAY,TRIM1#

main62212-44070-B2iACM2#..240S200310-200912

LT. GRAY,TRIM1#

main62220-44030-A0iACM2#..240E200105-200310

main62220-44030-B0iACM2#..240E200105-200310

main62220-44040-A1iACM2#..240I,240U200105-200310

main62220-44040-B1iACM2#..240I,240S,240U200105-200310

main62220-44040-B2iACM2#..240S200310-200912

62217GCLIP, FRONT PILLAR GARNISH

main62217-44010×2iACM2#200105-200310

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-44010-B0iACM2#..240S200310-200912

DK.GRAY,TRIM1#

main62225-44010-C0iACM2#200105-200310

BLACK,TRIM1#

main62225-44010-E0iACM2#..240E,240I,240U200105-200310

ORCHID BROWN,TRIM0#

main62225-44010-E1iACM2#..240I,240U200310-200912

SANDAL WOOD,TRIM0#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-44010-B0iACM2#..240S200310-200912

DK.GRAY,TRIM1#

main62226-44010-C0iACM2#200105-200310

BLACK,TRIM1#

main62226-44010-E0iACM2#..240E,240I,240U200105-200310

ORCHID BROWN,TRIM0#

main62226-44010-E1iACM2#..240I,240U200310-200912

SANDAL WOOD,TRIM0#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main62311-44040-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62311-44040-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main62312-44040-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62312-44040-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-44040-A1iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main62331-44040-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62331-44040-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-44040-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main62332-44040-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62332-44040-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-44030-A0iACM2#..240E200105-200310

IVORY,TRIM0#

main62410-44030-B0iACM2#..240E200105-200310

LT.GRAY,TRIM1#

main62410-44040-A0iACM2#..240E200105-200310

main62410-44040-B0iACM2#..240E200105-200310

main62410-44050-A1iACM2#..240I,240U200105-200310

IVORY,TRIM0#

main62410-44050-B1iACM2#..240I,240S,240U200105-200310

LT. GRAY,TRIM1#

main62410-44050-B2iACM2#..240S200310-200912

LT. GRAY,TRIM1#

main62410-44060-A1iACM2#..240I,240U200310-200912

main62410-44060-B1iACM2#..240I,240S,240U200105-200310

main62410-44060-B2iACM2#..240S200310-200912

62412GARNISH, CENTER PILLAR, LH

main62420-44030-A0iACM2#..240E200105-200310

IVORY,TRIM0#

main62420-44030-B0iACM2#..240E200105-200310

LT.GRAY,TRIM1#

main62420-44040-A0iACM2#..240E200105-200310

main62420-44040-B0iACM2#..240E200105-200310

main62420-44050-A1iACM2#..240I,240U200105-200310

IVORY,TRIM0#

main62420-44050-B1iACM2#..240I,240S,240U200105-200310

LT. GRAY,TRIM1#

main62420-44050-B2iACM2#..240S200310-200912

LT. GRAY,TRIM1#

main62420-44060-A1iACM2#..240I,240U200310-200912

main62420-44060-B1iACM2#..240I,240S,240U200105-200310

main62420-44060-B2iACM2#..240S200310-200912

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main62413-44040-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62413-44040-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main62414-44040-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main62414-44040-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-06165×2iACM2#200105-200310

main90467-06165-C0×2iACM2#200904-200912

BLACK

62471AGARNISH, ROOF SIDE, INNER RH

main62471-44050-A0iACM2#..240E200105-200310

IVORY,TRIM0#

main62471-44050-B0iACM2#..240E200105-200310

LT.GRAY,TRIM1#

main62471-44060-A1iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main62471-44060-B1iACM2#..240I,240S,240U200105-200310

LT. GRAY,TRIM1#

main62471-44060-B2iACM2#..240S200310-200912

LT. GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-44050-A0iACM2#..240E200105-200310

IVORY,TRIM0#

main62472-44050-B0iACM2#..240E200105-200310

LT.GRAY,TRIM1#

main62472-44060-A1iACM2#..240I,240U200105-200310

IVORY,TRIM0#

main62472-44060-B1iACM2#..240I,240S,240U200105-200310

LT. GRAY,TRIM1#

main62472-44060-B2iACM2#..240S200310-200912

LT. GRAY,TRIM1#

62619APLATE, SIDE TRIM SET

main62619-44010×2iACM2#200105-200310

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-44030-A0iACM2#..240U200310-200912

main67911-44030-B0iACM2#..240S,240U200105-200310

main67911-44030-B1iACM2#..240S200310-200912

main67911-44040-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main67911-44040-B0iACM2#..240E,240I,240U200105-200310

MD.GRAY,TRIM1#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-44030-A0iACM2#..240U200105-200310

main67912-44030-B0iACM2#..240I200206-200303

main67912-44030-B1iACM2#..240S200310-200912

main67912-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67912-44040-B0iACM2#..240E,240I,240U200105-200310

MD.GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-44020-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67913-44020-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67913-44020-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-44020-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67914-44020-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67914-44020-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-44030-A0iACM2#..240U200310-200912

main67915-44030-B0iACM2#..240I200201-200206

main67915-44030-B1iACM2#..240S200310-200912

main67915-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67915-44040-B0iACM2#..240E,240I,240U200105-200310

MD.GRAY,TRIM1#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-44030-A0iACM2#..240U200105-200310

main67916-44030-B0iACM2#..240S,240U200105-200310

main67916-44030-B1iACM2#..240S200310-200912

main67916-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67916-44040-B0iACM2#..240E,240I,240U200105-200310

MD.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-44030-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67917-44030-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67917-44030-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-44020-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67918-44020-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67918-44020-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

67935PLATE, BACK DOOR SCUFF

main67935-44020-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main67935-44020-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67935-44020-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

7104

6777132120WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32120

9011906869

main90119-06869

9018905096

main90189-05096

9046708179

main90467-08179

9046709182

main90467-09182

9046710161

main90467-10161

9046710192

main90467-10192

91621J0612

main91621-J0612

9356855016

main93568-55016

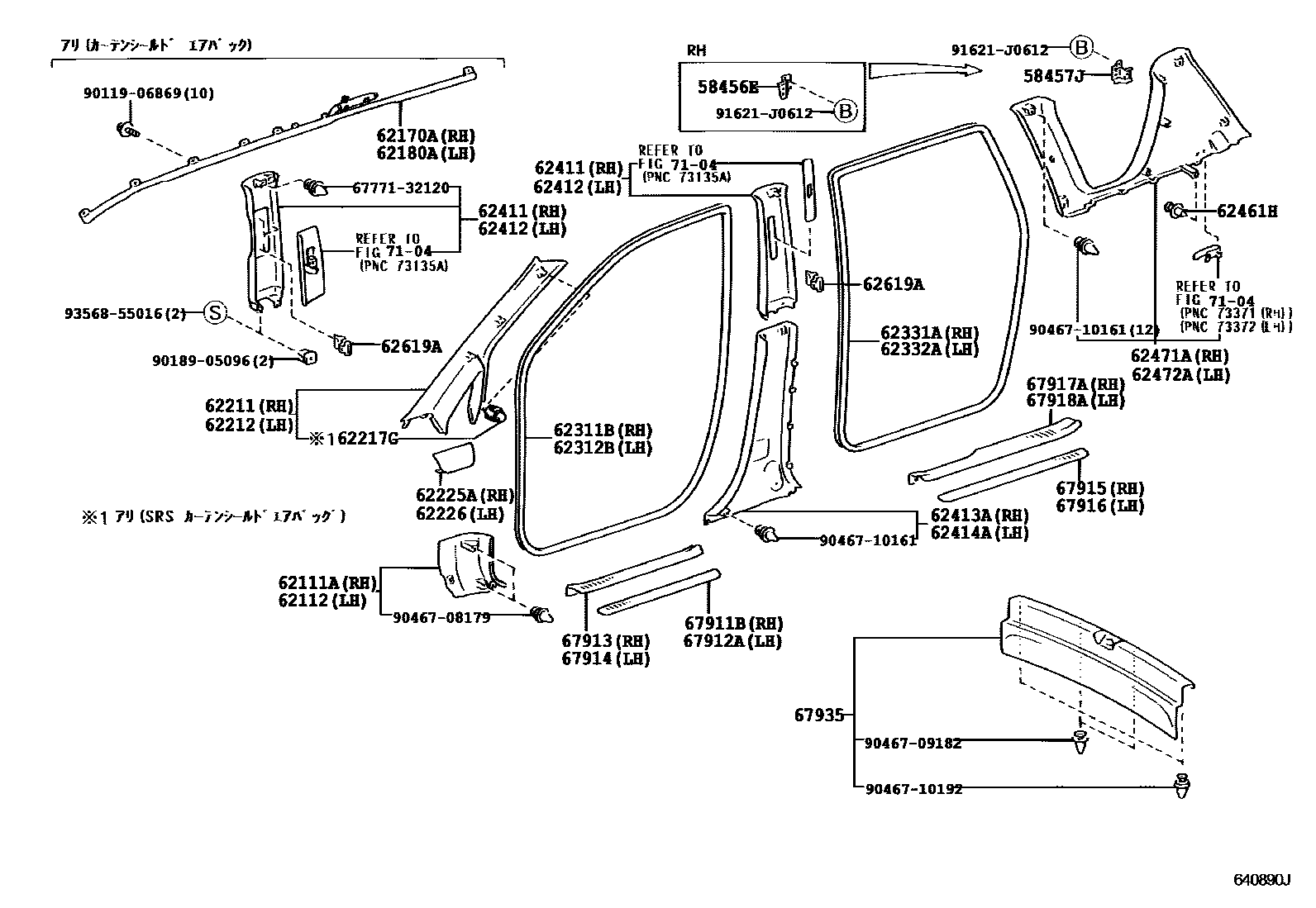

42 parts on this diagram · 1 diagram in section
