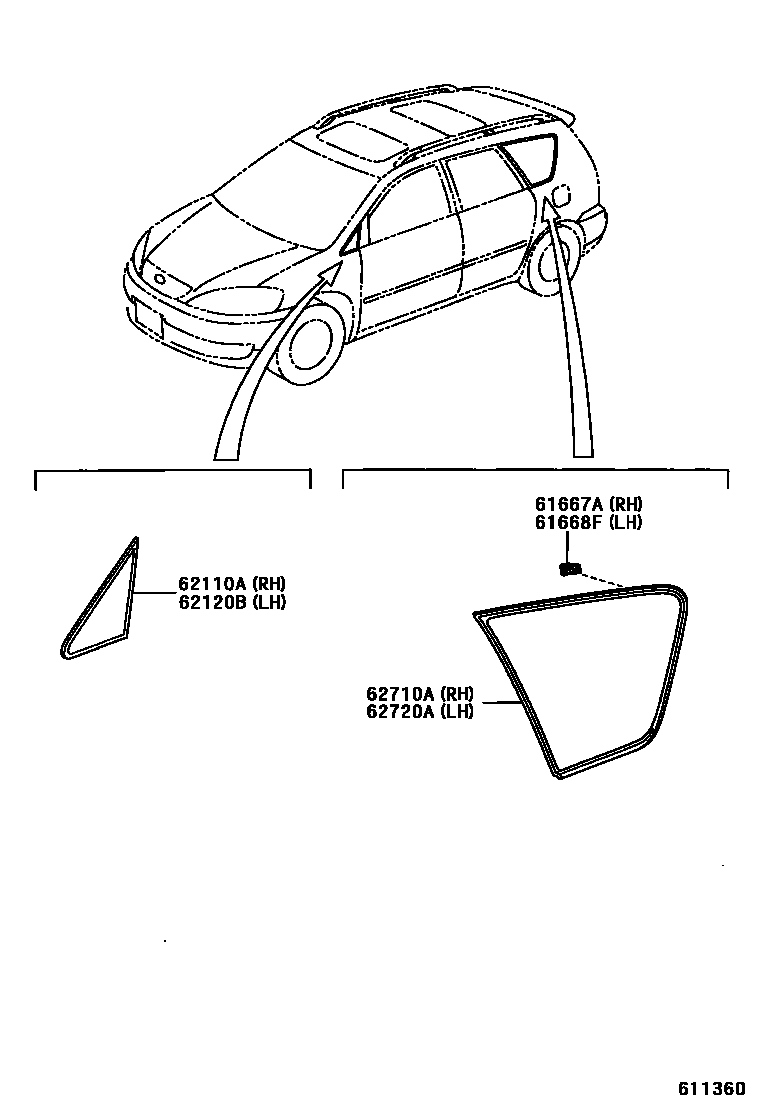

QUARTER WINDOW

61667ASPACER QUARTER PANEL, NO.1

main61667-14030iACM2#..06S200310-200706

61668FSPACER, QUARTER PANEL, NO.2

main61667-14030iACM2#200105-200310

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-44050iACM2#200105-200310

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-44050iACM2#200105-200310

62710AWINDOW ASSY, QUARTER, RH

main62710-44330iACM2#..06S200310-200706

main62710-44350iACM2#..240E200105-200310

62720AWINDOW ASSY, QUARTER, LH

main62720-44290iACM2#..240I,240S,240U200105-200310

main62720-44300iACM2#..07S200310

main62720-44320iACM2#..240E200105-200310

main62720-44330iACM2#..06S200310-200706

main62720-44340iACM2#..240E200105-200310

6 parts on this diagram · 1 diagram in section
