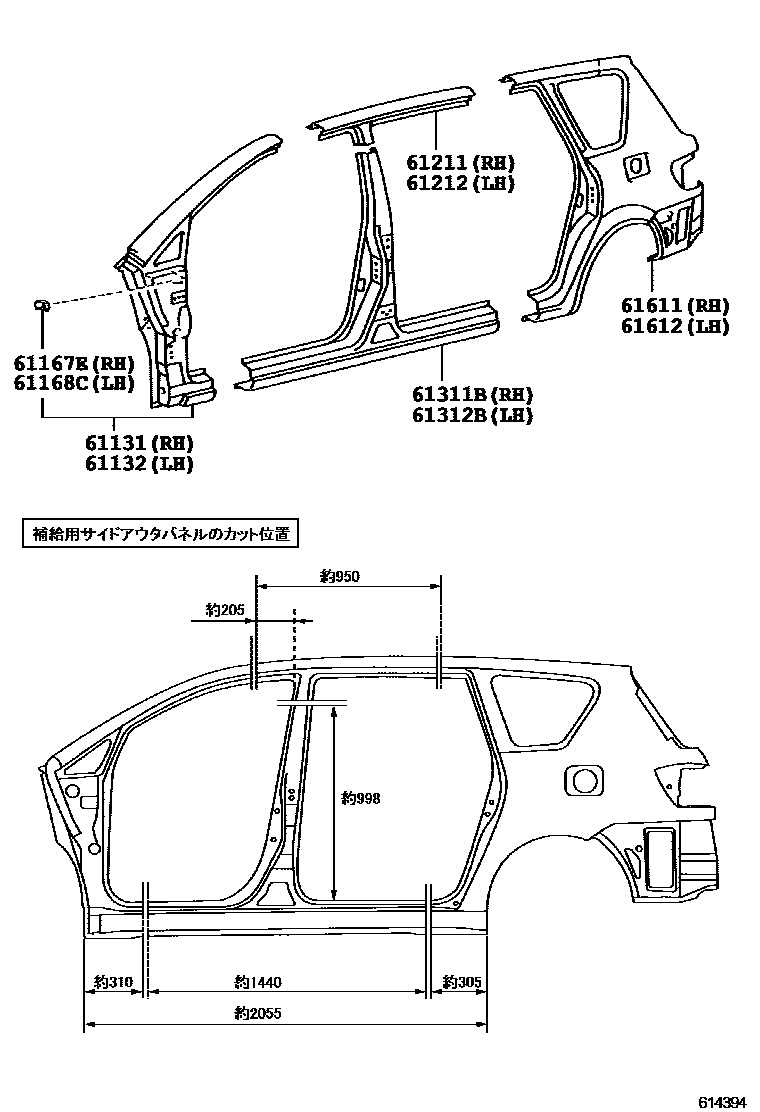

SIDE MEMBER

0001 1������� 0002 1�������

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-44080iACM2#..240E,240I,240U200105-200310

main61131-44090iACM2#..240S200105-200206

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-44080iACM2#..240E,240I,240U200105-200310

main61132-44090iACM2#..240S200105-200206

61167EBRACKET, NO.6 PILLAR OUTER

main61168-44010iACM2#200105-200310

61168CBRACKET, NO.6 PILLAR OUTER

main61168-44010iACM2#200105-200310

61211RAIL, ROOF SIDE, OUTER RH

main61211-44080iACM2#200105-200310

61212RAIL, ROOF SIDE, OUTER LH

main61212-44060iACM2#200105-200310

61311BPILLAR, CENTER BODY, OUTER RH

main61311-44070iACM2#..240E,240I,240U200105-200310

main61311-44080iACM2#..240S200105-200206

61312BPILLAR, CENTER BODY, OUTER LH

main61312-44070iACM2#..240E,240I,240U200105-200310

main61312-44080iACM2#..06S200310-200706

61611PANEL, QUARTER, RH

main61611-44070iACM2#..240E,240I,240U200105-200310

main61611-44080iACM2#..06S200310-200706

61612PANEL, QUARTER, LH

main61612-44070iACM2#..240E,240I,240U200105-200310

main61612-44080iACM2#..06S200310-200706

10 parts on this diagram · 2 diagrams in section
