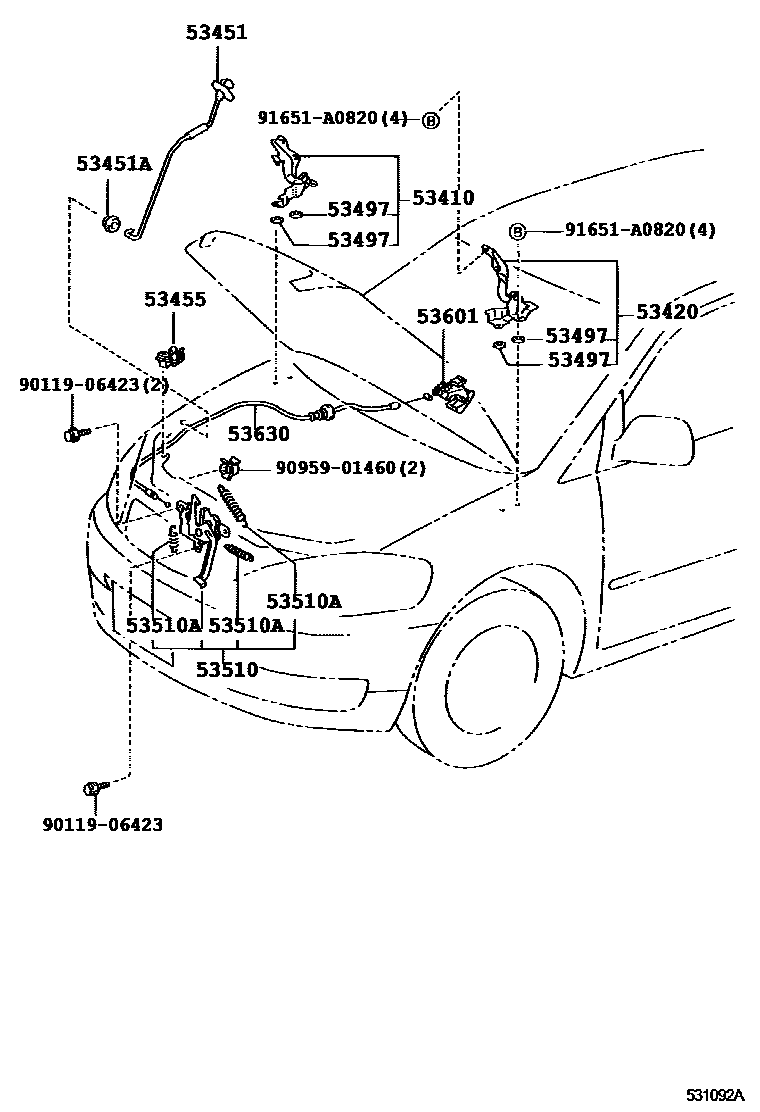

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-44050iACM2#200105-200310

main53410-44060iACM2#200105-200310

53420HINGE ASSY, HOOD, LH

main53420-44050iACM2#200105-200310

main53420-44060iACM2#..06S200310-200706

53451ROD, HOOD SUPPORT

main53440-44010iACM2#200105-200310

main53440-44020iACM2#..06S200310-200706

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iACM2#200105-200310

53455CLAMP, HOOD SUPPORT ROD

main53455-28020iACM2#200105-200310

53497PAD, HOOD HINGE, NO.1

main53497-12050×4iACM2#200105-200310

main53497-20070×4iACM2#200105-200310

main53497-42010×4iACM2#200310

53510LOCK ASSY, HOOD

main53510-44050iACM2#200105-200110

main53510-44051iACM2#200110-200310

main53510-44110iACM2#..06S200310-200706

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iACM2#200105-200310

main90506-12063iACM2#200105-200310

main90506-16077iACM2#200105-200310

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iACM2#..240S200105-200310

BLACK,TRIM0#,1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-44060iACM2#200105-200310

main53630-44090iACM2#200310

9011906423

main90119-06423

9095901460

main90959-01460

91651A0820

main91651-A0820

13 parts on this diagram · 1 diagram in section
