REAR BUMPER & BUMPER STAY

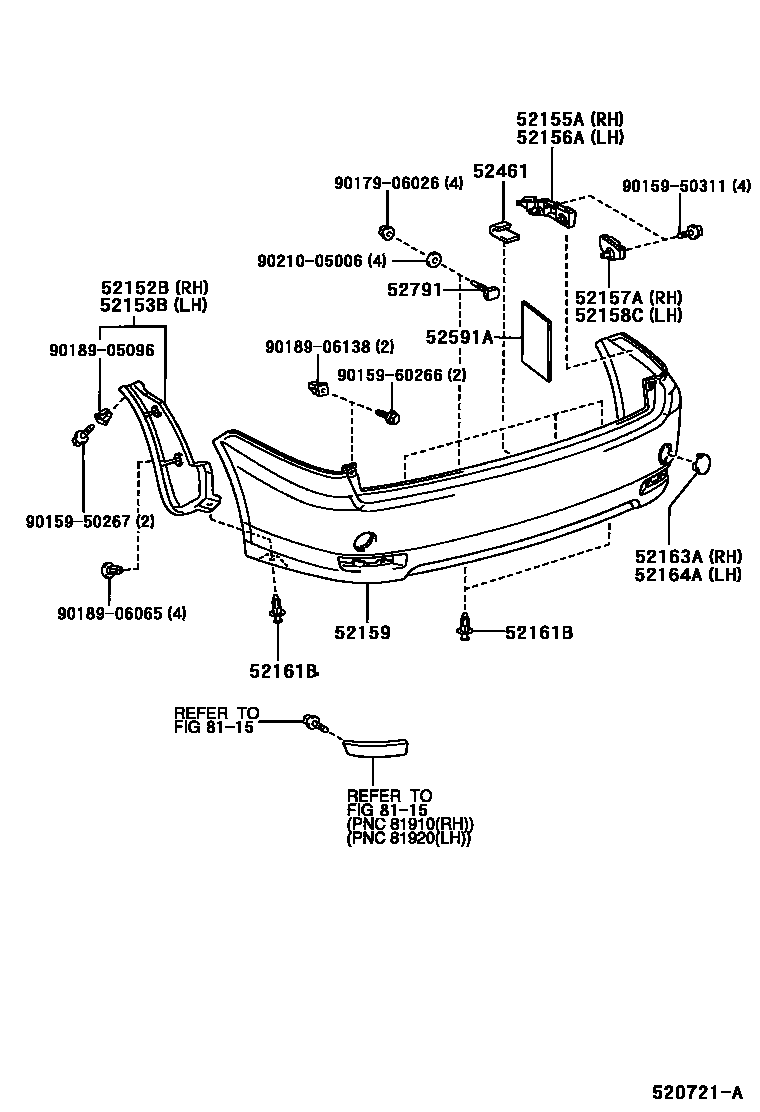

Parts diagram
52152BEXTENSION, REAR BUMPER, RH
main52152-44050i200105-200310
main52152-44060i200206-200303
main52152-44080i200310
main52152-44090i200310
52153BEXTENSION, REAR BUMPER, LH
main52153-44050i200105-200310
main52153-44060i200105-200206
main52153-44080i200310
main52153-44090i200310
52155ASUPPORT, REAR BUMPER SIDE, RH
main52155-44050i200105-200310
main52155-44051i200606
52156ASUPPORT, REAR BUMPER SIDE, LH
main52156-44020i200310-200605
main52156-44021i200606
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
main52157-28020i200606
main52157-44010i200105-200310
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
main52158-28010i200606
main52158-44010i200310-200605
52159COVER, REAR BUMPER
main52159-44170-A0i200110-200310
SUPER WHITE 2,040
sub52159-44903
sub52159-44925
main52159-44170-A1i200105-200310
WHITE PM.,042
sub52159-44903
sub52159-44925
main52159-44170-B0i200105-200310
SILVER ME.,1C0
sub52159-44903
sub52159-44925
main52159-44170-B1i200105-200310
DARK GRAY M.M.,1E2
sub52159-44903
sub52159-44925
main52159-44170-C0i200201-200206
sub52159-44903
sub52159-44925
main52159-44170-D0i200105-200310
RED MC.,3M8
sub52159-44903
sub52159-44925
main52159-44170-D1i200105-200310
LT.ROSE M.M.,3Q1
sub52159-44903
sub52159-44925
main52159-44170-F0i200105-200310
CHAMPAGNE M.M.,587
sub52159-44903
sub52159-44925
main52159-44170-H0i200105-200310
AQUA ME.,771
sub52159-44903
sub52159-44925
main52159-44170-J0i200105-200310
DK.BLUE M.M.,8P4
sub52159-44903
sub52159-44925
main52159-44180-A0i200105-200310
sub52159-44908
main52159-44180-A1i200110-200310
sub52159-44908
main52159-44180-B0i200105-200310
sub52159-44908
main52159-44180-B1i200105-200310
sub52159-44908
main52159-44180-C0i200201-200206
sub52159-44908
main52159-44180-D0i200105-200310
sub52159-44908
main52159-44180-D1i200105-200310
sub52159-44908
main52159-44180-F0i200105-200310
sub52159-44908
main52159-44180-H0i200105-200310
sub52159-44908
main52159-44180-J0i200105-200310
sub52159-44908
main52159-44190-A0i200105-200206
sub52159-44924
main52159-44190-B0i200105-200206
sub52159-44924
main52159-44190-B1i200206-200310
sub52159-44924
main52159-44190-C0i200304-200309
sub52159-44924
main52159-44190-D0i200209-200310
sub52159-44924
main52159-44190-J0i200105-200206
sub52159-44924
main52159-44200-A0i200105-200206
sub52159-44907
main52159-44200-B0i200206-200310
sub52159-44907
main52159-44200-B1i200206-200310
sub52159-44907
main52159-44200-D0i200209-200310
sub52159-44907
main52159-44200-J0i200206-200310
sub52159-44907
main52159-44240-A1i200310-200912
sub52159-44906
main52159-44240-B0i200310-200912
sub52159-44906
main52159-44240-C0i200310-200912
sub52159-44906
main52159-44240-D0i200310-200912
sub52159-44906
main52159-44240-F0i200310-200912
sub52159-44906
main52159-44240-J0i200310-200912
sub52159-44906
main52159-44240-J1i200310-200912
sub52159-44906
main52159-44250-A0i200310
sub52159-44927
main52159-44250-B0i200310-200912
sub52159-44927
main52159-44250-C0i200310-200912
sub52159-44927
main52159-44250-D0i200310-200912
sub52159-44927
main52159-44250-F0i200310-200912
sub52159-44927
main52159-44250-J0i200310-200912
sub52159-44927
main52159-44250-J1i200310-200912
sub52159-44927
main52159-44260-A0i200310
sub52159-44928
main52159-44260-B0i200310-200912
sub52159-44928
main52159-44260-C0i200310-200912
sub52159-44928
main52159-44260-D0i200310-200912
sub52159-44928
main52159-44260-F0i200310-200912
sub52159-44928
main52159-44260-J0i200310-200912
sub52159-44928
main52159-44260-J1i200310-200912
sub52159-44928
main52159-44270-A0i200310-200912
sub52159-44919
main52159-44270-A1i200412-200507
sub52159-44919
main52159-44270-B0i200310-200912
sub52159-44919
main52159-44270-C0i200310-200912
sub52159-44919
main52159-44270-D0i200310-200912
sub52159-44919
main52159-44270-D1i200412-200507
sub52159-44919
main52159-44270-E0i200706-200912
sub52159-44919
main52159-44270-F0i200310-200912
sub52159-44919
main52159-44280-A0i200310-200912
sub52159-44929
main52159-44280-A1i200412-200507
sub52159-44929
main52159-44280-B0i200310-200912
sub52159-44929
main52159-44280-C0i200310-200912
sub52159-44929
main52159-44280-D0i200310-200912
sub52159-44929
main52159-44280-D1i200412-200507
sub52159-44929
main52159-44280-E0i200706-200912
sub52159-44929
main52159-44280-F0i200310-200912
sub52159-44929
main52159-44290-A0i200310-200912
sub52159-44930
main52159-44290-A1i200412-200507
sub52159-44930
main52159-44290-B0i200310-200912
sub52159-44930
main52159-44290-C0i200310-200912
sub52159-44930
main52159-44290-D0i200310-200912
sub52159-44930
main52159-44290-D1i200412-200507
sub52159-44930
main52159-44290-E0i200706-200912
sub52159-44930
main52159-44290-F0i200310-200912
sub52159-44930
52161BPIECE, REAR BUMPER
main52161-16010×4i200310
52163APLATE, REAR BUMPER, RH
main52163-44010-A0i200105-200110
SUPER WHITE 2,040
sub52163-44900
main52163-44010-A1i200105-200310
WHITE PM.,042
sub52163-44900
main52163-44010-B0i200105-200310
SILVER ME.,1C0
sub52163-44900
main52163-44010-B1i200105-200310
DARK GRAY M.M.,1E2
sub52163-44900
main52163-44010-C0i200304-200309
sub52163-44900
main52163-44010-D0i200105-200310
RED MC.,3M8
sub52163-44900
main52163-44010-D1i200105-200310
LT.ROSE M.M.,3Q1
sub52163-44900
main52163-44010-D2i200304-200309
sub52163-44900
main52163-44010-F0i200105-200310
CHAMPAGNE M.M.,587
sub52163-44900
main52163-44010-H0i200105-200310
AQUA ME.,771
sub52163-44900
main52163-44010-J0i200105-200310
DK.BLUE M.M.,8P4
sub52163-44900
main52163-44020-A1i200310-200912
WHITE PM.,042
sub52163-44901
main52163-44020-B0i200310-200912
SILVER ME.,1D4
sub52163-44901
main52163-44020-C0i200310-200912
BLACK,202
sub52163-44901
main52163-44020-D0i200310-200912
DK. RED M.M.,3Q3
sub52163-44901
main52163-44020-F0i200310-200912
YELLOW M.M.,580
sub52163-44901
main52163-44020-J0i200310-200912
LT.PURPLISH BLUE M.M.,8K2
sub52163-44901
main52163-44020-J1i200310-200912
BLUE MC.,8M6
sub52163-44901
52164APLATE, REAR BUMPER, LH
main52164-44010-A0i200105-200110
SUPER WHITE 2,040
sub52164-44900
main52164-44010-A1i200105-200310
WHITE PM.,042
sub52164-44900
main52164-44010-B0i200105-200310
SILVER ME.,1C0
sub52164-44900
main52164-44010-B1i200105-200310
DARK GRAY M.M.,1E2
sub52164-44900
main52164-44010-C0i200304-200309
sub52164-44900
main52164-44010-D0i200105-200310
RED MC.,3M8
sub52164-44900
main52164-44010-D1i200105-200310
LT.ROSE M.M.,3Q1
sub52164-44900
main52164-44010-D2i200310
sub52164-44900
main52164-44010-F0i200105-200310
CHAMPAGNE M.M.,587
sub52164-44900
main52164-44010-H0i200105-200310
AQUA ME.,771
sub52164-44900
main52164-44010-J0i200105-200310
DK.BLUE M.M.,8P4
sub52164-44900
main52164-44020-A1i200310-200912
sub52164-44901
main52164-44020-B0i200310-200912
sub52164-44901
main52164-44020-C0i200310-200912
sub52164-44901
main52164-44020-D0i200310-200912
sub52164-44901
main52164-44020-F0i200310-200912
sub52164-44901
main52164-44020-J0i200310-200912
sub52164-44901
main52164-44020-J1i200310-200912
sub52164-44901
main52164-44030-A0i200310-200912
sub52164-44902
main52164-44030-A1i200412-200507
sub52164-44902
main52164-44030-B0i200310-200912
sub52164-44902
main52164-44030-C0i200310-200912
sub52164-44902
main52164-44030-D0i200310-200912
sub52164-44902
main52164-44030-D1i200412-200507
sub52164-44902
main52164-44030-E0i200706-200912
sub52164-44902
main52164-44030-F0i200310-200912
sub52164-44902
52461PAD, REAR BUMPER, CENTER
main52461-44010i200310
52591ASEAL, REAR BUMPER
main52591-44010×2i200310
52791BOLT, BUMPER MOULDING SET, NO.1
main52791-28010×2i200410
main52791-44030×4i200105-200310
8115
9015950267
main90159-50267
9015950311
main90159-50311
9015960266
main90159-60266
9017906026
main90179-06026
9018905096
main90189-05096
9018906065
main90189-06065
9018906138
main90189-06138
9021005006
main90210-05006

22 parts on this diagram · 3 diagrams in section
